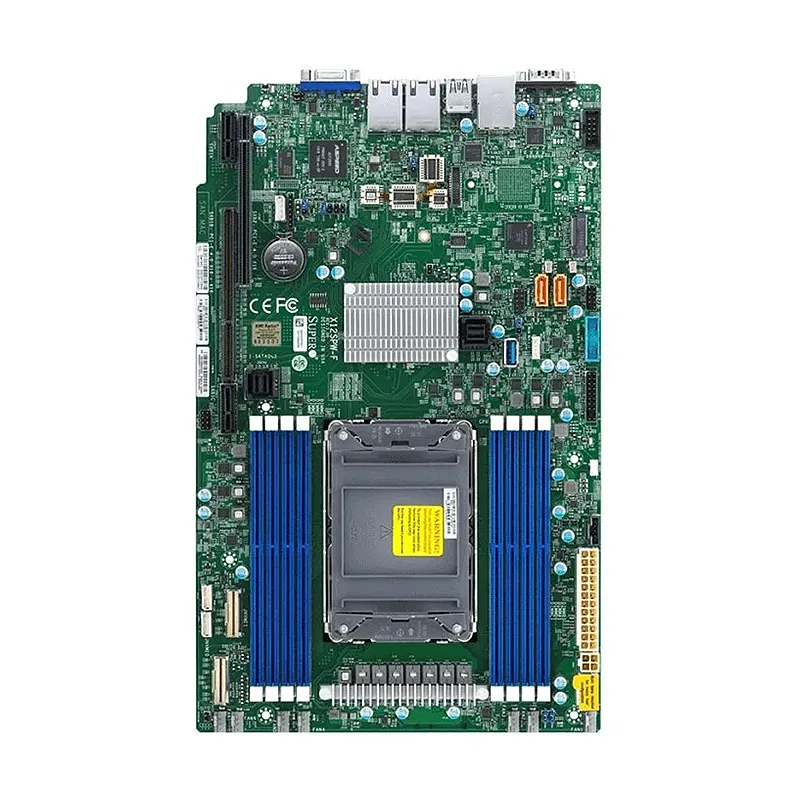

Supermicro MBD-X12SPW-F

* NOTE: Image may not exactly match the product

Supermicro MBD-X12SPW-F

The Supermicro MBD-X12SPW-F is a high-performance workstation motherboard featuring the Intel C621A chipset and LGA 4189 socket for 3rd Gen Intel Xeon Scalable processors. Key features include support for up to 2TB of DDR4-3200 ECC memory across 8 DIMM slots, dual 10GbE LAN ports, PCIe 4.0 expansion slots, and comprehensive I/O connectivity including USB 3.2 and SATA 3.0 ports. The board delivers enterprise-grade reliability with ECC memory support, advanced thermal management, and robust power delivery systems. Its unique selling points include exceptional scalability for demanding workloads, professional-grade networking capabilities, and Supermicro’s proven track record in server-class hardware, making it ideal for high-performance computing, content creation, and mission-critical applications requiring maximum stability and performance.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
BIOS FeaturesACPI 6.0RTC (Real Time Clock) WakeupSMBIOS 3.0 or later
Graphics1 ASPEED AST2600 BMC port(s)
TPM1 TPM Header
Network ControllersDual LAN with 1GbE with Intel I210

Product SKUs

  • MBD-X12SPW-F

Physical Stats

  • Form Factor
    Proprietary WIO
  • Dimension
    8″ x 13″ (20.32cm x 33.02cm)

Processor

  • CPU
    3rd Gen Intel Xeon Scalable processors
    Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  • Core
    Up to 40 cores

System Memory

  • Memory Capacity
    8 DIMM slots
    Up to 2TB Intel Optane Persistent Memory 200 Series
    Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s
  • Memory Type
    ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM 3DS: 128GB, 256GB
    LRDIMM: 64GB, 128GB
    RDIMM: 8GB, 16GB, 32GB, 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C621A
  • SATA
    Intel C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2600 BMC
  • Graphics
    1 ASPEED AST2600 BMC port(s)
  • Network Controllers
    Dual LAN with 1GbE with Intel I210

Input / Output

  • SATA
    10 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 Gigabit Ethernet LAN ports
  • USB
    4 USB 2.0 port(s) (2 via header; 2 rear)
    5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 4.0 x16 Right Riser Slot,
    1 PCIe 4.0 x32 Left Riser Slot,
    2 PCIe 4.0 x8 SlimSAS connector
  • M.2
    M.2 Interface: PCIe 3.0 x4; SATA
    Form Factor: 2280, 22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI
  • BIOS Features
    ACPI 6.0
    RTC (Real Time Clock) Wakeup
    SMBIOS 3.0 or later

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
Brand

Supermicro
BIOS Features

ACPI 6.0RTC (Real Time Clock) WakeupSMBIOS 3.0 or later
Graphics

1 ASPEED AST2600 BMC port(s)
TPM

1 TPM Header
Network Controllers

Dual LAN with 1GbE with Intel I210
M.2

22110Key: M-Key, M.2 Interface: PCIe 3.0 x4; SATAForm Factor: 2280
Chipset

Intel C621A
DIMM Sizes

128GBRDIMM: 8GB, 16GB, 256GBLRDIMM: 64GB, 32GB, 64GB, LRDIMM 3DS: 128GB
BIOS Type

AMI UEFI
LAN

2 RJ45 Gigabit Ethernet LAN ports
Video Output

1 VGA port(s)
DOM

DOM
Dimension

8" x 13" (20.32cm x 33.02cm)
PCIe

1 PCIe 4.0 x16 Right Riser Slot, 1 PCIe 4.0 x32 Left Riser Slot, 2 PCIe 4.0 x8 SlimSAS connector
USB

4 USB 2.0 port(s) (2 via header; 2 rear)5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Form Factor

Proprietary WIO
Memory Type

DDR4 LRDIMM (3DS), ECC, RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2600 BMC
Memory Voltage

1.2V
CPU

3rd Gen Intel Xeon Scalable processorsSingle Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Serial Port

2 COM Port(s) (1 header; 1 rear)
SATA

10 SATA3 (6Gbps) port(s)
Memory Capacity

8 DIMM slotsUp to 2TB Intel Optane Persistent Memory 200 SeriesUp to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM
Error Detection

Corrects single-bit errors
Core

Up to 40 cores
