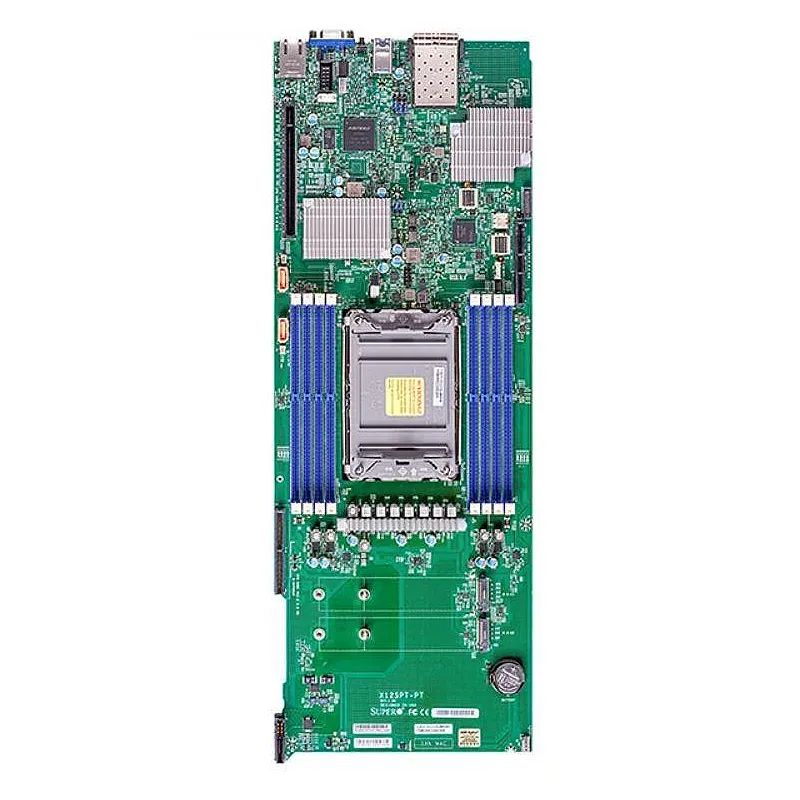

Supermicro MBD-X12SPT-PT

* NOTE: Image may not exactly match the product

Supermicro MBD-X12SPT-PT

The Supermicro MBD-X12SPT-PT is a high-performance server motherboard featuring the Intel C621A chipset and LGA 4189 socket for 3rd Gen Intel Xeon Scalable processors. Key features include support for up to 2TB of DDR4-3200 ECC memory across 8 DIMM slots, dual 10GbE LAN ports, comprehensive PCIe 4.0 expansion with multiple x16 and x8 slots, and enterprise-grade storage connectivity with SATA 3.0 and M.2 NVMe support. The board offers exceptional reliability with ECC memory support, IPMI 2.0 remote management, and robust power delivery systems. Its compact ATX form factor makes it ideal for workstations, edge servers, and small-to-medium enterprise applications requiring professional-grade performance, scalability, and 24/7 operational reliability at a competitive price point.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
ApplicationServer
Form FactorProprietary
ChipsetIntel C621A
Products StatusNew

Product SKUs

  • MBD-X12SPT-PT

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    6.8″ x 18.86″ (17.27cm x 47.9cm)

Processor

  • CPU
    3rd Gen Intel Xeon Scalable processors
    Single Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
  • Core
    Up to 40 cores

System Memory

  • Memory Capacity
    8 DIMM slots
    Up to 2TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
    Up to 2TB ECC LRDIMM, DDR4-3200MT/s; Up to 2TB ECC RDIMM, DDR4-3200MT/s
  • Memory Type
    3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM
  • DIMM Sizes
    8GB, 16GB, 32GB, 64GB, 128GB, 256GB
    LRDIMM: 32GB, 64GB, 128GB, 256GB
    RDIMM: 32GB, 64GB, 128GB, 256GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C621A
  • SATA
    Intel C621A controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2600 BMC
  • Graphics
    1 ASPEED AST2600 BMC port(s)
  • Network Controllers
    Dual LAN with 10G SFP+

Input / Output

  • SATA
    6 SATA3 (6Gbps) port(s)
  • LAN
    2 10G SFP+ LAN ports
  • USB
    2 USB 3.2 Gen1 port(s) (2 rear)
  • Video Output
    1 VGA port(s)
  • Serial Port
    1 COM Port(s) (1 header)
  • DOM
    2 Super DOM (Disk on Module) port with build power
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 4.0 x16 Left Riser Slot,
    1 PCIe 4.0 x16 Right Riser Slot
  • M.2
    M.2 Interface: 2 PCIe 4.0 x4
    Form Factor: 2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI

Management

  • Power Configurations
    ACPI Power Management
Brand

Supermicro
Application

Server
Form Factor

Proprietary
Chipset

Intel C621A
Products Status

New
Socket

LGA-4189
USB

2 USB 3.2 Gen1 port(s) (2 rear)
BIOS Type

AMI UEFI
Memory Capacity

8 DIMM slotsUp to 2TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s, DDR4-3200MT/s; Up to 2TB ECC RDIMM, DDR4-3200MT/sUp to 2TB ECC LRDIMM
Memory Type

3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM
Memory Voltage

1.2V
DIMM Sizes

128GB, 16GB, 256GB, 256GBLRDIMM: 32GB, 256GBRDIMM: 32GB, 32GB, 64GB, 8GB
CPU

3rd Gen Intel Xeon Scalable processors
Error Detection

Corrects single-bit errors
SATA

6 SATA3 (6Gbps) port(s)
Dimension

6.8" x 18.86" (17.27cm x 47.9cm)
Network Controllers

Dual LAN with 10G SFP+
M.2

M.2 Interface: 2 PCIe 4.0 x4Form Factor: 2280/22110Key: M-Key
IPMI

ASPEED AST2600 BMC
PCIe

1 PCIe 4.0 x16 Left Riser Slot, 1 PCIe 4.0 x16 Right Riser Slot
TPM

1 TPM Header
Cores

Up to 40 cores
Video Output

1 VGA port(s)
LAN

2 10G SFP+ LAN ports
Serial Port

1 COM Port(s) (1 header)
Graphics

1 ASPEED AST2600 BMC port(s)
Hardware

Trusted Platform Module (TPM) 2.0
