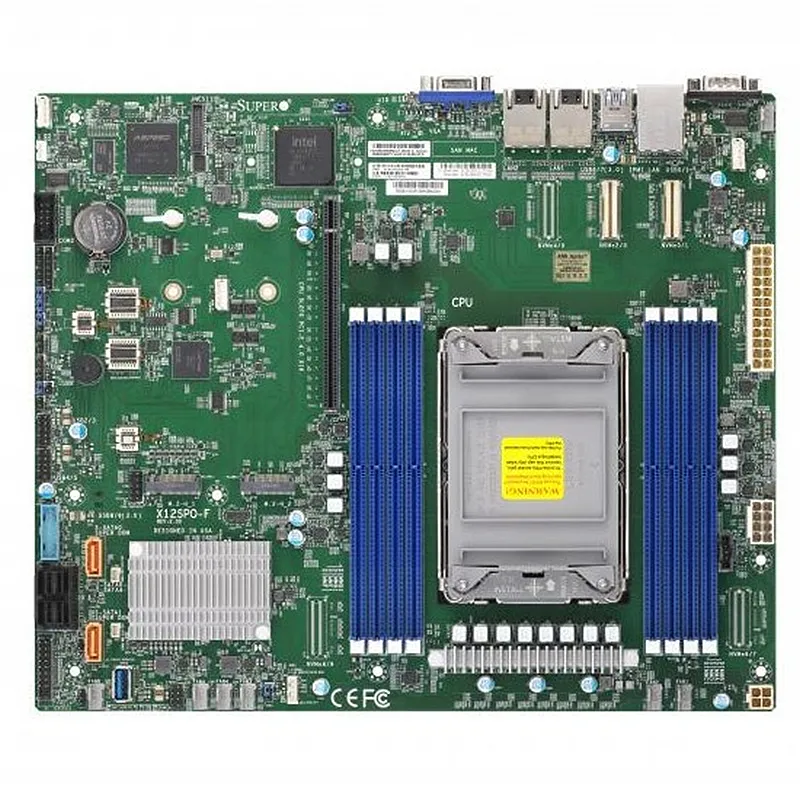

Supermicro MBD-X12SPO-F

* NOTE: Image may not exactly match the product

Supermicro MBD-X12SPO-F

The Supermicro MBD-X12SPO-F is a high-performance single-socket motherboard designed for Intel 3rd Gen Xeon Scalable processors, delivering enterprise-grade computing power in a compact form factor. This ATX motherboard features 8 DDR4 DIMM slots supporting up to 2TB of memory, dual 10GbE LAN ports for high-speed networking, and comprehensive PCIe 4.0 expansion capabilities with multiple x16 and x8 slots. Key advantages include IPMI 2.0 with dedicated management LAN for remote monitoring, dual M.2 slots for NVMe storage, and robust power delivery systems ensuring stable operation under heavy workloads. The board’s unique selling points are its exceptional memory capacity, integrated high-speed networking, advanced thermal management, and Supermicro’s renowned reliability – making it ideal for data centers, virtualization environments, high-performance computing applications, and enterprise workstations requiring maximum performance, scalability, and 24/7 operational reliability.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
ApplicationServer
Form FactorATX
ChipsetIntel C621A
Products StatusNew

Product SKUs

  • MBD-X12SPO-F

Physical Stats

  • Form Factor
    ATX
  • Dimension
    12″ x 10″ (30.48cm x 25.4cm)

Processor

  • CPU
    3rd Gen Intel Xeon Scalable processors
    Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  • Core
    Up to 40 cores

System Memory

  • Memory Capacity
    8 DIMM slots
    Up to 2TB Intel Optane Persistent Memory 200 Series
    Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s
  • Memory Type
    3200/2933/2666 MT/s ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    8GB, 16GB, 32GB, 64GB, 128GB, 256GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C621A
  • SATA
    Intel C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2600 BMC
  • Graphics
    1 ASPEED AST2600 BMC port(s)
  • Network Controllers
    Dual LAN with Intel i350 Gigabit Ethernet Controller

Input / Output

  • SATA
    10 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 Gigabit Ethernet LAN ports
  • USB
    6 USB 2.0 port(s) (4 via header; 2 rear)
    5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 4.0 x16
  • M.2
    M.2 Interface: 2 SATA/PCIe 3.0 x4
    Form Factor: 2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI
  • BIOS Features
    ACPI 6.2
    SMBIOS 3.0 or later
    UEFI 2.7

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection
Brand

Supermicro
Application

Server
Form Factor

ATX
Chipset

Intel C621A
Products Status

New
Socket

LGA-4189
USB

6 USB 2.0 port(s) (4 via header; 2 rear)5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
BIOS Type

AMI UEFI
Memory Capacity

8 DIMM slotsUp to 2TB Intel Optane Persistent Memory 200 SeriesUp to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM
Memory Type

3200/2933/2666 MT/s ECC, DDR4 LRDIMM (3DS), RDIMM (3DS)
Memory Voltage

1.2V
DIMM Sizes

128GB, 16GB, 256GB, 32GB, 64GB, 8GB
CPU

3rd Gen Intel Xeon Scalable processors
Error Detection

Corrects single-bit errors
SATA

10 SATA3 (6Gbps) port(s)
Dimension

12" x 10" (30.48cm x 25.4cm)
Network Controllers

Dual LAN with Intel i350 Gigabit Ethernet Controller
M.2

M.2 Interface: 2 SATA/PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
IPMI

ASPEED AST2600 BMC
PCIe

1 PCIe 4.0 x16
TPM

1 TPM Header
BIOS Features

ACPI 6.2SMBIOS 3.0 or laterUEFI 2.7
Cores

Up to 40 cores
Video Output

1 VGA port(s)
LAN

2 RJ45 Gigabit Ethernet LAN ports
Serial Port

2 COM Port(s) (1 header; 1 rear)
Graphics

1 ASPEED AST2600 BMC port(s)
Hardware

Trusted Platform Module (TPM) 2.0
