| Brand | Supermicro |
|---|---|
| BIOS Features | ACPI 6.2SMBIOS 3.0 or laterUEFI 2.7 |
| Graphics | 1 ASPEED AST2600 BMC port(s) |
| TPM | 1 TPM Header |
| Network Controllers | Dual LAN with 10GBase-T with Intel X550 |
| M.2 | M.2 Interface: 1 SATA/PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key |
| Chipset | Intel C621A |
| DIMM Sizes | 128GB, 128GBRDIMM: 8GB, 16GB, 256GBLRDIMM: 64GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI UEFI |
| LAN | 2 RJ45 10 Gigabit Ethernet LAN ports |
| Video Output | 1 VGA D-Sub Connector port(s) |
| DOM | DOM |
| Dimension | 12.1" x 10" (30.73cm x 25.4cm) |
| PCIe | 1 PCIe 4.0 x8 (in x16 slot), 2 PCIe 4.0 x16, 2 PCIe 4.0 x8 |
| USB | 4 USB 2.0 port(s) (2 via header; 2 rear)5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A) |
| Form Factor | ATX |
| Memory Type | DDR4 LRDIMM (3DS), ECC, RDIMM (3DS) |
| Application | Server |
| IPMI | ASPEED AST2600 BMC |
| Memory Voltage | 1.2V |
| CPU | 3rd Gen Intel Xeon Scalable processorsSingle Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP |
| Serial Port | 1 COM Port(s) (1 header) |
| SATA | 1, 10, 5, Intel C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0 |
| Memory Capacity | 8 DIMM slotsUp to 2TB Intel Optane Persistent Memory 200 SeriesUp to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM |
| Error Detection | Corrects single-bit errors |
| Core | Up to 40 cores |

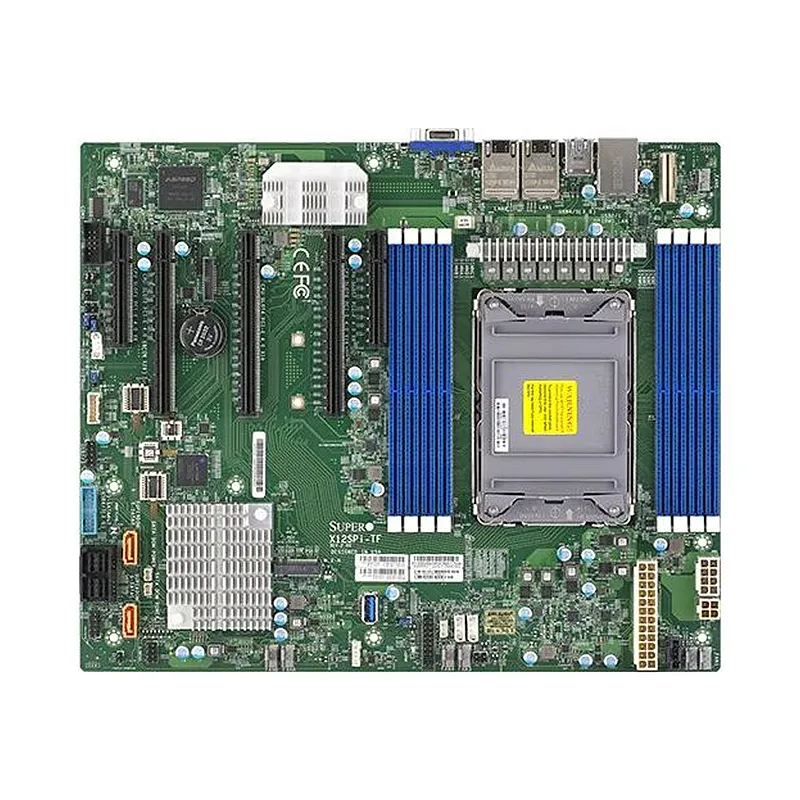

* NOTE: Image may not exactly match the product
Supermicro MBD-X12SPI-TF
The Supermicro MBD-X12SPI-TF is a high-performance server motherboard designed for demanding enterprise workloads. Built on the Intel C621A chipset, it supports 3rd Gen Intel Xeon Scalable processors with up to 40 cores, delivering exceptional computational power for data centers and workstations.
**Key Features:**
– Single LGA 4189 socket supporting Intel Xeon Scalable processors
– 8 DIMM slots supporting up to 2TB DDR4-3200 ECC memory
– Dual 10GbE LAN ports for high-speed networking
– Multiple PCIe 4.0 slots for maximum expansion flexibility
– IPMI 2.0 with dedicated management LAN for remote monitoring
– M.2 slots for NVMe storage acceleration
– Comprehensive I/O including USB 3.0 and serial ports
**Benefits:**
– Optimized for virtualization, cloud computing, and AI/ML workloads
– Enhanced reliability through ECC memory support and enterprise-grade components
– Future-proof design with PCIe 4.0 and latest processor compatibility
– Efficient thermal management for sustained performance
– Cost-effective single-socket solution for mid-range server applications
**Unique Selling Points:**
– Supermicro’s proven server-grade reliability and build quality
– Balanced feature set ideal for edge computing and branch office deployments
– Extensive validation and compatibility testing
– Strong ecosystem support with matching chassis and power solutions
