| Brand | Supermicro |
|---|---|
| BIOS Features | ACPI 3.0 / 4.0SMBIOS 2.7PCI FW 3.0RTC (Real Time Clock) Wakeup |
| Graphics | 1 ASPEED AST2500 BMC port(s)VGA connector is dedicated for IPMI. |
| Audio | ALC 888S HD Audio |
| TPM | 1 TPM Header |
| Network Controllers | Single LAN with Intel Ethernet Controller I210-ATSingle LAN with Realtek RTL8211F PHY (dedicated IPMI)Single LAN with Marvell AQC113 |
| M.2 | M.2 Interface: 4 PCIe 4.0 x4Form Factor: 2260/2280/22110Key: M-Key |
| Chipset | Intel C621A |
| DIMM Sizes | 128GB, 16GB, 32GB, 4GB, 64GB, 8GB |
| BIOS Type | 256MB SPI Flash with AMI BIOS |
| LAN | 1 RJ45 Dedicated IPMI LAN port1 RJ45 Gigabit Ethernet LAN ports1 RJ45 10GBase-T ports |
| Video Output | 1 VGA port(s) |
| DOM | DOM |
| Dimension | 13" x 12" (33.02cm x 30.48cm) |
| PCIe | 3 PCIe 4.0 x8 (in x16 slot), 4 PCIe 4.0 x16, 8/8), PCIe x16 Slot#1 shares with M.2, Slot#2 shares with Slot#3 (NA/16, Slot#4 shares with Slot#5 (NA/16, Slot#6 shares with Slot#7 (NA/16 |
| USB | 4 USB 2.0 port(s) (2 via header; 2 rear)6 USB 3.2 Gen1 port(s) (2 via header; 4 rear)1 USB 3.2 Gen2x2 port(s) (1 rear type C)2 USB 3.2 Gen2 port(s) (1 type A; 1 type C) |
| Form Factor | E-ATX |
| Memory Type | ECC DDR4 LRDIMM (3DS), RDIMM (3DS) |
| Application | Server |
| IPMI | ASPEED AST2500 |
| Memory Voltage | 1.2V |
| CPU | 3rd Gen Intel Xeon Scalable processors, CPU TDP supports Up to 270W TDP, Intel Xeon W-3300 ProcessorSingle Socket Socket P+ (LGA-4189) supported |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| SATA | 1, 10, 5, Intel C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0 |
| Memory Capacity | 16 DIMM slotsUp to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s, DDR4-3200MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-3200MT/sUp to 4TB 3DS ECC LRDIMM |
| Core | Up to 40 cores |
* NOTE: Image may not exactly match the product

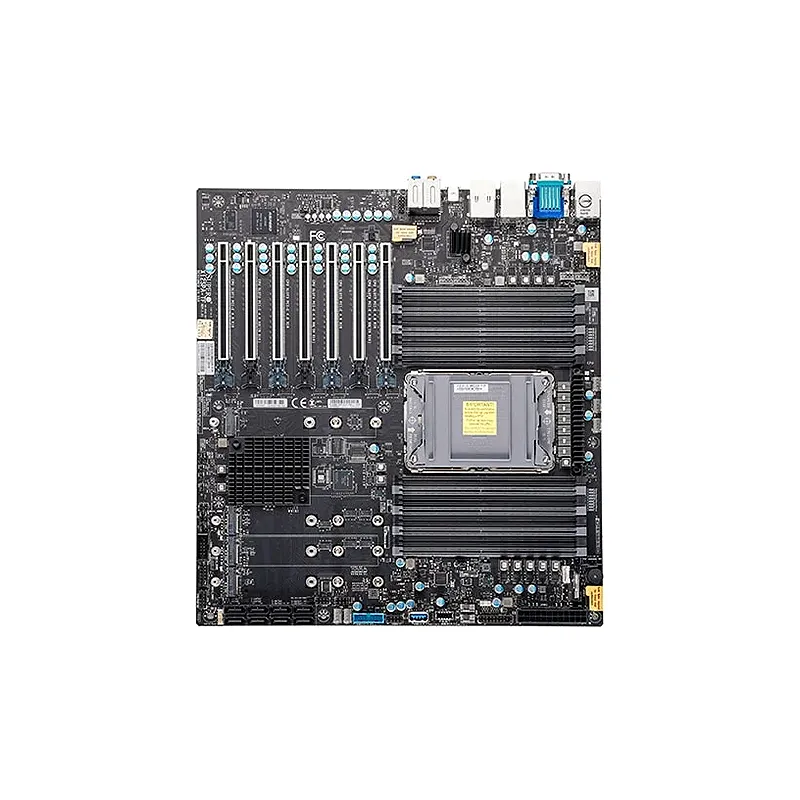

Supermicro MBD-X12SPA-TF
The Supermicro MBD-X12SPA-TF is a high-performance server motherboard featuring the Intel C621A chipset and LGA 4189 socket, designed for 3rd Gen Intel Xeon Scalable processors. Key features include support for up to 2TB of DDR4-3200 ECC memory across 8 DIMM slots, dual 10GbE LAN ports for high-speed networking, and comprehensive I/O with multiple PCIe 4.0 slots for maximum expansion flexibility. The board offers enterprise-grade reliability with IPMI 2.0 remote management, redundant power supply support, and advanced thermal monitoring. Its compact form factor makes it ideal for space-constrained environments while delivering exceptional processing power for virtualization, cloud computing, and data-intensive applications. The motherboard’s robust design ensures 24/7 operation reliability, making it perfect for mission-critical server deployments requiring scalable performance and enterprise-level features.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
