| Brand | Supermicro |
|---|---|
| M.2 | M.2 Interface: 2 PCIe 4.0 x4, RAID 0 & 1Form Factor: 22110 |
| Chipset | Intel C621A |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB |
| BIOS Type | AMI UEFI |
| Dimension | 14.8" x 10.9" (37.59cm x 27.69cm) |
| PCIe | 3 PCIe 4.0 x16 |
| Form Factor | Proprietary |
| Memory Type | 3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM |
| Application | Server |
| Memory Voltage | 1.2V |
| CPU | 3 UPI up to 11.2 GT/s, 3rd Gen Intel Xeon Scalable processorsDual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP |
| SATA | 1, 10, 5, Intel C621A controller for 4 SATA3 ports; RAID 0 |
| Memory Capacity | 16 DIMM slotsUp to 2TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/sUp to 4TB ECC LRDIMM |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Core | Up to 40 cores |
* NOTE: Image may not exactly match the product

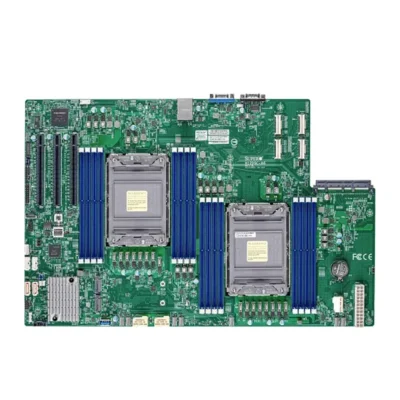

Supermicro MBD-X12DSC-A6
The Supermicro MBD-X12DSC-A6 is a high-performance dual-socket server motherboard designed for enterprise workloads and data center applications. Built on the Intel C621A chipset, it supports dual 3rd Gen Intel Xeon Scalable processors with up to 40 cores each, delivering exceptional computational power for demanding tasks.
**Key Features:**
– Dual LGA 4189 sockets for 3rd Gen Intel Xeon Scalable processors
– 16 DIMM slots supporting up to 4TB DDR4-3200 ECC memory
– 8x PCIe 4.0 x16 slots for maximum expansion capability
– Dual 10GbE LAN ports with Intel X710 controllers
– IPMI 2.0 with dedicated management port for remote administration
– 8x SATA3 and 2x M.2 NVMe slots for flexible storage options
**Benefits:**
– Massive parallel processing capability for virtualization, databases, and HPC applications
– Enterprise-grade reliability with ECC memory support and redundant networking
– Future-proof PCIe 4.0 connectivity for high-bandwidth accelerators and storage
– Comprehensive remote management reduces operational overhead
– Optimized for 2U rackmount configurations in space-constrained environments
**Unique Selling Points:**
This motherboard excels in density-optimized deployments where maximum performance per rack unit is critical, making it ideal for cloud service providers, research institutions, and enterprises requiring scalable computing infrastructure with professional-grade management capabilities.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Brand | Supermicro |
|---|---|
| M.2 | M.2 Interface: 2 PCIe 4.0 x4, RAID 0 & 1Form Factor: 22110 |
| Chipset | Intel C621A |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB |
| BIOS Type | AMI UEFI |
