| Brand | Supermicro |
|---|---|
| BIOS Features | Plug and Play (PnP)APM 1.2DMI 2.3PCI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportHardware BIOS Virus protectionSMBIOS 2.7.1UEFI 2.3.1 |
| Graphics | 1 ASPEED AST2400 BMC port(s) |
| TPM | 1 TPM Header |
| Network Controllers | Dual LAN with Intel Ethernet Controller I210-AT |
| Chipset | Intel C236 |
| DIMM Sizes | 16GB, 4GB, 8GB |
| BIOS Type | 128MB SPI Flash EEPROM with AMI BIOS |
| Video Output | 1 VGA port(s) |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) |
| PCIe | 1 PCIe 3.0 x8, 1 PCIe 3.0 x8 (in x16 slot), 2 PCIe 3.0 x4 (in x8 slot) |
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A) |
| Form Factor | Micro-ATX |
| Memory Type | 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs |
| Application | Server |
| IPMI | ASPEED AST2400 BMC |
| Memory Voltage | 1.2V |
| CPU | CPU TDP supports Up to 80W TDP, Intel 7th/6th Generation Core i3 series, Intel Celeron, Intel Pentium, Intel Xeon processor E3-1200 v6/v5Single Socket LGA-1151 (Socket H4) supported |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| SATA | 1, 10, 5, Intel C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0 |
| Memory Capacity | 4 DIMM slots64GB Unbuffered ECC UDIMM, DDR4-2400MT/s |
| Error Detection | Corrects single-bit errors |
* NOTE: Image may not exactly match the product

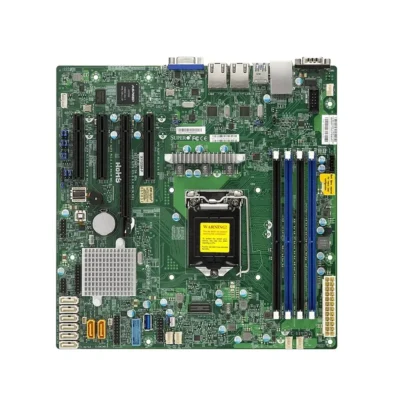

Supermicro MBD-X11SSM-F-B
The Supermicro MBD-X11SSM-F-B is a high-performance micro-ATX server motherboard designed for small business and edge computing applications. Built on the Intel C236 chipset, it supports 8th/9th generation Intel Core processors and Xeon E-2100/E-2200 series CPUs, delivering enterprise-grade reliability with desktop affordability.
**Key Features:**
– Supports up to 64GB DDR4-2666 ECC/non-ECC memory across 4 DIMM slots
– Dual Intel Gigabit Ethernet ports for redundancy and load balancing
– 6x SATA3 ports plus M.2 slot for flexible storage configurations
– IPMI 2.0 with dedicated management LAN for remote monitoring
– PCIe 3.0 expansion slots for graphics cards or additional networking
**Benefits:**
– ECC memory support ensures data integrity for mission-critical applications
– Compact micro-ATX form factor saves rack space while maintaining full functionality
– Enterprise-grade remote management capabilities reduce maintenance costs
– Energy-efficient design with comprehensive thermal monitoring
– Proven Supermicro reliability backed by extensive validation testing
**Unique Selling Points:**
This motherboard bridges the gap between consumer and enterprise hardware, offering server-class features like IPMI management and ECC support in an affordable, space-efficient package ideal for small offices, branch locations, or specialized workstations requiring maximum uptime.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
