Product SKUs

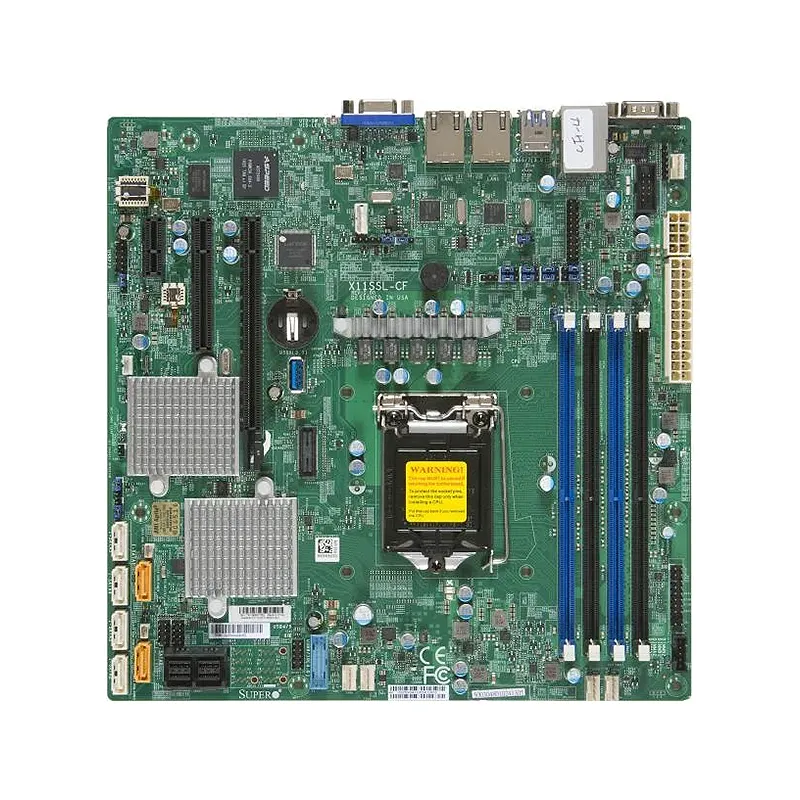

- MBD-X11SSL-CF
Physical Stats
- Form Factor
Micro-ATX
- Dimension
9.6″ x 9.6″ (24.38cm x 24.38cm)
Processor
- CPU
Intel Celeron, Intel Pentium, Intel 7th/6th Generation Core i3 series, Intel Xeon processor E3-1200 v6/v5
Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 80W TDP
System Memory
- Memory Capacity
4 DIMM slots
64GB Unbuffered ECC UDIMM, DDR4-2400MT/s - Memory Type
2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
- DIMM Sizes
4GB, 8GB, 16GB
- Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
On-Board Devices
- Chipset
Intel C232
- SAS
LSI3008 controller for 8 SAS3 (12 Gbps) ports; RAID 0,1,10
- SATA
Intel C232 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2400 BMC
- Graphics
1 ASPEED AST2400 BMC port(s)
- Network Controllers
Dual LAN with Intel Ethernet Controller I210-AT
Input / Output
- USB
6 USB 2.0 port(s) (4 via header; 2 rear)
2 USB 3.0 port(s) (2 rear)
3 USB 3 port(s) (2 via header; 1 type A) - Video Output
1 VGA port(s)
- Serial Port
2 COM Port(s) (1 header; 1 rear)
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 3.0 x8 (in x16 slot),
1 PCIe 3.0 x4 (in x8 slot),
1 PCIe 3.0 x1
System BIOS
- BIOS Type
128MB SPI Flash EEPROM with AMI BIOS
- BIOS Features
ACPI 1.0 / 2.0 / 3.0 / 4.0
APM 1.2
DMI 2.3
Hardware BIOS Virus protection
PCI 2.3
Plug and Play (PnP)
SMBIOS 2.7.1
UEFI 2.3.1
USB Keyboard support
Management
- Power Configurations
Power-on mode for AC power recovery, ACPI Power Management
