Product SKUs

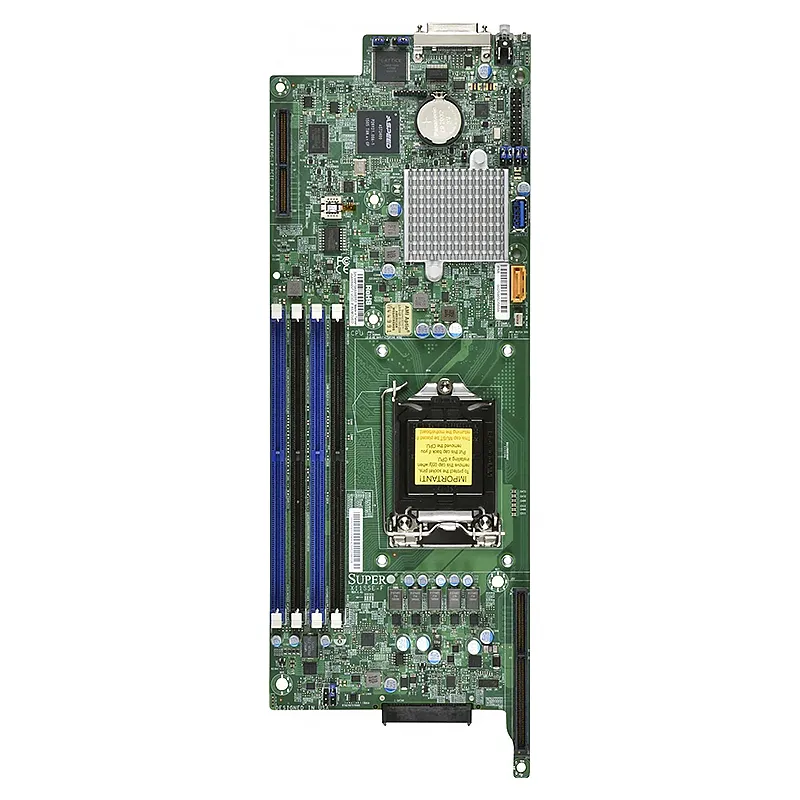

- MBD-X11SSE-F
Physical Stats
- Form Factor
Proprietary
- Dimension
4.6″ x 11.7″ (11.68cm x 29.72cm)
Processor
- CPU
Intel 6th Generation Core i3 series, Intel Celeron, Intel Pentium, Intel 7th Generation Core i3 series, Intel Xeon processor E3-1200 v6/v5
Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 80W TDP
System Memory
- Memory Capacity
4 DIMM slots
64GB Unbuffered ECC UDIMM, DDR4-2400MT/s - Memory Type
2400/2133/1866 MT/s SDRAM 72/64-bit, 288-pin gold-plated DIMMs2133/1866/1600MHz SDRAM 72-bit, 288-pin gold-plated DIMMs
- DIMM Sizes
4GB, 8GB, 16GB
- Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C236
- SATA
Intel C236 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Graphics
1 ASPEED AST2400 BMC port(s)
- Network Controllers
Input / Output
- USB
2 USB 2.0 port(s) (2 rear)
1 USB 3.2 Gen1 port(s) (1 type A) - Video Output
1 VGA port(s)
- Serial Port
1 fast UART 16550 Serial
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 3.0 x8 (Micro Low Profile)
System BIOS
- BIOS Type
128MB UEFI
- BIOS Features
ACPI 1.0 / 2.0 / 3.0 / 4.0
APM 1.2
DMI 2.3
Hardware BIOS Virus protection
PCI 2.3
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
SMBIOS 2.7.1
UEFI 2.3.1
USB Keyboard support
Management
- Power Configurations
Power-on mode for AC power recovery, ACPI Power Management
