| Brand | Supermicro |
|---|---|
| BIOS Features | ACPI 6.0SMBIOS 3.0 or laterPlug and Play (PnP) |
| Graphics | 1 ASPEED AST2500 BMC port(s) |
| TPM | 1 TPM Header |
| Network Controllers | Dual LAN with Intel i210 Gigabit Ethernet Controller |
| M.2 | M.2 Interface: 1 PCIe 3.0 x4Form Factor: 2280Key: M-Key |
| Chipset | Intel C422 |
| DIMM Sizes | 128GB, 16GB, 32GB, 4GB, 64GB, 8GB |
| BIOS Type | AMI UEFI |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| Video Output | 1 VGA port(s) |
| DOM | DOM |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) |
| PCIe | 1 PCIe 3.0 x16, 2 PCIe 3.0 x8 |
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear)3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)2 USB 3.0 port(s) (2 rear) |
| Form Factor | Micro-ATX |
| Memory Type | 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM |
| Application | Server |
| IPMI | ASPEED AST2500 |
| Memory Voltage | 1.2V |
| CPU | CPU TDP supports Up to 165W TDP, Intel Xeon W-2100 Processors, Intel Xeon W-2200 ProcessorsSingle Socket Socket R4 (LGA-2066) supported |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| SATA | 8 SATA3 (6Gbps) port(s) |
| Memory Capacity | 4 DIMM slotsUp to 512GB ECC LRDIMM, DDR4-2933MT/s, DDR4-2933MT/s; Up to 256GB ECC RDIMM |
| Error Detection | Corrects single-bit errors |
| Core | 36 threads, Up to 18 cores |

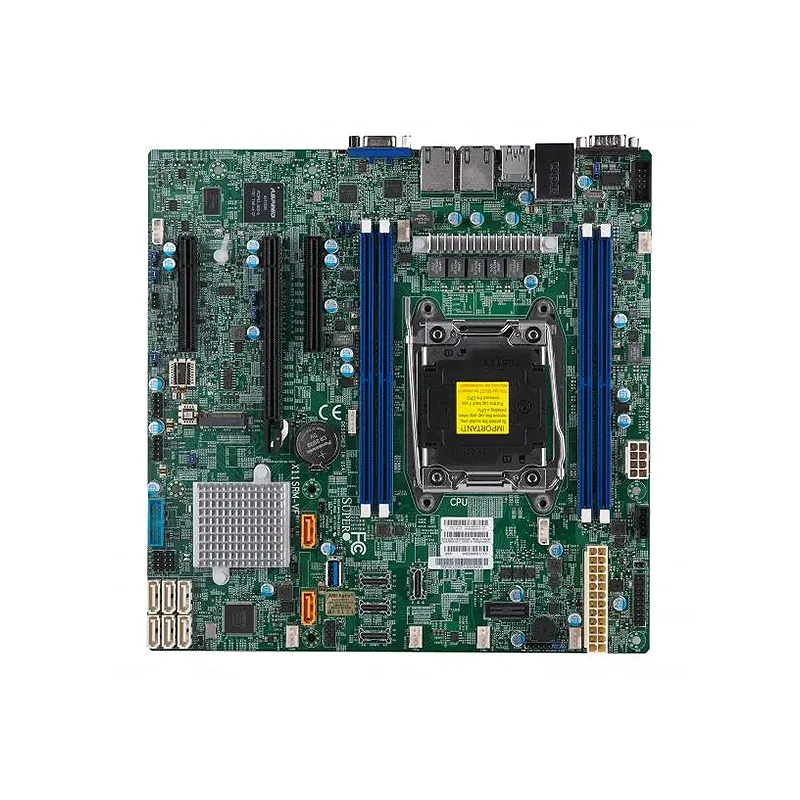

* NOTE: Image may not exactly match the product

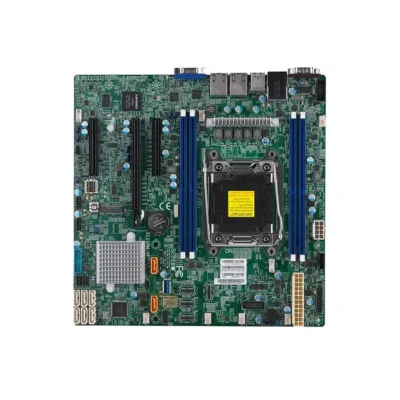

Supermicro MBD-X11SRM-VF-B
The Supermicro MBD-X11SRM-VF-B is a high-performance microATX server motherboard designed for Intel Xeon E3-1200 v6/v5 processors and 7th/6th generation Core i3 series. Key features include dual 10GbE SFP+ ports for ultra-fast networking, support for up to 64GB DDR4 ECC memory, and comprehensive I/O connectivity with multiple PCIe slots. Built for enterprise applications, it offers exceptional reliability with ECC memory support, advanced thermal management, and Supermicro’s renowned build quality. The integrated IPMI 2.0 with dedicated LAN enables remote management capabilities, while the compact microATX form factor maximizes performance in space-constrained environments. Ideal for edge computing, network appliances, and small-to-medium business servers requiring high-speed connectivity and enterprise-grade features.
