| Brand | Supermicro |
|---|---|
| BIOS Features | ACPI 6.2SMBIOS 3.0 or laterUEFI 2.7 |
| Graphics | 1 ASPEED AST2500 BMC port(s) |
| TPM | 1 TPM Header |
| Network Controllers | Dual LAN with Intel i210 Gigabit Ethernet Controller |
| M.2 | M.2 Interface: 1 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key |
| Chipset | Intel C422 |
| DIMM Sizes | 128GB, 16GB, 32GB, 4GB, 64GB, 8GB |
| BIOS Type | AMI UEFI |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| Video Output | 1 VGA port(s) |
| DOM | DOM |
| Dimension | 12" x 9.6" (30.48cm x 24.38cm) |
| PCIe | 1 PCIe 3.0 x16, 1 PCIe 3.0 x4 (in x8 slot), 1 PCIe 3.0 x8 (in x16 slot), 3 PCIe 3.0 x8 |
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear)3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)2 USB 3.0 port(s) (2 rear) |
| Form Factor | ATX |
| Memory Type | 2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM |
| Application | Server |
| IPMI | ASPEED AST2500 |
| Memory Voltage | 1.2V |
| CPU | CPU TDP supports Up to 165W TDP, Intel Xeon W-2100 Processors, Intel Xeon W-2200 ProcessorsSingle Socket Socket R4 (LGA-2066) supported |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| SATA | 8 SATA3 (6Gbps) port(s) |
| Memory Capacity | 8 DIMM slotsUp to 1TB ECC LRDIMM, DDR4-2933MT/s, DDR4-2933MT/s; Up to 512GB ECC RDIMM |
| Error Detection | Corrects single-bit errors |
| Core | 36 threads, Up to 18 cores |

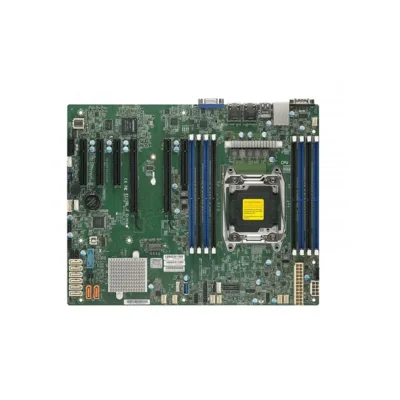

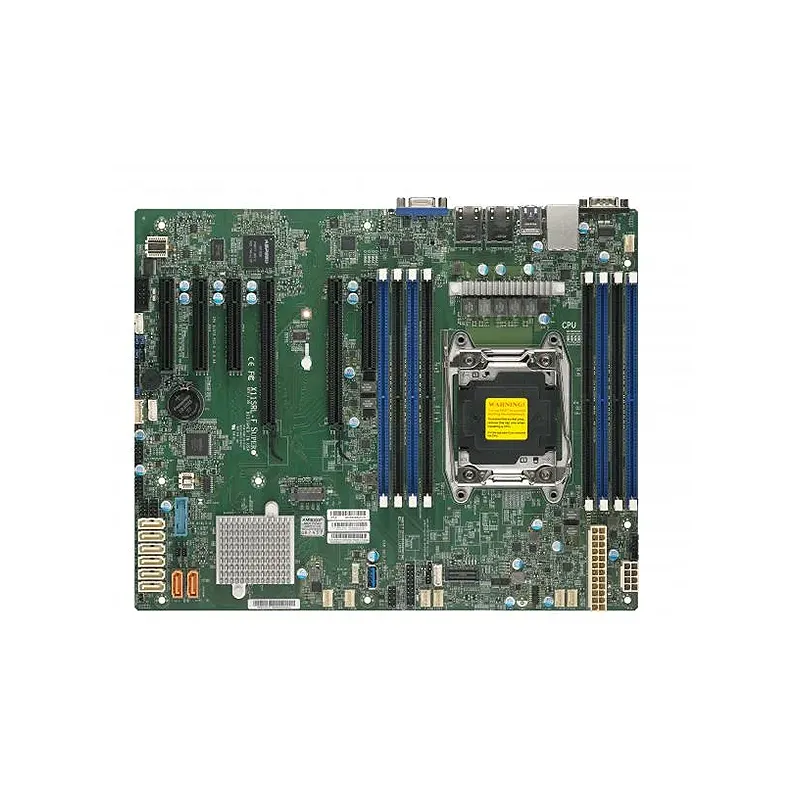

* NOTE: Image may not exactly match the product
Supermicro MBD-X11SRL-F-B
The Supermicro MBD-X11SRL-F-B is a high-performance server motherboard designed for enterprise workloads, featuring the Intel C422 chipset and LGA 3647 socket supporting Intel Xeon Scalable processors. Key highlights include 8 DDR4 RDIMM/LRDIMM slots supporting up to 1TB of memory, dual 10GbE LAN ports for high-speed networking, and comprehensive expansion capabilities with multiple PCIe slots. The board offers enterprise-grade reliability with IPMI 2.0 remote management, redundant power supply support, and advanced thermal monitoring. Its compact ATX form factor maximizes density while providing robust I/O options including USB 3.0, SATA 3.0, and M.2 connectors. Ideal for virtualization, cloud computing, and data-intensive applications requiring exceptional performance, scalability, and 24/7 operational reliability.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
