| Brand | Supermicro |
|---|---|
| Products Status | New |
| Form Factor | ATX |
| Dimension | 12" x 9.6" (30.48cm x 24.38cm) |
| Memory Capacity | 8 DIMM slots Up to 1TB ECC LRDIMM, DDR4-2666MT/s, DDR4-2666MT/s Up to 1TB ECC LRDIMM, DDR4-2666MT/s; Up to 512GB ECC RDIMM |
| Memory Type | 2666/2400/2133/1866/1600 MT/s ECC DDR4 LRDIMM, 288-pin, RDIMM SDRAM 72-bit |
| DIMM Sizes | 128GB, 16GB, 32GB, 4GB, 64GB, 8GB |
| Memory Voltage | 1.2V |
| PCIe | 1 PCIe 3.0×4, 3 PCIe 3.0 x16 |
| Expansion Slots | 1, M.2 Interface: 2 PCIe 3.0 x4, RAID 0 |
| Socket | LGA-2066 (Socket R4) |
* NOTE: Image may not exactly match the product

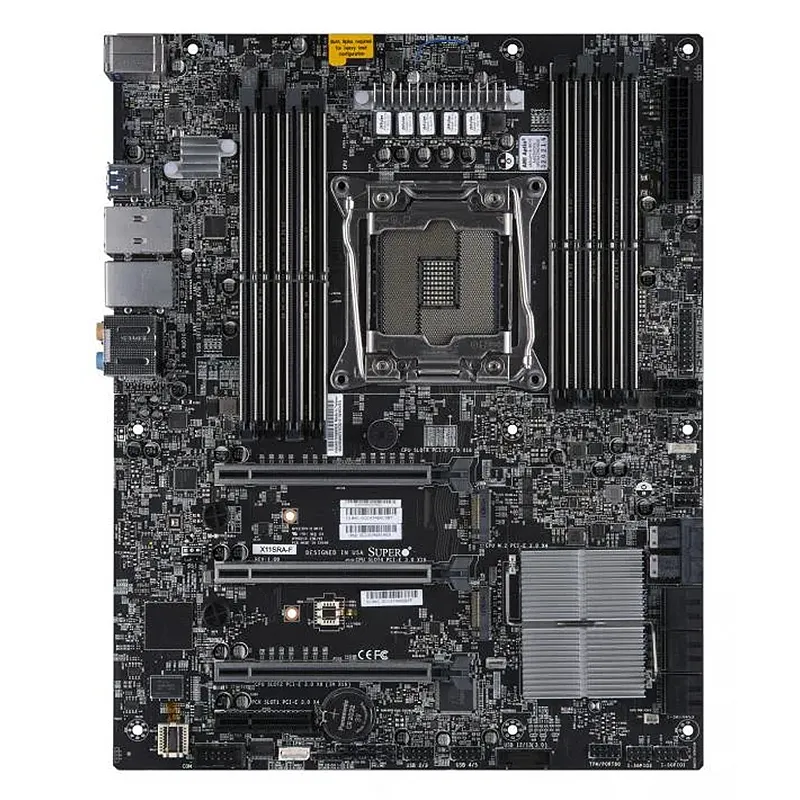

Supermicro MBD-X11SRA-B
The Supermicro MBD-X11SRA-B is a high-performance server motherboard designed for demanding enterprise applications. Built on the Intel C422 chipset, it supports Intel Xeon W processors with up to 18 cores, delivering exceptional computational power for workstations and servers. Key features include 8 DIMM slots supporting up to 512GB of DDR4-2666 ECC memory, dual 10GbE LAN ports for high-speed networking, and extensive expansion capabilities with 7 PCIe slots. The board offers robust storage options with 8 SATA3 ports and M.2 connectors for NVMe SSDs. Its IPMI 2.0 support enables remote management and monitoring, while the ATX form factor ensures compatibility with standard chassis. Ideal for content creation, scientific computing, and virtualization environments, this motherboard combines enterprise-grade reliability with workstation-class performance, making it perfect for professionals requiring maximum processing power and expandability in a single platform.
Quote1 Piece(MOQ)
| Brand | Supermicro |
|---|---|
| Products Status | New |
| Form Factor | ATX |
| Dimension | 12" x 9.6" (30.48cm x 24.38cm) |
| Memory Capacity | 8 DIMM slots Up to 1TB ECC LRDIMM, DDR4-2666MT/s, DDR4-2666MT/s Up to 1TB ECC LRDIMM, DDR4-2666MT/s; Up to 512GB ECC RDIMM |
