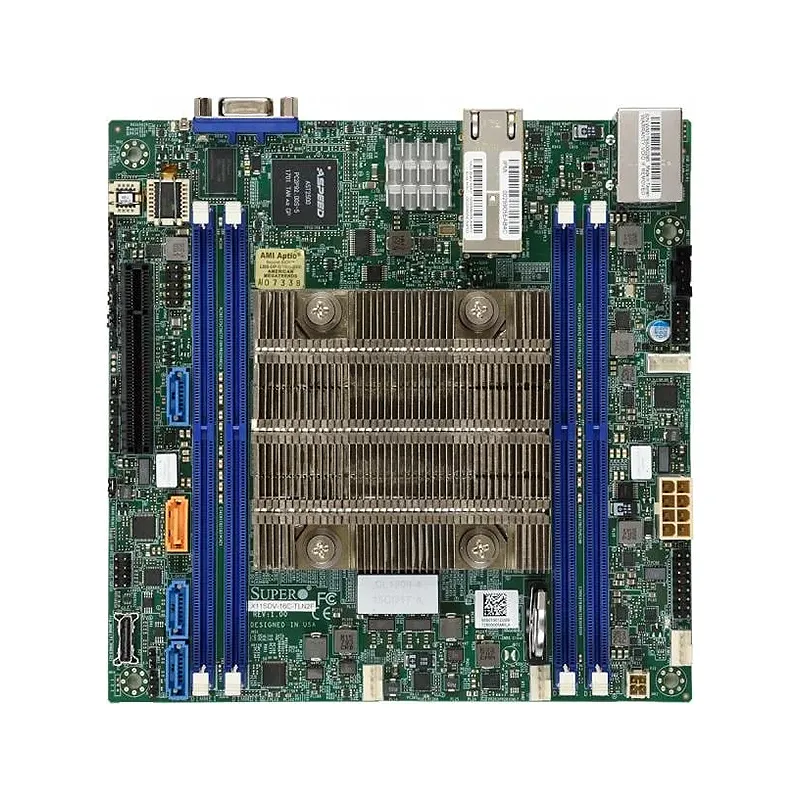

* NOTE: Image may not exactly match the product

Supermicro MBD-X11SDV-8C-TLN2F

The Supermicro MBD-X11SDV-8C-TLN2F is a high-performance Mini-ITX server motherboard featuring an integrated Intel Xeon D-2146NT 8-core processor running at 2.3GHz base frequency. This compact powerhouse delivers enterprise-grade performance with support for up to 512GB DDR4 ECC memory across four DIMM slots, ensuring exceptional reliability and scalability for demanding applications.

Key features include dual 10GbE SFP+ ports for high-speed networking, four SATA3 ports, and comprehensive I/O connectivity including USB 3.0, VGA, and serial ports. The board supports advanced server management through IPMI 2.0 with dedicated LAN, enabling remote monitoring and control capabilities essential for data center environments.

The motherboard’s unique selling points lie in its exceptional performance-per-watt ratio, combining the processing power of a full server into an ultra-compact form factor ideal for edge computing, network appliances, storage solutions, and space-constrained deployments. Its integrated design eliminates CPU compatibility concerns while providing enterprise-class features typically found in larger server platforms, making it perfect for organizations requiring powerful computing in minimal space with maximum efficiency.

Quote1 Piece(MOQ)

Premium Client Discounts Available

BrandSupermicro
BIOS FeaturesACPI 6.1SMBIOS 3.1UEFI 2.6PCI FW 3.2
Graphics1 ASPEED AST2500 BMC port(s)
TPM1 TPM Header
Network ControllersDual LAN with 10Gbase-T

Product SKUs

  • MBD-X11SDV-8C-TLN2F

Physical Stats

  • Form Factor
    Mini-ITX
  • Dimension
    6.75″ x 6.75″ (17.15cm x 17.15cm)

Processor

  • CPU
    Intel Xeon Processor D-2141I
    Single Socket FCBGA-2518 supported, CPU TDP supports Up to 65W TDP
  • Core
    Up to 8 cores, 16 threads / 11MB Cache

System Memory

  • Memory Capacity
    4 DIMM slots
    Up to 512GB ECC LRDIMM, DDR4-2133MT/s; Up to 256GB ECC RDIMM, DDR4-2133MT/s
  • Memory Type
    2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2133MHz)
  • DIMM Sizes
    LRDIMM: 16GB, 32GB, 64GB, 128GB
    RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    System on Chip
  • SATA
    SoC controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Dual LAN with 10Gbase-T

Input / Output

  • LAN
    1 RJ45 Dedicated IPMI LAN port
    2 RJ45 10GBase-T ports
  • USB
    2 USB 2.0 port(s) (2 via header)
    2 USB 3.0 port(s) (2 rear)
  • Video Output
    1 VGA port(s)
  • DOM
    1 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x8
    1 PCIe 3.0 x4 NVMe Internal Port via OCuLink

System BIOS

  • BIOS Type
    AMI UEFI
  • BIOS Features
    ACPI 6.1
    SMBIOS 3.1
    UEFI 2.6
    PCI FW 3.2

Management

  • System Management Software
    IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • Power Configurations
    ACPI Power Management, +12V DC Power Input
Brand

Supermicro
BIOS Features

ACPI 6.1SMBIOS 3.1UEFI 2.6PCI FW 3.2
Graphics

1 ASPEED AST2500 BMC port(s)
TPM

1 TPM Header
Network Controllers

Dual LAN with 10Gbase-T
Chipset

System on Chip
DIMM Sizes

128GBRDIMM: 4GB, 16GB, 32GB, 64GB, 8GB, LRDIMM: 16GB
BIOS Type

AMI UEFI
LAN

1 RJ45 Dedicated IPMI LAN port2 RJ45 10GBase-T ports
Video Output

1 VGA port(s)
DOM

DOM
Dimension

6.75" x 6.75" (17.15cm x 17.15cm)
PCIe

1 PCIe 3.0 x81 PCIe 3.0 x4 NVMe Internal Port via OCuLink
USB

2 USB 2.0 port(s) (2 via header)2 USB 3.0 port(s) (2 rear)
Form Factor

Mini-ITX
Memory Type

2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2133MHz)
Application

Server
IPMI

ASPEED AST2500
Memory Voltage

1.2V
CPU

CPU TDP supports Up to 65W TDP, Intel Xeon Processor D-2141ISingle Socket FCBGA-2518 supported
SATA

1, 10, 5, SoC controller for 8 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity

4 DIMM slotsUp to 512GB ECC LRDIMM, DDR4-2133MT/s, DDR4-2133MT/s; Up to 256GB ECC RDIMM
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

16 threads / 11MB Cache, Up to 8 cores
