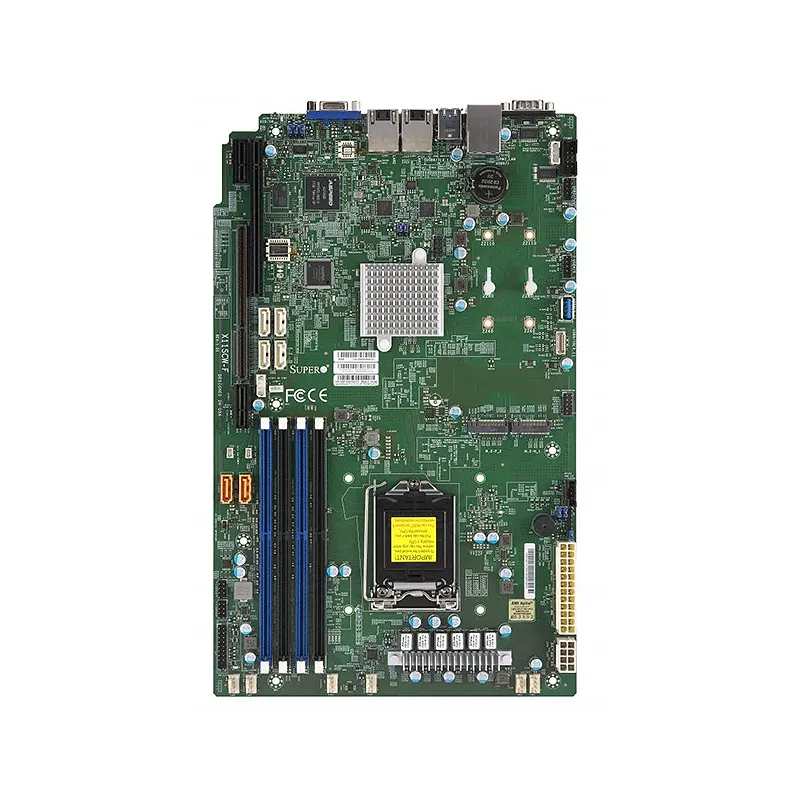

Supermicro MBD-X11SCW-F

* NOTE: Image may not exactly match the product

Supermicro MBD-X11SCW-F

The Supermicro MBD-X11SCW-F is a compact Mini-ITX server motherboard designed for edge computing and space-constrained applications. Built on Intel’s C246 chipset with LGA1151 socket, it supports 8th/9th generation Intel Core and Xeon E processors with up to 64GB DDR4 ECC memory. Key features include dual 10GbE LAN ports for high-speed networking, integrated IPMI 2.0 with dedicated management LAN for remote monitoring, and comprehensive I/O including USB 3.0, SATA 6Gb/s, and M.2 slots. The board offers enterprise-grade reliability with ECC memory support, hardware monitoring, and Supermicro’s proven server-class components in an ultra-compact 6.7″ x 6.7″ form factor. Ideal for edge servers, network appliances, IoT gateways, and small business servers requiring professional-grade performance and management capabilities without sacrificing space efficiency.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
ApplicationServer
Form FactorProprietary WIO
ChipsetIntel C246
Products StatusNew

Product SKUs

  • MBD-X11SCW-F

Physical Stats

  • Form Factor
    Proprietary WIO
  • Dimension
    8″ x 13″ (20.32cm x 33.02cm)

Processor

  • CPU
    8th/9th Generation Intel Core i3/Pentium/Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor
    Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
  • Core
    Up to 8 cores, 16 threads

System Memory

  • Memory Capacity
    4 DIMM slots
    Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MT/s
  • Memory Type
    2666/2400/2133 MT/s SDRAM 72-bit,
  • DIMM Sizes
    4GB, 8GB, 16GB, 32GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C246
  • SATA
    Intel C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Dual LAN with Intel Ethernet Controller I210-AT

Input / Output

  • SATA
    6 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 Gigabit Ethernet LAN ports
  • USB
    4 USB 3.1 Gen2 port(s) (2 via header; 2 rear)
    6 USB 2.0 port(s) (4 via header; 2 rear)
    1 USB 3.1 Gen1 port(s) (1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x16,
    1 PCIe 3.0 x4 (in x8 slot)
  • M.2
    M.2 Interface: 1 PCIe 3.0 x4; 1 SATA/PCIe 3.0 x4
    Form Factor: 2260/2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    256MB UEFI
  • BIOS Features
    ACPI 6.0
    SMBIOS 2.7
    Plug and Play (PnP)
    RTC (Real Time Clock) Wakeup
    UEFI 2.7
    USB Keyboard support
    PCI 3.0

Management

  • System Management Software
    IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • Power Configurations
    ACPI Power Management
Brand

Supermicro
Application

Server
Form Factor

Proprietary WIO
Chipset

Intel C246
Products Status

New
Socket

LGA-1151
USB

4 USB 3.1 Gen2 port(s) (2 via header; 2 rear)6 USB 2.0 port(s) (4 via header; 2 rear)1 USB 3.1 Gen1 port(s) (1 type A)
BIOS Type

256MB UEFI
Memory Capacity

4 DIMM slotsUp to 128GB Unbuffered ECC UDIMM, DDR4-2666MT/s
Memory Type

2666/2400/2133 MT/s SDRAM 72-bit
Memory Voltage

1.2V
DIMM Sizes

16GB, 32GB, 4GB, 8GB
CPU

8th/9th Generation Intel Core i3/Pentium/Celeron Processor, CPU TDP supports Up to 95W TDP, Intel Xeon E-2100 Processor, Intel Xeon E-2200 ProcessorSingle Socket Socket H4 (LGA-1151) supported
Error Detection

Corrects single-bit errors
SATA

6 SATA3 (6Gbps) port(s)
Dimension

8" x 13" (20.32cm x 33.02cm)
Network Controllers

Dual LAN with Intel Ethernet Controller I210-AT
M.2

M.2 Interface: 1 PCIe 3.0 x4; 1 SATA/PCIe 3.0 x4Form Factor: 2260/2280/22110Key: M-Key
IPMI

ASPEED AST2500
PCIe

1 PCIe 3.0 x16, 1 PCIe 3.0 x4 (in x8 slot)
TPM

1 TPM Header
BIOS Features

ACPI 6.0SMBIOS 2.7Plug and Play (PnP)RTC (Real Time Clock) WakeupUEFI 2.7USB Keyboard supportPCI 3.0
Cores

16 threads, Up to 8 cores
Video Output

1 VGA port(s)
LAN

2 RJ45 Gigabit Ethernet LAN ports
Serial Port

2 COM Port(s) (1 header; 1 rear)
Graphics

1 ASPEED AST2500 BMC port(s)
