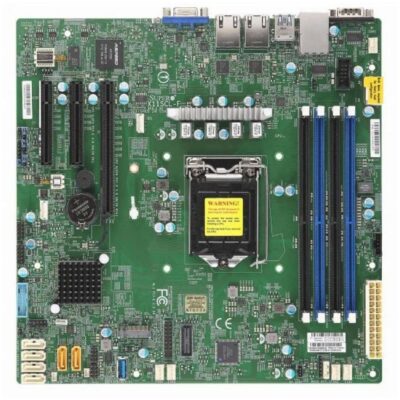

Supermicro MBD-X11SCL-F - HYPERTEK SYSTEMS B.V

Warranty

1 Year

Products Status

New

Brand

Supermicro

USB Ports

6 USB 2.0 port(s) (4 via header; 2 rear) 5 USB 3.1 Gen1 port(s) (2 via header; 1 type A; 2 rear type A)

CPU Socket Type

Intel LGA1151

Product SKUs

Physical Stats

Processor

CPU
8th/9th Generation Intel Core i3/Pentium/Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor
Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
Core
Up to 6 cores, 12 threads

System Memory

Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MT/s
Memory Type
2667/2400/2133 MT/s SDRAM 72-bit,
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors

On-Board Devices

Input / Output

USB
6 USB 2.0 port(s) (4 via header; 2 rear)
5 USB 3.1 Gen1 port(s) (2 via header; 1 type A; 2 rear type A)
Video Output
1 VGA port(s)
Serial Port
2 COM Port(s) (1 header; 1 rear)
DOM
2 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header

Expansion Slots

System BIOS

BIOS Type
256MB UEFI
BIOS Features
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0

Management

Power Configurations
Power-on mode for AC power recovery, ACPI Power Management

Warranty	1 Year
Products Status	New
Brand	Supermicro
USB Ports	6 USB 2.0 port(s) (4 via header; 2 rear) 5 USB 3.1 Gen1 port(s) (2 via header; 1 type A; 2 rear type A)
CPU Socket Type	Intel LGA1151
Form Factor	Micro ATX
Chipset	Intel C242 Series
Internal I/O Connectors	1 PCI-E 3.0 x8 (in x16), 2 PCI-E 3.0 x4 (in x8) 6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
Back I/O Ports	1 VGA, 2 COM, 2 SuperDOM, and TPM header
Product Name	Supermicro MBD-X11SCL-F
Packaging Details	Bulk
Size	24.38cmx24.38cm
Memory	Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots
CPU Brand	Intel
Application	Server
