| Warranty | 1 Year |
|---|---|
| Back I/O Ports | 2 RJ45 Gigabit Ethernet LAN ports 1 VGA port(s) |
| Products Status | New |
| USB Ports | 6 USB 2.0 port(s) (4 via header; 2 rear) 3 USB 3.1 Gen1 port(s) (2 via header; 1 type A) 2 USB 3.1 Gen2 port(s) (2 rear) |
| CPU Socket Type | Intel LGA1151 |
| Input / Output SATA | 8 SATA3 (6Gbps) ports |
| Form Factor | Micro ATX |
| Internal I/O Connectors | PCI-E: 1 PCI-E 3.0 x8 (in x16 slot), 1 PCI-E 3.0 x8 M.2: M.2 Interface: PCI-E 3.0 x4 Form Factor: 22110, 2280 M.2 Key: M-Key |
| P/N | MBD-X11SCH-F-B |
| Brand | supermicro |
| Chipset | Intel C246 Series |
| Product Name | supermicro MBD-X11SCH-F-B |
| Packaging Details | Bulk |
| Size | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Memory | Memory Capacity: 4 DIMM slots Up to 128GB ECC , DDR4-2666MHz Memory Type: 2666/2400/2133MHz SDRAM 72-bit, DIMM Sizes: 4GB, 8GB, 16GB, 32GB Memory Voltage: 1.2V Error Detection: Corrects single-bit errors |
| CPU Brand | Intel |
| Processor | CPU: 8th/9th Generation Intel Core i3/Pentium/Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP Core: Up to 8 cores, 16 threads |
| Application | Server |

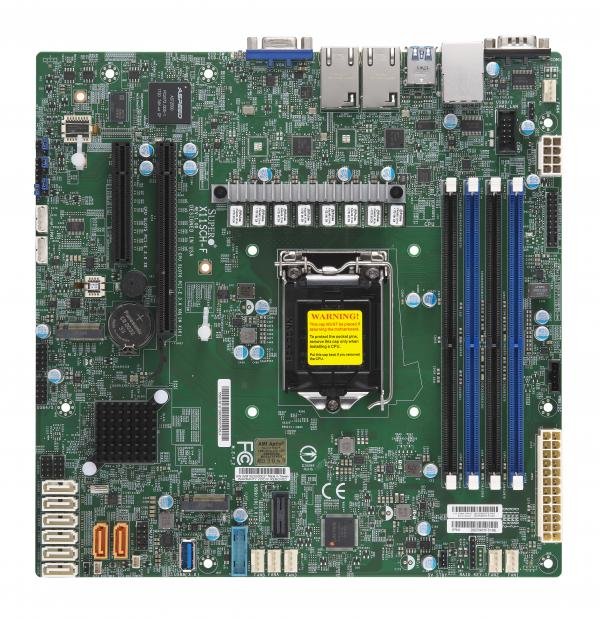

* NOTE: Image may not exactly match the product
supermicro MBD-X11SCH-F-B
The Supermicro MBD-X11SCH-F-B is a compact Mini-ITX server motherboard designed for edge computing and space-constrained applications. Built on Intel’s C246 chipset with LGA1151 socket, it supports 8th/9th generation Intel Core and Xeon E processors with up to 64GB DDR4 ECC memory. Key features include dual Gigabit Ethernet ports, IPMI 2.0 with dedicated management LAN, PCIe 3.0 expansion slot, multiple SATA 6Gb/s ports, and comprehensive I/O connectivity including USB 3.0 and serial ports. The board offers enterprise-grade reliability with ECC memory support, remote management capabilities, and Supermicro’s proven server-class components in an ultra-compact 6.7″ x 6.7″ form factor. Ideal for micro servers, network appliances, IoT gateways, and distributed computing deployments where space efficiency, reliability, and remote management are critical requirements.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Warranty | 1 Year |
|---|---|
| Back I/O Ports | 2 RJ45 Gigabit Ethernet LAN ports 1 VGA port(s) |
| Products Status | New |
| USB Ports | 6 USB 2.0 port(s) (4 via header; 2 rear) 3 USB 3.1 Gen1 port(s) (2 via header; 1 type A) 2 USB 3.1 Gen2 port(s) (2 rear) |
| CPU Socket Type | Intel LGA1151 |
