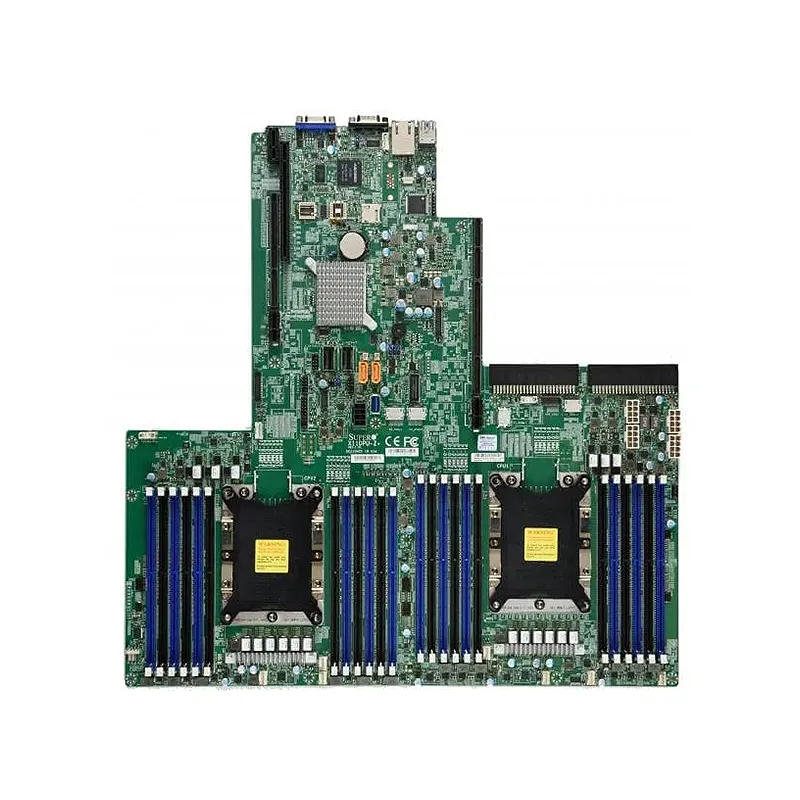

Supermicro MBD-X11DPU-Z+

* NOTE: Image may not exactly match the product

Supermicro MBD-X11DPU-Z+

The Supermicro MBD-X11DPU-Z is a high-performance dual-socket motherboard designed for enterprise workstations and servers requiring maximum processing power. Built on the Intel C621 chipset, it supports dual Intel Xeon Scalable processors with up to 28 cores each, delivering exceptional computational capabilities for demanding applications like data analytics, virtualization, and scientific computing.

Key features include support for up to 1.5TB of DDR4-2666 ECC memory across 12 DIMM slots, ensuring reliable performance under heavy workloads. The board offers extensive I/O connectivity with multiple PCIe 3.0 slots for GPU acceleration and expansion cards, dual 10GbE LAN ports for high-speed networking, and comprehensive storage options including M.2 NVMe and SATA connections.

The motherboard’s compact E-ATX form factor maximizes density while maintaining excellent thermal management through optimized component placement. Advanced management features include IPMI 2.0 with dedicated LAN for remote monitoring and control. Built with Supermicro’s renowned reliability and backed by extensive validation testing, the X11DPU-Z delivers enterprise-grade stability and performance for mission-critical applications requiring dual-processor scalability.

Quote1 Piece(MOQ)

Bulk Order Discounts Available

BrandSupermicro
Graphics1 ASPEED AST2500 BMC port(s)
TPM1 TPM Header
Network ControllersNetworking options provided via Ultra Riser
ChipsetIntel C621

Product SKUs

  • MBD-X11DPU-Z+

Physical Stats

  • Form Factor
    Proprietary Ultra
  • Dimension
    17″ x 16.8″ (43.18cm x 42.67cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
  • Core
    Up to 28 cores

System Memory

  • Memory Capacity
    24 DIMM slots
    Up to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/s
    Up to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only).
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 64GB, 128GB
    RDIMM: 64GB, 128GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C621
  • SATA
    Intel C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    Intel C621A controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Networking options provided via Ultra Riser

Input / Output

  • USB
    1 USB 3.2 Gen1 port(s) (1 via header)
    2 USB 3.0 port(s) (2 rear)
  • Video Output
    1 VGA port(s)
  • Serial Port
    1 COM Port(s) (1 rear)
  • DOM
    2 Super DOM (Disk on Module) ports
  • TPM
    1 TPM Header
  • Others
    1 ports SuperDOM

Expansion Slots

  • PCIe
    1 PCIe 3.0 x32 Left Riser Slot,
    1 PCIe 3.0 x8 Right Riser Slot,
    1 PCIe 3.0 x40 Far Right Riser Slot

System BIOS

  • BIOS Type
    AMI UEFI

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
Brand

Supermicro
Graphics

1 ASPEED AST2500 BMC port(s)
TPM

1 TPM Header
Network Controllers

Networking options provided via Ultra Riser
Chipset

Intel C621
DIMM Sizes

128GB, 128GBRDIMM: 64GB, LRDIMM: 64GB
BIOS Type

AMI UEFI
Video Output

1 VGA port(s)
DOM

DOM
Dimension

17" x 16.8" (43.18cm x 42.67cm)
PCIe

1 PCIe 3.0 x32 Left Riser Slot, 1 PCIe 3.0 x40 Far Right Riser Slot, 1 PCIe 3.0 x8 Right Riser Slot
USB

1 USB 3.2 Gen1 port(s) (1 via header)2 USB 3.0 port(s) (2 rear)
Form Factor

Proprietary Ultra
Memory Type

2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2500
Others

1 ports SuperDOM
Memory Voltage

1.2V
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, 3 UPI up to 10.4 GT/s, CPU TDP supports Up to 205W TDP
Serial Port

1 COM Port(s) (1 rear)
SATA

1, 10, 10Intel C621A controller for SATA3 (6 Gbps) ports; RAID 0, 5, Intel C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity

24 DIMM slotsUp to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only).
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

Up to 28 cores
