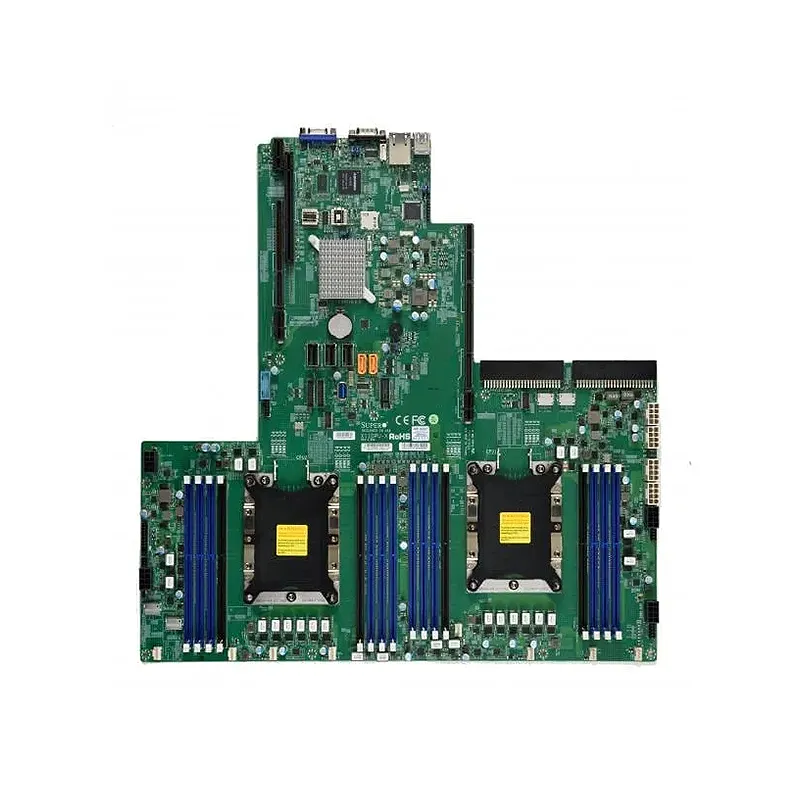

* NOTE: Image may not exactly match the product

Supermicro MBD-X11DPU-XLL

The Supermicro MBD-X11DPU-XLL is a high-performance dual-socket motherboard designed for enterprise workstations and servers requiring maximum processing power and expandability. Built on the Intel C621 chipset, it supports dual Intel Xeon Scalable processors with up to 28 cores each, delivering exceptional computational performance for demanding applications like virtualization, data analytics, and scientific computing.

Key features include support for up to 3TB of DDR4-2666 ECC memory across 24 DIMM slots, ensuring massive memory capacity for memory-intensive workloads. The board offers extensive I/O connectivity with multiple PCIe 3.0 slots for high-end graphics cards, storage controllers, and network adapters. Integrated dual 10GbE LAN ports provide high-speed networking capabilities essential for data center environments.

The motherboard’s unique selling points include its robust power delivery system optimized for sustained high-performance operation, comprehensive IPMI 2.0 remote management capabilities for efficient system monitoring, and Supermicro’s proven reliability in mission-critical environments. Its flexible design accommodates various storage configurations with multiple SATA and NVMe connections, making it ideal for organizations requiring scalable, enterprise-grade computing solutions with room for future expansion.

Quote1 Piece(MOQ)

Premium Client Discounts Available

BrandSupermicro
Graphics1 ASPEED AST2500 BMC port(s)
TPM1 TPM Header
Network ControllersNetworking options provided via Ultra Riser
ChipsetIntel C621

Product SKUs

  • MBD-X11DPU-XLL

Physical Stats

  • Form Factor
    Proprietary Ultra
  • Dimension
    17″ x 16.8″ (43.18cm x 42.67cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
  • Core
    Up to 28 cores

System Memory

  • Memory Capacity
    16 DIMM slots
    Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 128GB
    RDIMM: 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C621
  • SATA
    Intel C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Networking options provided via Ultra Riser

Input / Output

  • SATA
    14 SATA3 (6Gbps) port(s)
  • USB
    1 USB 3.2 Gen1 port(s) (1 type A)
    2 USB 3.0 port(s) (2 rear)
  • Video Output
    1 VGA port(s)
  • Serial Port
    1 COM Port(s) (1 rear)
  • DOM
    2 Super DOM (Disk on Module) ports
  • TPM
    1 TPM Header
  • Others
    1 ports SuperDOM

Expansion Slots

  • PCIe
    1 PCIe 3.0 x32 Left Riser Slot,
    1 PCIe 3.0 x8 Center Right Riser Slot,
    1 PCIe 3.0 x40 Far Right Riser Slot

System BIOS

  • BIOS Type
    AMI UEFI

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
Brand

Supermicro
Graphics

1 ASPEED AST2500 BMC port(s)
TPM

1 TPM Header
Network Controllers

Networking options provided via Ultra Riser
Chipset

Intel C621
DIMM Sizes

LRDIMM: 128GBRDIMM: 64GB
BIOS Type

AMI UEFI
Video Output

1 VGA port(s)
DOM

DOM
Dimension

17" x 16.8" (43.18cm x 42.67cm)
PCIe

1 PCIe 3.0 x32 Left Riser Slot, 1 PCIe 3.0 x40 Far Right Riser Slot, 1 PCIe 3.0 x8 Center Right Riser Slot
USB

1 USB 3.2 Gen1 port(s) (1 type A)2 USB 3.0 port(s) (2 rear)
Form Factor

Proprietary Ultra
Memory Type

2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2500
Others

1 ports SuperDOM
Memory Voltage

1.2V
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
Serial Port

1 COM Port(s) (1 rear)
SATA

14 SATA3 (6Gbps) port(s)
Memory Capacity

16 DIMM slotsUp to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

Up to 28 cores
