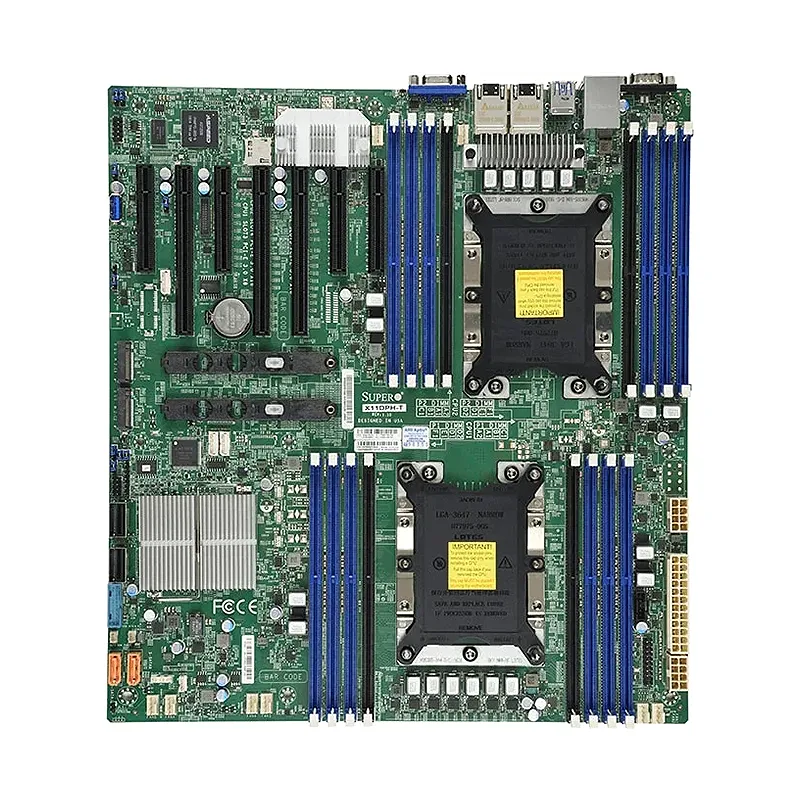

Supermicro MBD-X11DPH-T

* NOTE: Image may not exactly match the product

Supermicro MBD-X11DPH-T

The Supermicro MBD-X11DPH-T is a high-performance dual-socket motherboard designed for enterprise workstations and servers requiring exceptional processing power. Built on the Intel C621 chipset, it supports dual Intel Xeon Scalable processors with up to 28 cores each, delivering massive parallel computing capabilities for demanding applications like virtualization, data analytics, and scientific computing.

Key features include support for up to 1.5TB of DDR4-2666 ECC memory across 12 DIMM slots, ensuring reliable performance under heavy workloads. The board offers extensive connectivity with dual 10GbE LAN ports, multiple PCIe 3.0 slots for GPU acceleration and expansion cards, and comprehensive storage options including M.2 NVMe slots and SATA 3.0 ports.

The motherboard’s compact ATX form factor maximizes density while maintaining excellent thermal management through optimized component placement. Advanced management features include IPMI 2.0 with dedicated LAN for remote monitoring and control. Built with Supermicro’s renowned reliability standards, the X11DPH-T provides enterprise-grade stability, making it ideal for mission-critical applications, high-performance computing clusters, and professional workstations requiring uncompromising performance and dependability.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
ApplicationServer
Form FactorE-ATX
ChipsetIntel C622
Products StatusNew

Product SKUs

  • MBD-X11DPH-T

Physical Stats

  • Form Factor
    E-ATX
  • Dimension
    12″ x 13″ (30.48cm x 33.02cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s

System Memory

  • Memory Capacity
    16 DIMM slots
    Up to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
    Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
    Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 64GB
    RDIMM: 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C622
  • SATA
    Intel C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Network Controllers
    Dual LAN with 10GBase-T with Intel X722 + X557

Input / Output

  • SATA
    10 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 10GBase-T ports
  • USB
    7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    1 COM Port(s) (1 rear)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    3 PCIe 3.0 x16,
    4 PCIe 3.0 x8
  • M.2
    M.2 Interface: 2 PCIe 3.0 x4, RAID 0,1
    Form Factor: 2242/2260/2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI
Brand

Supermicro
Application

Server
Form Factor

E-ATX
Chipset

Intel C622
Products Status

New
Socket

LGA-3647
USB

7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
BIOS Type

AMI UEFI
Memory Capacity

16 DIMM slotsUp to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/sUp to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Memory Type

2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Memory Voltage

1.2V
DIMM Sizes

LRDIMM: 64GBRDIMM: 64GB
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
SATA

10 SATA3 (6Gbps) port(s)
Dimension

12" x 13" (30.48cm x 33.02cm)
Network Controllers

Dual LAN with 10GBase-T with Intel X722 + X557
M.2

1Form Factor: 2242/2260/2280/22110Key: M-Key, M.2 Interface: 2 PCIe 3.0 x4, RAID 0
IPMI

ASPEED AST2500
PCIe

3 PCIe 3.0 x16, 4 PCIe 3.0 x8
TPM

1 TPM Header
Video Output

1 VGA port(s)
LAN

2 RJ45 10GBase-T ports
Serial Port

1 COM Port(s) (1 rear)
