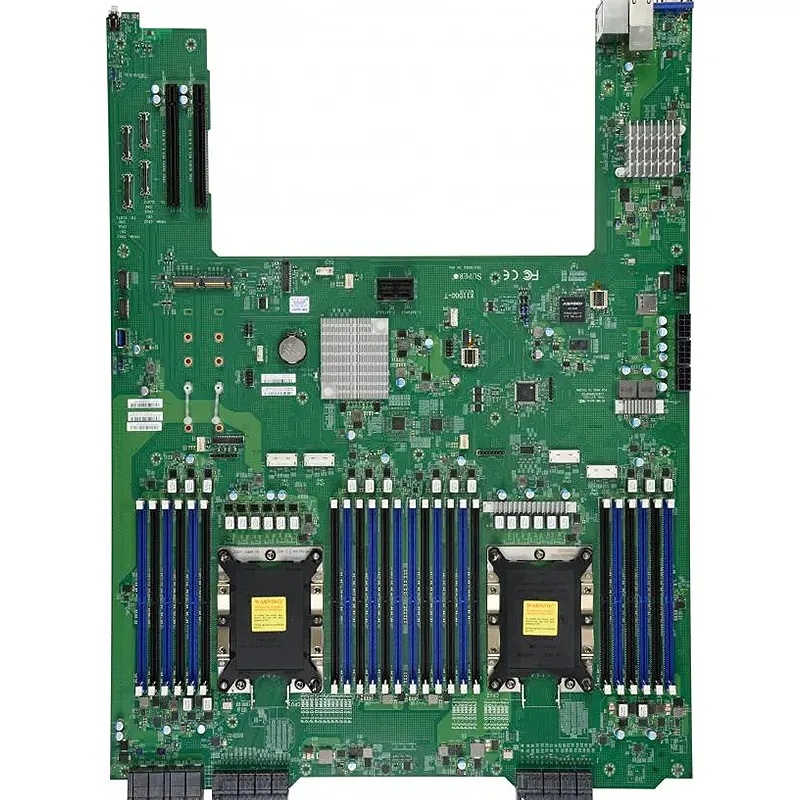

Supermicro MBD-X11DGO-T

* NOTE: Image may not exactly match the product

Supermicro MBD-X11DGO-T

The Supermicro MBD-X11DGO-T is a high-performance dual-socket motherboard designed for enterprise servers and workstations. Built on the Intel C621 chipset, it supports dual Intel Xeon Scalable processors with up to 28 cores each, delivering exceptional computational power for demanding applications.

Key features include 24 DDR4 DIMM slots supporting up to 3TB of registered ECC memory, ensuring massive memory capacity and data integrity. The board offers extensive I/O connectivity with dual 10GbE LAN ports, multiple PCIe 3.0 slots for expansion cards, and comprehensive storage options including M.2 and SATA connectors.

The motherboard excels in virtualization, database management, scientific computing, and enterprise applications requiring high core counts and memory bandwidth. Its robust power delivery system and server-grade components ensure reliable 24/7 operation in mission-critical environments.

Unique selling points include Supermicro’s proven server expertise, comprehensive remote management capabilities through IPMI, and cost-effective scaling for organizations needing enterprise-level performance without proprietary vendor lock-in. The board’s flexible design accommodates various chassis configurations while maintaining optimal thermal management and system stability.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
Graphics1 ASPEED AST2500 BMC port(s)
TPM1 TPM Header
Network ControllersDual LAN with Intel X540 10GBase-T Ethernet Controller
M.2M.2 Interface: 2 PCIe 3.0 x4Form Factor: 2260/2280/22110Key: M-Key

Product SKUs

  • MBD-X11DGO-T

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    22.78″ x 17″ (57.86cm x 43.18cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
  • Core
    Up to 28 cores

System Memory

  • Memory Capacity
    24 DIMM slots
    Up to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/s
    (2933MHz in two DIMMs per channel supported on Rev 1.10 MB only)
    Up to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 128GB
    RDIMM: 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C621
  • SATA
    Intel C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Dual LAN with Intel X540 10GBase-T Ethernet Controller

Input / Output

  • SATA
    8 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 10GBase-T ports
  • USB
    1 USB 3.2 Gen1 port(s) (1 type A)
    2 USB 3.0 port(s) (2 rear)
  • Video Output
    1 VGA port(s)
  • Serial Port
    1 COM Port(s) (1 header)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    2 PCIe 3.0 x16
    4 PCIe 3.0 x16 to midplane
  • M.2
    M.2 Interface: 2 PCIe 3.0 x4
    Form Factor: 2260/2280/22110
    Key: M-Key
    M.2 Type: NVMe

System BIOS

  • BIOS Type
    AMI UEFI
Brand

Supermicro
Graphics

1 ASPEED AST2500 BMC port(s)
TPM

1 TPM Header
Network Controllers

Dual LAN with Intel X540 10GBase-T Ethernet Controller
M.2

M.2 Interface: 2 PCIe 3.0 x4Form Factor: 2260/2280/22110Key: M-Key
Chipset

Intel C621
DIMM Sizes

LRDIMM: 128GBRDIMM: 64GB
BIOS Type

AMI UEFI
LAN

2 RJ45 10GBase-T ports
Video Output

1 VGA port(s)
Dimension

22.78" x 17" (57.86cm x 43.18cm)
PCIe

2 PCIe 3.0 x164 PCIe 3.0 x16 to midplane
USB

1 USB 3.2 Gen1 port(s) (1 type A)2 USB 3.0 port(s) (2 rear)
Form Factor

Proprietary
Memory Type

2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2500
Memory Voltage

1.2V
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, 3 UPI up to 10.4 GT/s, CPU TDP supports Up to 205W TDP
Serial Port

1 COM Port(s) (1 header)
SATA

8 SATA3 (6Gbps) port(s)
Memory Capacity

24 DIMM slotsUp to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/s(2933MHz in two DIMMs per channel supported on Rev 1.10 MB only) Up to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

Up to 28 cores
