Supermicro MBD-X10SLE-F

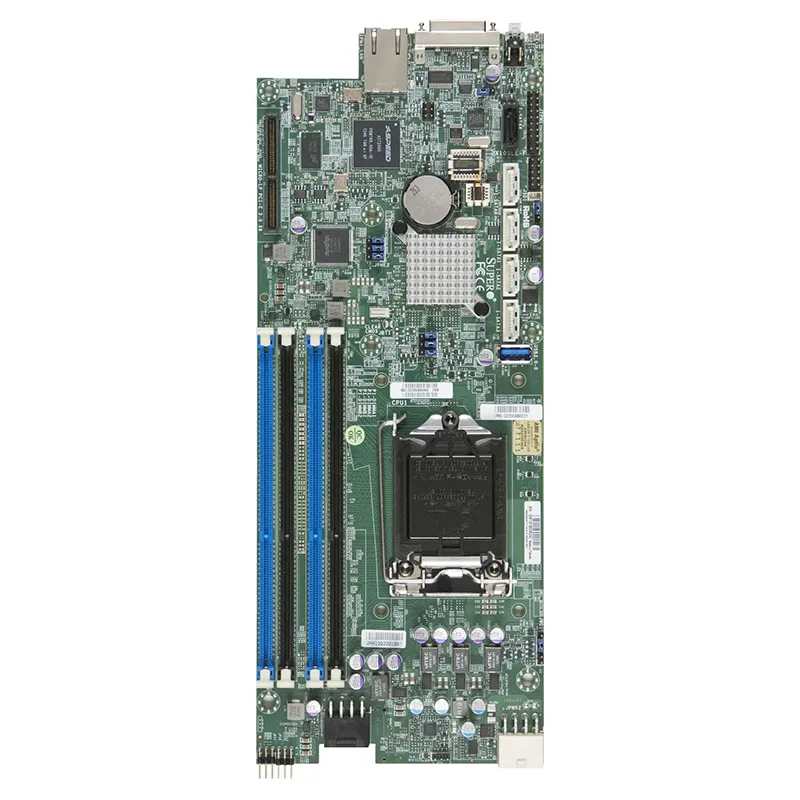

* NOTE: Image may not exactly match the product

Supermicro MBD-X10SLE-F

The Supermicro MBD-X10SLE-F is a high-performance micro-ATX server motherboard designed for small business and entry-level enterprise applications. Built on the Intel C224 chipset, it supports Intel Xeon E3-1200 v3/v4 and 4th generation Core processors, delivering exceptional processing power in a compact form factor.

Key features include dual Gigabit Ethernet ports for enhanced network connectivity, four DDR3 ECC UDIMM slots supporting up to 32GB of memory, and comprehensive I/O options including USB 3.0, SATA 6Gb/s, and PCIe expansion slots. The board features IPMI 2.0 with dedicated LAN for remote management, hardware monitoring capabilities, and Supermicro’s SuperDoctor5 for system health monitoring.

The motherboard excels in reliability with ECC memory support, enterprise-grade components, and robust thermal design. Its space-efficient micro-ATX layout makes it ideal for compact server builds, workstations, and network appliances where performance and reliability cannot be compromised. The dual LAN configuration provides redundancy and load balancing capabilities, while the comprehensive management features reduce operational overhead and enable efficient remote administration.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
BIOS FeaturesDMI (SMBIOS) 2.7ACPI 5.0USB Keyboard support
GraphicsAspeed AST2400 BMCvia KVM connector
Serial Port / Header1 COM Port (1 rear), via KVM connector
TPM1 TPM Header

Product SKUs

  • MBD-X10SLE-F
    X10SLE-F

Physical Stats

  • Form Factor
    Proprietary
  • Dimensions
    4.6″ x 11.7″ (11.68cm x 29.72cm)

Processor/Cache

  • CPU
    Intel 4th Generation Core? i3 series, Intel Celeron, Intel Pentiumv, Intel Xeon processor E3-1200 v3, Intel Xeon Processor E3-1200 v4 series.
    Single Socket LGA 1150 supported

System Memory

  • Memory Capacity
    Up to 32GB Unbuffered ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots
    4x 240-pin DDR3 DIMM sockets
  • Memory Type
    1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
  • DIMM Sizes
    2GB, 4GB, 8GB
  • Memory Voltage
    1.5V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C224 Express PCH
  • SATA
    Intel C224 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    Support for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Network Controllers
    1 Realtek RTL8211E PHY (dedicated IPMI)
  • Graphics
    Aspeed AST2400 BMC
    via KVM connector

Input / Output

  • SATA
    4 SATA3 (6Gbps) port
  • LAN
    1 RJ45 Dedicated IPMI LAN port
  • USB
    2 USB 2.0 via KVM connector
  • Video Output
    1 VGA port,
    via KVM connector
  • Serial Port / Header
    1 COM Port (1 rear), via KVM connector
  • TPM
    1 TPM Header

Expansion Slots

  • PCI-E
    1 PCI-E 3.0 x8 (Micro Low Profile)
    for Dual GbE, 10GbE or IB AOC

System BIOS

  • BIOS Type
    128Mb SPI Flash EEPROM with AMI BIOS
  • BIOS Features
    DMI (SMBIOS) 2.7
    ACPI 5.0
    USB Keyboard support

Management

  • Power Configurations
    ACPI Power Management
    Main Switch Override Mechanism
    Power-on mode for AC power recovery
    Internal/External modem ring-on
Brand

Supermicro
BIOS Features

DMI (SMBIOS) 2.7ACPI 5.0USB Keyboard support
Graphics

Aspeed AST2400 BMCvia KVM connector
Serial Port / Header

1 COM Port (1 rear), via KVM connector
TPM

1 TPM Header
PCI-E

1 PCI-E 3.0 x8 (Micro Low Profile)for Dual GbE, 10GbE or IB AOC
Network Controllers

1 Realtek RTL8211E PHY (dedicated IPMI)
Chipset

Intel C224 Express PCH
DIMM Sizes

2GB, 4GB, 8GB
BIOS Type

128MB SPI Flash EEPROM with AMI BIOS
LAN

1 RJ45 Dedicated IPMI LAN port
Video Output

1 VGA port, via KVM connector
USB

2 USB 2.0 via KVM connector
Form Factor

Proprietary
Memory Type

1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Application

Server
IPMI

Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Memory Voltage

1.5V
CPU

Intel 4th Generation Core i3 series, Intel Celeron, Intel Pentiumv, Intel Xeon processor E3-1200 v3, Intel Xeon Processor E3-1200 v4 series.Single Socket LGA 1150 supported
SATA

4 SATA3 (6Gbps) port
Memory Capacity

DDR3-1600MHz, in 4 DIMM slots4x 240-pin DDR3 DIMM sockets, Up to 32GB Unbuffered ECC UDIMM
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Dimensions

4.6" x 11.7" (11.68cm x 29.72cm)
