| Brand | Supermicro |
|---|---|
| Graphics | 1 ASPEED AST2600 BMC port(s) |
| TPM | 1 TPM Header |
| Network Controllers | Dual LAN with 10GbE with Mellanox ConnectX-4 Lx EN, Or One(1) 25Gb port with the 2nd port being redundant/failover |
| M.2 | M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2280/22110Key: M-Key |
| DIMM Sizes | 16GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI UEFI |
| Dimension | 12" x 13" (30.48cm x 33.02cm) |
| PCIe | 6 PCIe 4.0 x8 LP SlimSAS connector |
| USB | 4 USB 3 port(s) (2 via header; 2 Type A)1 USB 2 port(s) (1 via header) |
| Form Factor | Proprietary |
| Memory Type | 3200 MT/s ECC DDR4 LRDIMM, RDIMM |
| Application | Server |
| Memory Voltage | 1.2V |
| CPU | Ampere Altra and Ampere Altra MaxSingle Socket FCLGA-4926 supported, CPU TDP supports Up to 250W TDP |
| Serial Port | 1 COM Port(s) (1 Micro USB for COM (Debug)) |
| Memory Capacity | 16 DIMM slotsUp to 4TB ECC Registered LRDIMM, DDR4-3200MT/s, DDR4-3200MT/s; Up to 4TB ECC Registered RDIMM |
| Core | Up to 128 cores / 16MB Cache |

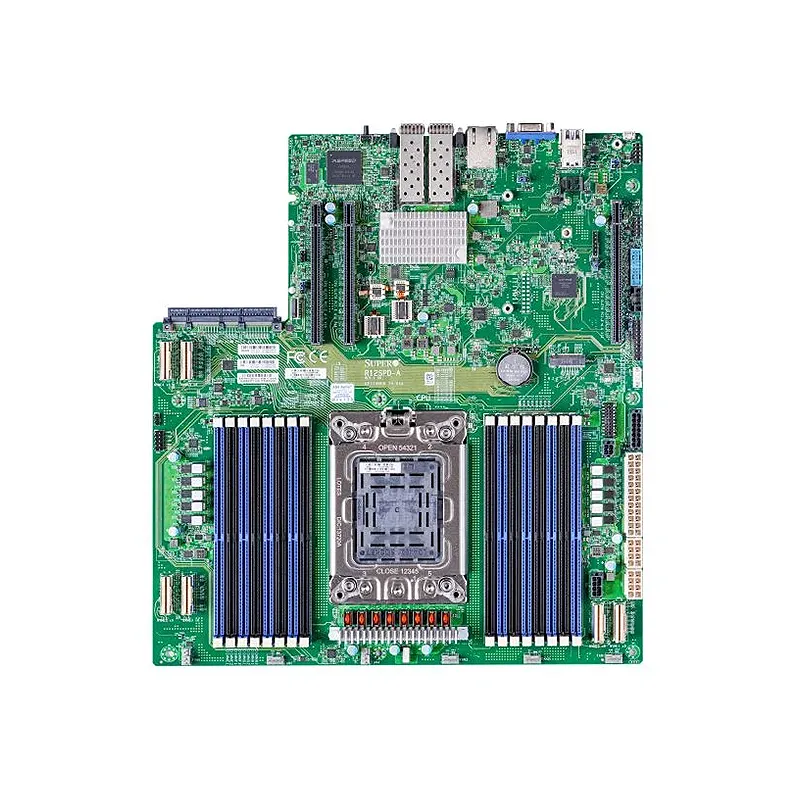

* NOTE: Image may not exactly match the product
Supermicro MBD-R12SPD-R
The Supermicro MBD-R12SPD-R is a high-performance server motherboard designed for demanding enterprise applications. Built on the AMD EPYC 9004 series processor platform, it delivers exceptional computational power with support for up to 128 cores and 12-channel DDR5 memory architecture, enabling up to 6TB of system memory. Key features include dual 10GbE networking, multiple PCIe 5.0 slots for maximum expansion flexibility, and comprehensive storage options with support for NVMe drives. The board incorporates advanced thermal management and power efficiency technologies, making it ideal for data centers, virtualization, cloud computing, and AI workloads. Its robust design ensures enterprise-grade reliability while the modular architecture allows for easy customization and scalability. The motherboard’s unique selling points include its cutting-edge DDR5 support, extensive I/O capabilities, and optimized performance-per-watt ratio, making it a cost-effective solution for organizations requiring maximum processing power and future-proof infrastructure investments.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Brand | Supermicro |
|---|---|
| Graphics | 1 ASPEED AST2600 BMC port(s) |
| TPM | 1 TPM Header |
| Network Controllers | Dual LAN with 10GbE with Mellanox ConnectX-4 Lx EN, Or One(1) 25Gb port with the 2nd port being redundant/failover |
| M.2 | M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2280/22110Key: M-Key |
