| Brand | Supermicro |
|---|---|
| PCI-Express | 1 PCI-E 3.0 x16 slot |
| Cores | 8 Core/8 Thread |
| Network Controllers | 4x 1GbE with Intel I350-AM41 Realtek RTL8211E PHY (dedicated IPMI) |
| M.2 | Interface: 1 PCI-E 3.0 x4Form factor: 2280Key: M-key |
| DIMM Sizes | 128GB, 16GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 128MB Flash EEPROM |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports6 USB 2.0 ports |
| Form Factor | Mini-ITX |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 2133 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2500 BMC |
| Others | 1 COM port header1 TPM 2.0 header |
| VGA | 1 VGA port |
| Memory Voltage | 1.2V |
| CPU | Single AMD EPYC 3201 SoC Processor |
| SATA | 4 SATA3 (6 Gbps) ports |
| Memory Capacity | 4 DIMM slotsSupports up to 512GB Registered ECC DDR4 2133MHz SDRAM in 4 DIMMs2-channel memory bus |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 6.7" x 6.7" (17cm x 17cm) |
* NOTE: Image may not exactly match the product

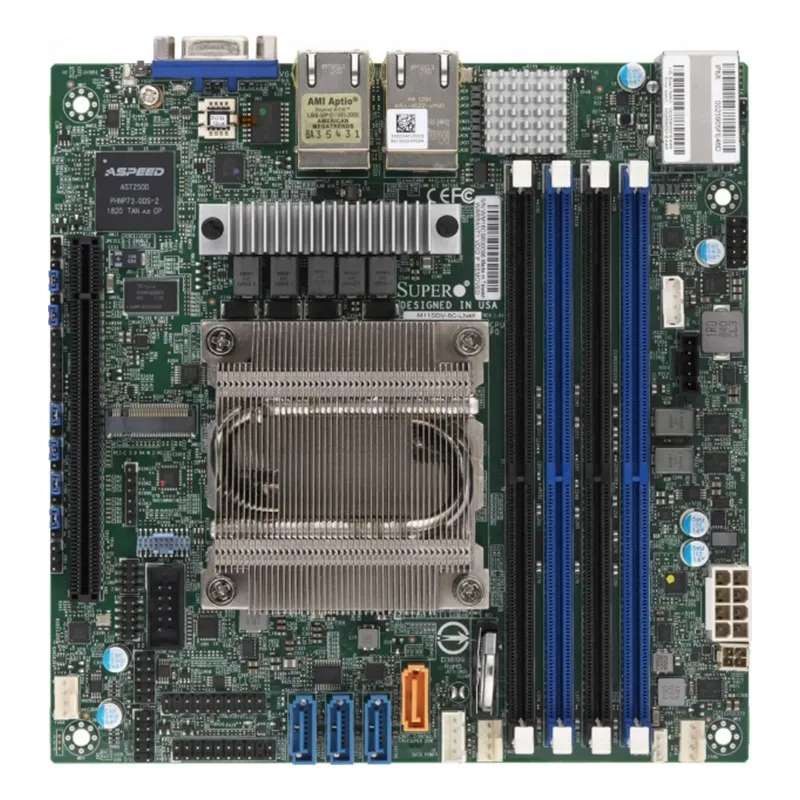

Supermicro MBD-M11SDV-8CT-LN4F
The Supermicro MBD-M11SDV-8CT-LN4F is a high-performance Mini-ITX server motherboard featuring an integrated AMD EPYC 3251 8-core processor, delivering enterprise-grade computing power in an ultra-compact form factor. Key highlights include quad 10GbE SFP+ networking ports for exceptional connectivity, support for up to 128GB ECC UDIMM memory, and comprehensive I/O including multiple SATA ports, PCIe slots, and USB connections. This board excels in edge computing, network appliances, and space-constrained server deployments where maximum performance per square inch is critical. Its unique combination of EPYC processing power, enterprise networking capabilities, and Mini-ITX efficiency makes it ideal for software-defined networking, virtualization, and high-density computing applications requiring reliable, low-power operation.
Quote1 Piece(MOQ)
Premium Client Discounts Available
| Brand | Supermicro |
|---|---|
| PCI-Express | 1 PCI-E 3.0 x16 slot |
| Cores | 8 Core/8 Thread |
| Network Controllers | 4x 1GbE with Intel I350-AM41 Realtek RTL8211E PHY (dedicated IPMI) |
| M.2 | Interface: 1 PCI-E 3.0 x4Form factor: 2280Key: M-key |
