| Brand | Supermicro |
|---|---|
| PCI-Express | 1 PCI-E 3.0 x16 slot |
| Cores | 8 Core/16 Thread |
| Network Controllers | 4x 1GbE with Intel I350-AM41 Realtek RTL8211E PHY (dedicated IPMI) |
| M.2 | Interface: 1 PCI-E 3.0 x4Form factor: 2280Key: M-key |
| DIMM Sizes | 128GB, 16GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 128MB Flash EEPROM |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports6 USB 2.0 ports |
| Form Factor | Mini-ITX |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 2666 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2500 BMC |
| Others | 1 COM port header1 TPM 2.0 header |
| VGA | 1 VGA port |
| Memory Voltage | 1.2V |
| CPU | Single AMD EPYC 3251 SoC Processor |
| SATA | 4 SATA3 (6 Gbps) ports |
| Memory Capacity | 4 DIMM slotsSupports up to 512GB Registered ECC DDR4 2666MHz SDRAM in 4 DIMMs2-channel memory bus |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 6.7" x 6.7" (17cm x 17cm) |

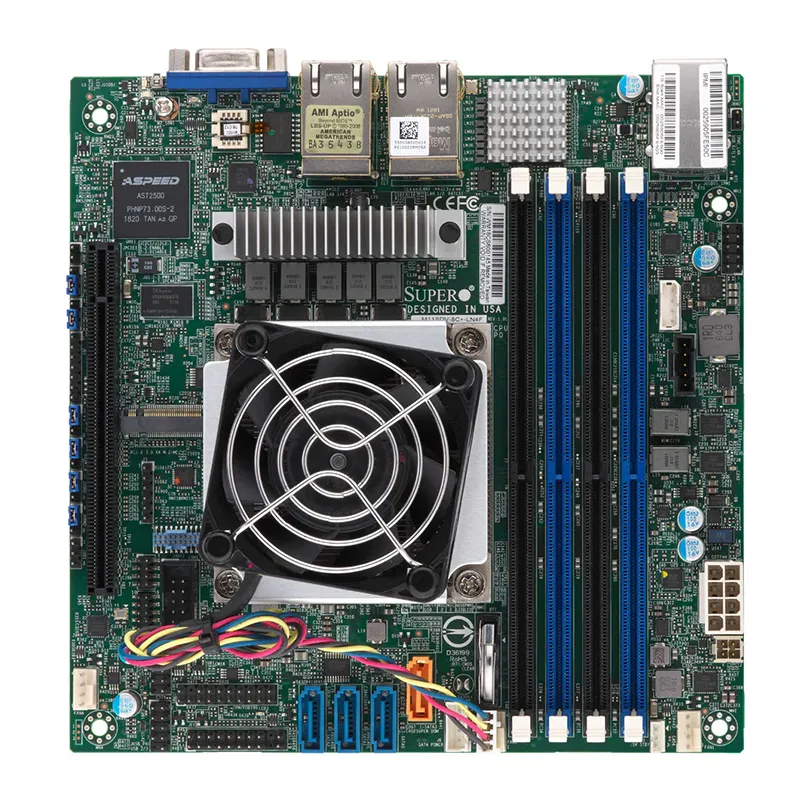

* NOTE: Image may not exactly match the product
Supermicro MBD-M11SDV-8C+-LN4F
The Supermicro MBD-M11SDV-8C-LN4F is a high-performance Mini-ITX motherboard featuring an integrated AMD EPYC 3251 8-core processor, delivering enterprise-grade computing power in an ultra-compact form factor. Key highlights include quad 10GbE LAN ports for exceptional network throughput, support for up to 128GB ECC SODIMM memory, and comprehensive I/O including USB 3.0, SATA 6Gb/s, and M.2 slots. This board excels in edge computing, network appliances, and space-constrained server deployments where maximum performance per square inch is critical. Its integrated IPMI 2.0 with dedicated LAN ensures robust remote management capabilities, while the fanless design enables silent operation. The combination of enterprise reliability, dense connectivity, and compact design makes it ideal for software-defined networking, security appliances, and high-density computing clusters.
Quote1 Piece(MOQ)
| Brand | Supermicro |
|---|---|
| PCI-Express | 1 PCI-E 3.0 x16 slot |
| Cores | 8 Core/16 Thread |
| Network Controllers | 4x 1GbE with Intel I350-AM41 Realtek RTL8211E PHY (dedicated IPMI) |
| M.2 | Interface: 1 PCI-E 3.0 x4Form factor: 2280Key: M-key |
Inquiry Now
Contact us for more discounts!
