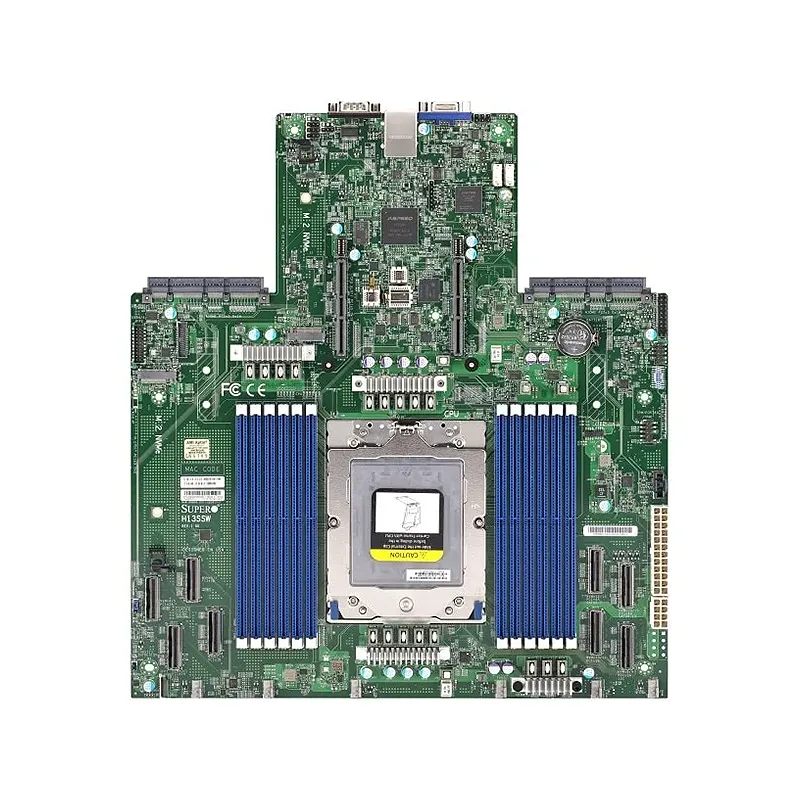

* NOTE: Image may not exactly match the product

Supermicro MBD-H13SSW

The Supermicro MBD-H13SSW is a high-performance mini-ITX motherboard designed for AMD EPYC 9004 series processors, delivering enterprise-grade computing power in an ultra-compact form factor. Key features include support for up to 128 cores, 1TB DDR5 memory capacity across four DIMM slots, dual 10GbE networking ports, and comprehensive I/O including USB 3.2, SATA 6Gb/s, and M.2 NVMe storage slots. The board features advanced thermal management, IPMI 2.0 remote management capabilities, and enterprise-level reliability with ECC memory support. Its unique selling proposition lies in cramming data center-class performance into a space-efficient 6.7″ x 6.7″ design, making it ideal for edge computing, high-density deployments, compact workstations, and applications requiring maximum processing power with minimal footprint. The motherboard enables organizations to achieve exceptional compute density while maintaining enterprise features like remote management and robust connectivity options.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
BIOS FeaturesACPI 6.4SMBIOS 3.5 or laterUEFI 2.8Plug and Play (PnP)USB Keyboard support
Graphics1 ASPEED AST2600 BMC port(s)
TPM1 TPM Header
M.2M.2 Interface: 2 PCIe 3.0 x2Form Factor: 2280/22110Key: M-Key

Product SKUs

  • MBD-H13SSW

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    12.29″ x 13.4″ (31.22cm x 34.04cm)

Processor

  • CPU
    AMD EPYC 9004/9005 Series Processors (*AMD EPYC 9005 series drop-in support requires board revision 2.x)
    Single Socket SP5 supported, CPU TDP supports Up to 400W TDP
  • Core
    Up to 160 cores, 320 threads

System Memory

  • Memory Capacity
    12 DIMM slots
    Up to 4.5TB 3DS ECC Registered RDIMM, DDR5-6000MT/s
  • Memory Type
    4800/6000 MT/s ECC DDR5 RDIMM (3DS) Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor, 1DPC) Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor, 1DPC)* (*Board revision 2.x required)
  • DIMM Sizes
    16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 192GB, 256GB, 384GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    System on Chip
  • IPMI
    ASPEED AST2600 BMC
  • Graphics
    1 Aspeed AST2600 BMC port(s)
  • Network Controllers

Input / Output

  • LAN
    1 RJ45 Dedicated IPMI LAN port
  • USB
    2 USB 3.0 port(s) (2 USB)
    2 USB 2.0 port(s) (2 via header)
  • Video Output
    1 VGA port(s)
  • Serial Port
    1 COM Port(s) (1 Serial Port)
  • TPM
    1 TPM Header
  • Others
    6 MCIO (PCIe 5.0 x8) Port(s)
    2 MCIO (PCIe 5.0 x8/SATA3) Port(s)

Expansion Slots

  • PCIe
    1 PCIe 5.0 x16 Right Riser Slot,
    1 PCIe 5.0 x16 Left Riser Slot,
    2 PCIe 5.0 x16 AIOM Networking Slot
  • M.2
    M.2 Interface: 2 PCIe 3.0 x2
    Form Factor: 2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI 32MB SPI Flash EEPROM
  • BIOS Features
    ACPI 6.4
    SMBIOS 3.5 or later
    UEFI 2.8
    Plug and Play (PnP)
    USB Keyboard support

Management

  • Power Configurations
    ACPI Power Management, Power-on mode control for AC power loss recovery
Brand

Supermicro
BIOS Features

ACPI 6.4SMBIOS 3.5 or laterUEFI 2.8Plug and Play (PnP)USB Keyboard support
Graphics

1 ASPEED AST2600 BMC port(s)
TPM

1 TPM Header
M.2

M.2 Interface: 2 PCIe 3.0 x2Form Factor: 2280/22110Key: M-Key
Chipset

System on Chip
DIMM Sizes

128GB, 16GB, 192GB, 24GB, 256GB, 32GB, 384GB, 48GB, 64GB, 96GB
BIOS Type

AMI 32MB SPI Flash EEPROM
LAN

1 RJ45 Dedicated IPMI LAN port
Video Output

1 VGA port(s)
Dimension

12.29" x 13.4" (31.22cm x 34.04cm)
PCIe

1 PCIe 5.0 x16 Left Riser Slot, 1 PCIe 5.0 x16 Right Riser Slot, 2 PCIe 5.0 x16 AIOM Networking Slot
USB

2 USB 3.0 port(s) (2 USB)2 USB 2.0 port(s) (2 via header)
Form Factor

Proprietary
Memory Type

4800/6000 MT/s ECC DDR5 RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2600 BMC
Others

6 MCIO (PCIe 5.0 x8) Port(s)2 MCIO (PCIe 5.0 x8/SATA3) Port(s)
Memory Voltage

1.1V
CPU

AMD EPYC 9004/9005 Series Processors (*AMD EPYC 9005 series drop-in support requires board revision 2.x)Single Socket SP5 supported, CPU TDP supports Up to 400W TDP
Serial Port

1 COM Port(s) (1 Serial Port)
Memory Capacity

12 DIMM slotsUp to 4.5TB 3DS ECC Registered RDIMM, DDR5-6000MT/s
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

320 threads, Up to 160 cores
