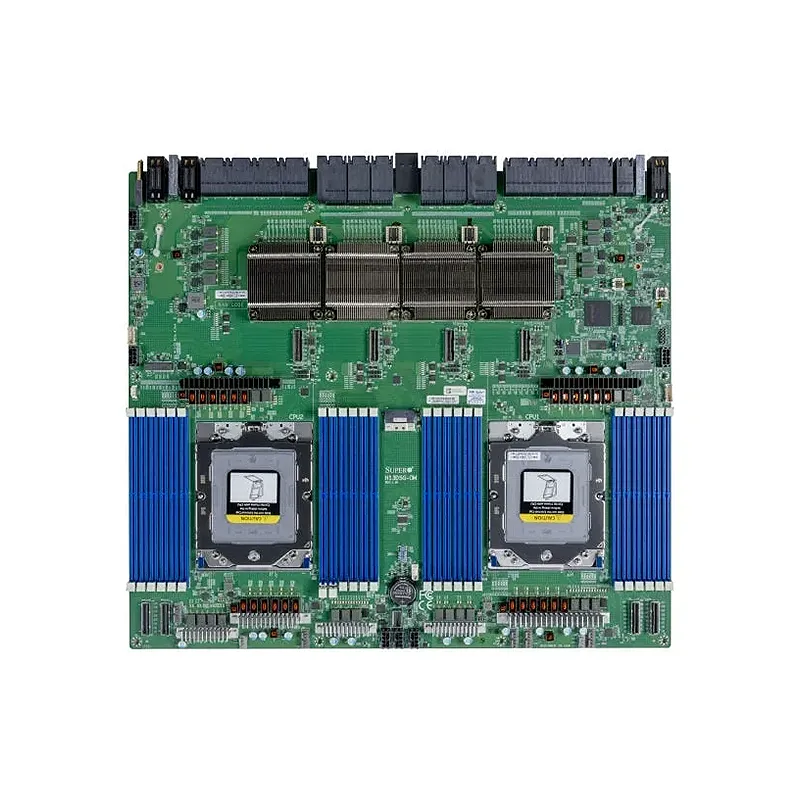

Supermicro MBD-H13DSG-OM

* NOTE: Image may not exactly match the product

Supermicro MBD-H13DSG-OM

The Supermicro MBD-H13DSG-OM is a high-performance dual-socket server motherboard designed for AMD EPYC 9004 series processors, delivering exceptional computing power for enterprise and data center applications. This E-ATX motherboard supports up to 128 cores per system with 12-channel DDR5 memory architecture, enabling up to 6TB of total memory capacity for memory-intensive workloads.

Key features include 8 PCIe 5.0 slots for maximum expansion flexibility, dual 25GbE networking ports for high-speed connectivity, and comprehensive storage options with multiple SATA and NVMe interfaces. The board incorporates advanced thermal management with optimized airflow design and supports Supermicro’s IPMI 2.0 for remote management capabilities.

Ideal for virtualization, cloud computing, AI/ML workloads, and high-performance computing environments, this motherboard offers enterprise-grade reliability with redundant power options and ECC memory support. Its unique selling points include exceptional scalability, cutting-edge DDR5 and PCIe 5.0 technologies, and Supermicro’s proven track record in server-grade hardware engineering, making it perfect for organizations requiring maximum performance, reliability, and future-proofing in their server infrastructure.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
BIOS FeaturesACPI 6.4SMBIOS 3.5 or laterUEFI 2.8Plug and Play (PnP)USB Keyboard support
TPM1 TPM Header
M.2M.2 Interface: 2 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
ChipsetSystem on Chip

Product SKUs

  • MBD-H13DSG-OM

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    17″ x 14.96″ (43.18cm x 37.99cm)

Processor

  • CPU
    AMD EPYC 9004/9005 Series Processors (*AMD EPYC 9005 series drop-in support requires board revision 2.x)
    Dual Socket SP5 supported, CPU TDP supports Up to 400W TDP
  • Core
    Up to 320 cores, 640 threads

System Memory

  • Memory Capacity
    24 DIMM slots
    Up to 9TB 3DS ECC Registered RDIMM, DDR5-6000MT/s
  • Memory Type
    4800/6000 MT/s ECC DDR5 RDIMM (3DS) Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor, 1DPC) Up to 9TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor, 1DPC)* (*Board revision 2.x required)
  • DIMM Sizes
    16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 192GB, 256GB, 384GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    System on Chip
  • IPMI
    ASPEED AST2600 BMC
  • Network Controllers

Input / Output

  • LAN
    1 RJ45 Dedicated IPMI LAN port via I/O board
  • TPM
    1 TPM Header
  • Others
    2 MCIO (PCIe 5.0 x8/SATA3) Port(s)
    6 MCIO (PCIe 5.0 x8) Port(s)

Expansion Slots

  • PCIe
  • M.2
    M.2 Interface: 2 PCIe 3.0 x4
    Form Factor: 2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI 32MB SPI Flash EEPROM
  • BIOS Features
    ACPI 6.4
    SMBIOS 3.5 or later
    UEFI 2.8
    Plug and Play (PnP)
    USB Keyboard support

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
Brand

Supermicro
BIOS Features

ACPI 6.4SMBIOS 3.5 or laterUEFI 2.8Plug and Play (PnP)USB Keyboard support
TPM

1 TPM Header
M.2

M.2 Interface: 2 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
Chipset

System on Chip
DIMM Sizes

128GB, 16GB, 192GB, 24GB, 256GB, 32GB, 384GB, 48GB, 64GB, 96GB
BIOS Type

AMI 32MB SPI Flash EEPROM
LAN

1 RJ45 Dedicated IPMI LAN port via I/O board
Dimension

17" x 14.96" (43.18cm x 37.99cm)
Form Factor

Proprietary
Memory Type

4800/6000 MT/s ECC DDR5 RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2600 BMC
Others

2 MCIO (PCIe 5.0 x8/SATA3) Port(s)6 MCIO (PCIe 5.0 x8) Port(s)
Memory Voltage

1.1V
CPU

AMD EPYC 9004/9005 Series Processors (*AMD EPYC 9005 series drop-in support requires board revision 2.x)Dual Socket SP5 supported, CPU TDP supports Up to 400W TDP
Memory Capacity

24 DIMM slotsUp to 9TB 3DS ECC Registered RDIMM, DDR5-6000MT/s
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

640 threads, Up to 320 cores
