| Brand | Supermicro |
|---|---|
| Application | Server |
| Form Factor | Proprietary |
| Products Status | New |
| Socket | LGA-4189 |
| USB | 1 Type A), 2 via header, 7 USB 3.0 ports (4 rear |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| Memory Capacity | 16 DIMM slotsSupports up to 4TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs8-channel memory bus |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Memory Voltage | 1.2V |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| CPU | Single AMD EPYC 7003/7002 Series ProcessorSocket SP3 |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| SATA | 2 SATA3 (6 Gbps) ports |
| Network Controllers | 2x 10GBase-T LAN Ports via Broadcom BCM574161 Realtek RTL8211F PHY (dedicated IPMI) |
| M.2 | 22110Key: M-Key, Interface: 2 PCI-E 4.0 x2Form Factor: 2280 |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2500 BMC |
| PCIe | 1 PCIe 4.0 x32 Left Riser Slot1 PCIe 4.0 x16 Right Riser Slot |
| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 5.1USB Keyboard SupportSMBIOS 3.1.1 |
| Cores | Up to 64 Cores |
| LAN | 2 RJ45 10GBase-T LAN ports1 RJ45 Dedicated IPMI LAN port |
| VGA | 1 VGA port |
| NVMe | 12 NVMe (PCI-E Gen4) |
| SATA/NVMe Hybrid | 16 SATA3 or 4 NVMe via SlimSAS (PCI-E Gen4) |
* NOTE: Image may not exactly match the product

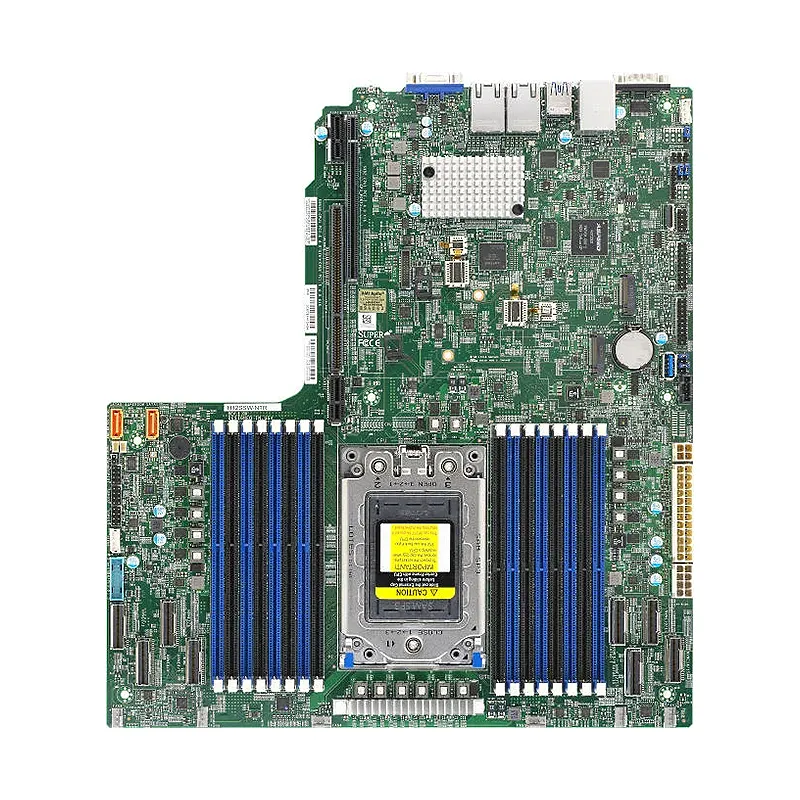

Supermicro MBD-H12SSW-NTR
The Supermicro MBD-H12SSW-NTR is a high-performance server motherboard designed for demanding enterprise workloads. Built on the AMD SP3 socket, it supports 3rd Gen AMD EPYC processors with up to 64 cores, delivering exceptional computational power. Key features include 8 DDR4 memory slots supporting up to 2TB of registered ECC memory, dual 10GbE LAN ports for high-speed networking, and comprehensive I/O expansion with multiple PCIe 4.0 slots. The board incorporates advanced management capabilities through IPMI 2.0 and supports remote monitoring and control. Its compact design optimizes space efficiency while maintaining enterprise-grade reliability and performance. Ideal for virtualization, cloud computing, database applications, and high-performance computing environments, this motherboard offers superior price-to-performance ratio with robust security features and energy-efficient operation.
