| Brand | Supermicro |
|---|---|
| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 5.1USB Keyboard SupportSMBIOS 3.1.1 |
| PCI-Express | 1 PCI-E 4.0 x32 Left Riser Slot1 PCI-E 4.0 x16 Right Riser Slot |
| Cores | Up to 64 Cores |
| Network Controllers | 2x 10GbE LAN Ports via Broadcom BCM574161 Realtek RTL8211E PHY (dedicated IPMI) |
| M.2 | 22110Key: M-Key, Interface: 2 SATA/PCI-E 4.0 x2Form Factor: 2280 |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| LAN | 2 RJ45 10GBase-T LAN ports1 RJ45 Dedicated IPMI LAN port |
| NVMe | 2 NVMe (PCI-E Gen4) |
| USB | 1 Type A), 2 via header, 7 USB 3.0 ports (4 rear |
| Form Factor | Proprietary WIO |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2500 BMC |
| Others | 1 COM port2 SuperDOM power connectors1 TPM 1.2/2.0 header |
| VGA | 1 VGA port |
| SATA/NVMe Hybrid | 16 SATA3 / 4 NVMe (PCI-E Gen4) |
| Memory Voltage | 1.2V |
| CPU | Single AMD EPYC 7003/7002 Series ProcessorSocket SP3 |
| SATA | 2 SATA3 (6 Gbps) ports |
| Memory Capacity | 8 DIMM slotsSupports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs8-channel memory bus |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 8.15" x 13.05" |

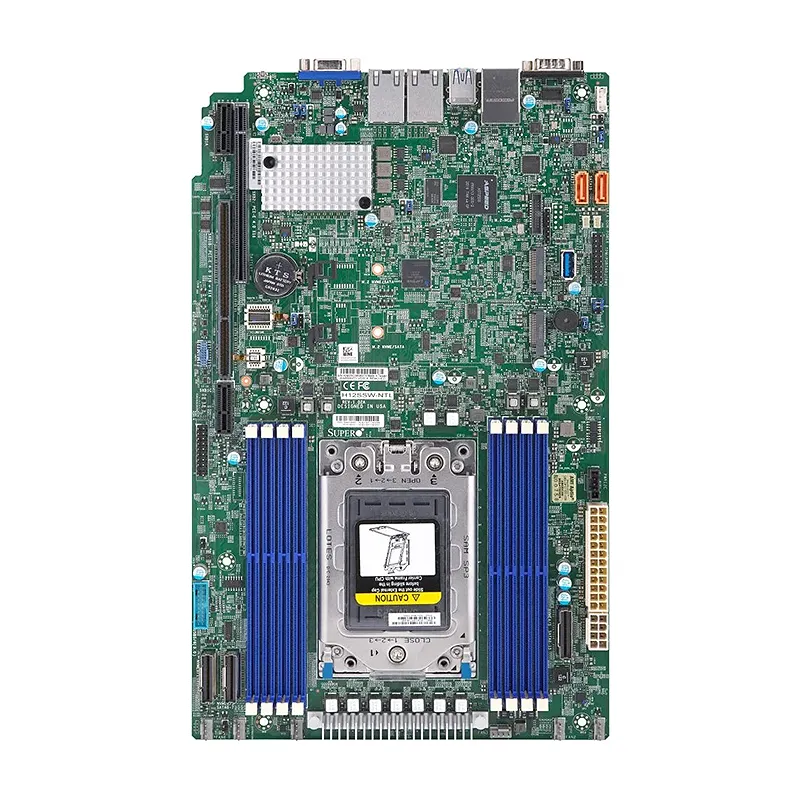

* NOTE: Image may not exactly match the product
Supermicro MBD-H12SSW-NTL
The Supermicro MBD-H12SSW-NTL is a high-performance single-socket motherboard designed for AMD EPYC 7003/7002 series processors, delivering enterprise-grade computing power in a compact form factor. This motherboard features 8 DIMM slots supporting up to 2TB of DDR4-3200 ECC memory, dual 10GbE LAN ports for high-speed networking, and comprehensive I/O including multiple PCIe 4.0 slots for maximum expansion flexibility. Built with Supermicro’s renowned reliability and energy efficiency, it includes IPMI 2.0 with dedicated management LAN for remote monitoring and control. The board’s optimized thermal design and robust power delivery system ensure stable operation under demanding workloads, making it ideal for edge computing, virtualization, storage servers, and AI/ML applications where space is premium but performance cannot be compromised.
