| Brand | Supermicro |
|---|---|
| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 5.1USB Keyboard SupportSMBIOS 3.1.1 |
| PCI-Express | 1 PCI-E 4.0 x32 Left Riser Slot1 PCI-E 4.0 x16 Right Riser Slot |
| Cores | Up to 64 Cores |
| Network Controllers | 2x 1GbE LAN Ports via Broadcom BCM5720L1 Realtek RTL8211E PHY (dedicated IPMI) |
| M.2 | 22110Key: M-Key, Interface: 2 SATA/PCI-E 4.0 x2Form Factor: 2280 |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port |
| NVMe | 2 NVMe (PCI-E Gen4) |
| USB | 1 Type A), 2 via header, 7 USB 3.0 ports (4 rear |
| Form Factor | Proprietary WIO |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2500 BMC |
| Others | 1 COM port2 SuperDOM power connectors1 TPM 1.2/2.0 header |
| VGA | 1 VGA port |
| SATA/NVMe Hybrid | 16 SATA3 / 4 NVMe (PCI-E Gen4) |
| Memory Voltage | 1.2V |
| CPU | Single AMD EPYC 7003/7002 Series ProcessorSocket SP3 |
| SATA | 2 SATA3 (6 Gbps) ports |
| Memory Capacity | 8 DIMM slotsSupports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs8-channel memory bus |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 8.15" x 13.05" |

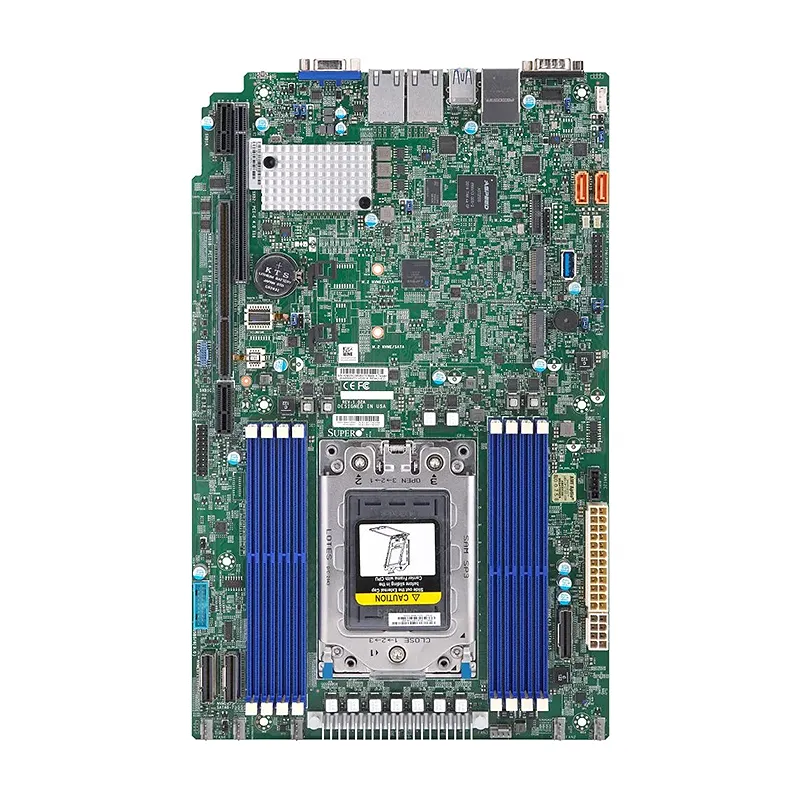

* NOTE: Image may not exactly match the product
Supermicro MBD-H12SSW-iNL
The Supermicro MBD-H12SSW-iNL is a high-performance mini-ITX motherboard designed for compact server and workstation applications. Built around the AMD SP3 socket, it supports single AMD EPYC 7002/7003 series processors with up to 64 cores and 128 threads. Key features include 8 DDR4 DIMM slots supporting up to 2TB of registered ECC memory, dual 10GbE LAN ports for high-speed networking, and comprehensive I/O including multiple PCIe slots, USB 3.0 ports, and SATA connectors. The board incorporates IPMI 2.0 with dedicated management LAN for remote monitoring and control. Its mini-ITX form factor delivers enterprise-grade performance in space-constrained environments, making it ideal for edge computing, dense server deployments, and specialized workstations requiring maximum processing power with minimal footprint. The integrated BMC and robust power delivery system ensure reliable 24/7 operation in demanding applications.
