| Brand | Supermicro |
|---|---|
| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 5.1USB Keyboard SupportSMBIOS 3.1.1 |
| PCI-Express | 5 PCI-E 4.0 x162 PCI-E 4.0 x8 |
| Cores | Up to 64 Cores |
| Network Controllers | Dual 10GBase-T LAN via Broadcom BCM574161 Realtek RTL8211F PHY (dedicated IPMI) |
| M.2 | 22110Key: M-Key, Interface: 2 PCI-E 4.0 x4Form Factor: 2280 |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| LAN | Dual 10GBase-T LAN ports1 RJ45 Dedicated IPMI LAN port |
| USB | 6 USB 3.0 ports |
| Form Factor | ATX |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2500 BMC |
| Others | 1 COM port (rear)2 SATA DOM power connectors1 TPM 2.0 header |
| VGA | 1 VGA port |
| Memory Voltage | 1.2V |
| CPU | Single AMD EPYC 7003/7002 Series ProcessorSocket SP3 |
| SAS | 8 SAS3 (12 Gbps) ports |
| SATA | 8 SATA3 (6 Gbps) ports |
| Memory Capacity | 8 DIMM slotsSupports up to 2TB Registered ECC DDR4 3200MHz SDRAM8-channel memory bus |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 12" x 9.6" (30.5cm x 24.4cm) |

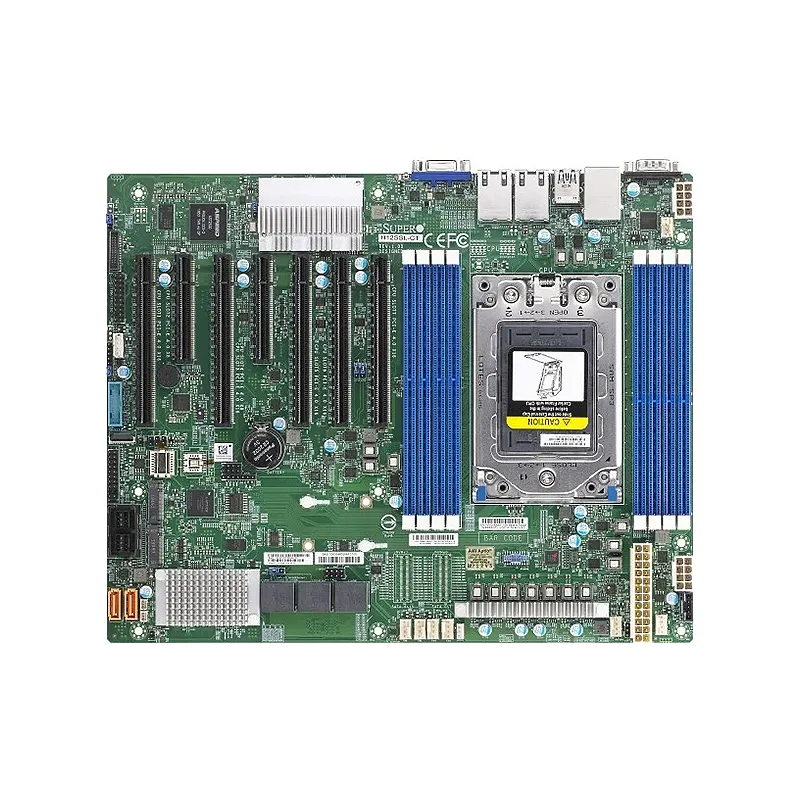

* NOTE: Image may not exactly match the product
Supermicro MBD-H12SSL-CT-O
The Supermicro MBD-H12SSL-CT-O is a high-performance server motherboard designed for demanding enterprise applications. Built on the AMD SP3 socket, it supports 3rd Gen AMD EPYC processors with up to 64 cores, delivering exceptional computational power. Key features include 8 DDR4 memory slots supporting up to 2TB of registered ECC memory, dual 10GbE LAN ports for high-speed networking, and comprehensive I/O expansion with multiple PCIe 4.0 slots. The board offers enterprise-grade reliability with IPMI 2.0 remote management, hardware monitoring, and redundant power supply support. Its compact ATX form factor makes it ideal for 1U/2U rack servers while maintaining excellent thermal design and power efficiency. This motherboard excels in virtualization, cloud computing, database applications, and high-performance computing workloads where maximum processing power, memory capacity, and system reliability are critical.
Quote1 Piece(MOQ)
