| Brand | Supermicro |
|---|---|
| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 6.2USB Keyboard SupportSMBIOS 3.1.1 |
| PCI-Express | 3 PCI-E 4.0 x16 Riser Slots9 PCI-E 4.0 x8 SlimSAS2 PCI-E 4.0 x4 SlimSAS1 PCI-E 4.0 x16 AIOM LAN Networking Slot |
| Cores | Up to 64 Cores |
| Network Controllers | LAN Networking provided via AIOMDedicated IPMI via Realtek RTL8211F PHY |
| M.2 | 22110Key: M-Key, 2260, 2280, Interface: 2 PCI-E 4.0 x4Form Factor: 2242 |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| LAN | Provided via AIOM1 RJ45 Dedicated IPMI LAN port |
| NVMe | 2 NVMe via SlimSAS |
| USB | 2 USB 3.0 ports (rear) |
| Form Factor | Proprietary |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2600 BMC |
| Others | 1 COM port (header)1 TPM 1.2/2.0 header |
| VGA | 1 VGA port (rear) |
| Memory Voltage | 1.2V |
| CPU | Single AMD EPYC 7003/7002 Series ProcessorSocket SP3 |
| Memory Capacity | 8 DIMM slotsSupports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs8-channel memory bus |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 9.6" x 14.5" |

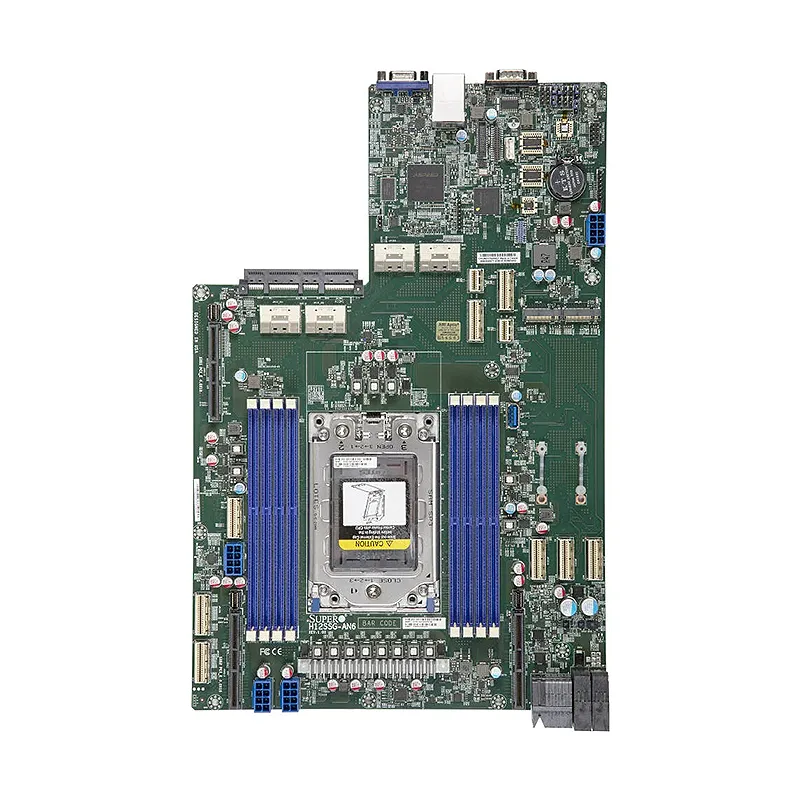

* NOTE: Image may not exactly match the product
Supermicro MBD-H12SSG-AN6
The Supermicro MBD-H12SSG-AN6 is a high-performance server motherboard designed for demanding enterprise applications. Built on the AMD SP3 socket, it supports 3rd Gen AMD EPYC processors with up to 64 cores, delivering exceptional computational power. Key features include 8 DDR4 memory slots supporting up to 2TB of registered ECC memory, dual 10GbE LAN ports for high-speed networking, and comprehensive storage connectivity with multiple SATA and NVMe slots. The board offers robust expansion capabilities through PCIe 4.0 slots, integrated IPMI 2.0 for remote management, and enterprise-grade reliability features. Its compact form factor makes it ideal for space-constrained environments while maintaining full server functionality. This motherboard excels in virtualization, cloud computing, database applications, and high-performance computing workloads, offering an optimal balance of performance, scalability, and energy efficiency for modern data center deployments.
