| Brand | Supermicro |
|---|---|
| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 5.1USB Keyboard SupportSMBIOS 3.1.1 |
| PCI-Express | 1 PCI-E 4.0 x16 Right Riser Slot1 PCI-E 4.0 x8 Left Riser Slot1 PCI-E 4.0 x16 AIOM LAN Networking Slot |
| Cores | Up to 64 Cores |
| Network Controllers | 1 PCI-E 4.0 x16 AIOM LAN Networking SlotATEN IPMI (Dedicated) from ASPEED AST2600 BMC |
| M.2 | 22110Key: M-Key, Interface: 4 SATA/PCI-E 4.0 x4Form Factor: 2280 |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| LAN | Provided via AIOM1 RJ45 Dedicated IPMI LAN port |
| NVMe | 4 internal NVMe ports |
| USB | 2 USB 3.0 ports (rear) |
| Form Factor | Proprietary FatTwin |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2600 BMC |
| Others | 1 COM port (header)2 SuperDOM power connectors1 TPM 1.2/2.0 header |
| VGA | 1 VGA port (rear) |
| SATA/NVMe Hybrid | 8 SATA3 or 2 NVMe via SlimSAS |
| Memory Voltage | 1.2V |
| CPU | Single AMD EPYC 7003/7002 Series ProcessorSocket SP3 |
| SATA | 2 SATA3 (6 Gbps) ports |
| Memory Capacity | 8 DIMM slotsSupports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs8-channel memory bus |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 8.53" x 20.19" |

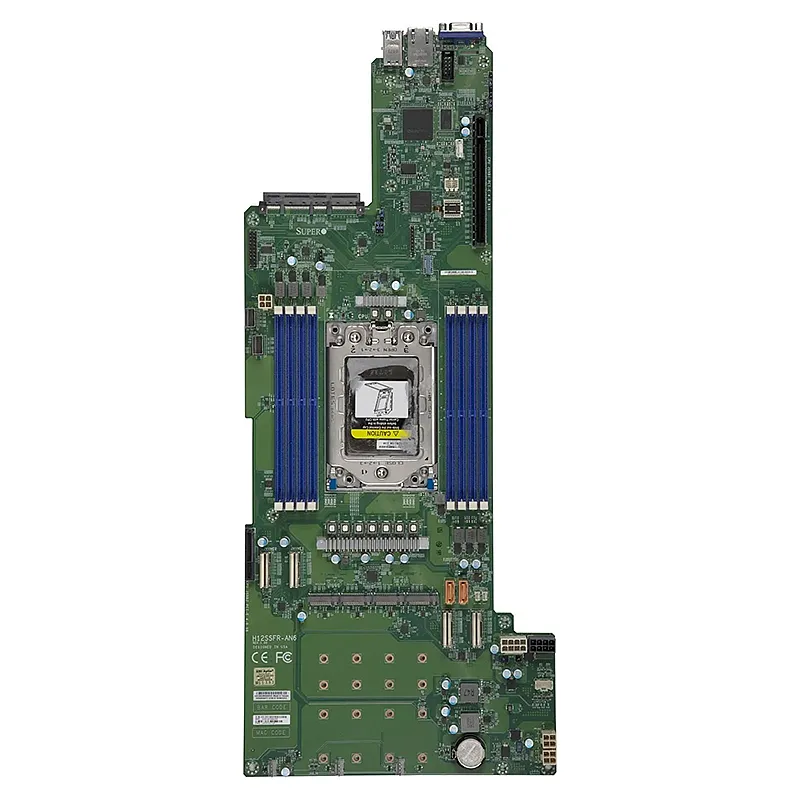

* NOTE: Image may not exactly match the product
Supermicro MBD-H12SSFR-AN6
The Supermicro MBD-H12SSFR-AN6 is a high-performance server motherboard featuring the AMD SP5 socket for 4th Gen EPYC processors, delivering exceptional computational power for enterprise workloads. Key features include support for up to 12 DDR5 memory channels with speeds up to 4800MHz, providing massive memory bandwidth and capacity. The board offers extensive I/O connectivity with multiple PCIe 5.0 slots, dual 10GbE networking, and comprehensive storage options including M.2 and SATA interfaces. Built with Supermicro’s renowned reliability and energy efficiency, it includes advanced thermal management, remote management capabilities via IPMI, and enterprise-grade security features. This motherboard excels in data centers, virtualization environments, and high-performance computing applications where maximum processing power, memory capacity, and system reliability are critical requirements.
Quote1 Piece(MOQ)
Premium Client Discounts Available
| Brand | Supermicro |
|---|---|
| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 5.1USB Keyboard SupportSMBIOS 3.1.1 |
| PCI-Express | 1 PCI-E 4.0 x16 Right Riser Slot1 PCI-E 4.0 x8 Left Riser Slot1 PCI-E 4.0 x16 AIOM LAN Networking Slot |
| Cores | Up to 64 Cores |
| Network Controllers | 1 PCI-E 4.0 x16 AIOM LAN Networking SlotATEN IPMI (Dedicated) from ASPEED AST2600 BMC |
