| Brand | Supermicro |
|---|---|
| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 6.2USB Keyboard SupportSMBIOS 3.1.1 |
| PCI-Express | 3 PCI-E 4.0 x16 slots3 PCI-E 4.0 x8 slots |
| Cores | Up to 64 Cores |
| Network Controllers | Dual LAN via Broadcom BCM5720L Gigabit Ethernet Controller |
| M.2 | 22110Key: M-Key, Interface: 1 PCI-E 4.0 x4Form Factor: 2280 |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| LAN | 2x 1GbE LAN ports1 RJ45 Dedicated IPMI LAN port |
| USB | 2 headers), 2 USB 2.0 ports (rear)4 USB 3.0 ports (2 rear |
| Form Factor | E-ATX |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2600 BMC |
| Others | 1 COM port (rear)2 SATA DOM power connectors4 PCI-E 4.0 NVMe x4 internal portsTPM 2.0 header |
| VGA | 1 VGA port |
| Memory Voltage | 1.2V |
| CPU | Dual AMD EPYC 7003/7002 Series ProcessorsSocket SP3 |
| SATA | 10 SATA3 (6 Gbps) ports |
| Memory Capacity | 16 DIMM slotsSupports up to 4TB Registered ECC DDR4 3200MHz SDRAM8-channel memory busFor Dual CPUs: Recommended that memory be populated equally in adjacent memory banks |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 12" x 13.05" (30.5cm x 33.1cm) |
* NOTE: Image may not exactly match the product

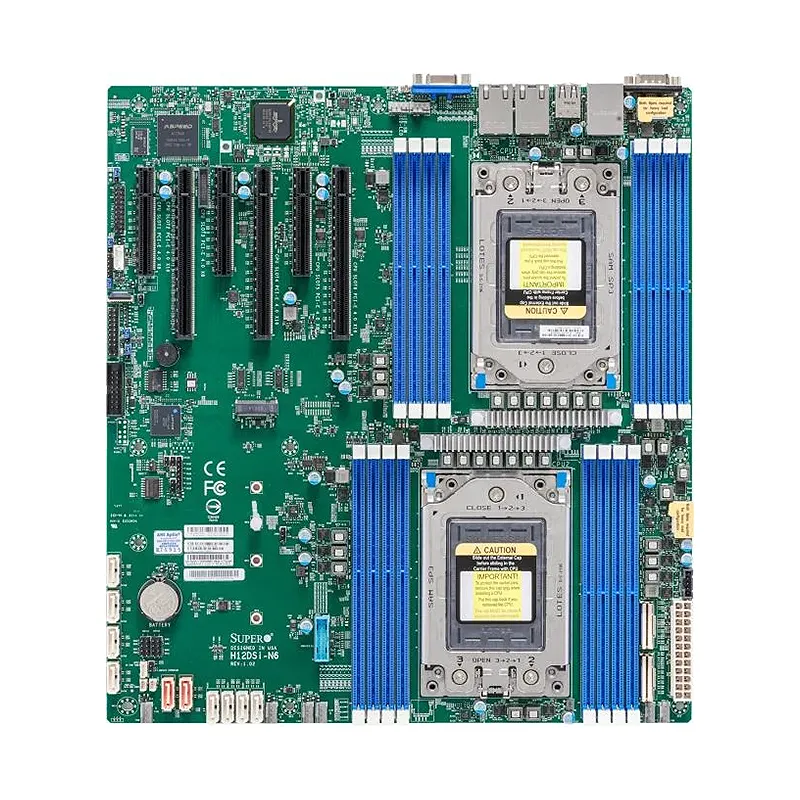

Supermicro MBD-H12DSi-N6
The Supermicro MBD-H12DSi-N6 is a high-performance dual-socket motherboard designed for AMD EPYC 7003/7002 series processors, delivering enterprise-grade computing power for data centers and workstations. This E-ATX motherboard supports up to 4TB of DDR4-3200 ECC memory across 16 DIMM slots, ensuring exceptional scalability and reliability for memory-intensive applications.
Key features include dual 10GbE LAN ports for high-speed networking, comprehensive PCIe 4.0 expansion with multiple x16 and x8 slots for GPUs and accelerators, and robust storage connectivity through SATA 6Gb/s and M.2 NVMe interfaces. The board incorporates Supermicro’s advanced thermal management and supports IPMI 2.0 for remote management capabilities.
Ideal for virtualization, cloud computing, AI/ML workloads, and high-performance computing environments, the H12DSi-N6 offers exceptional processing density, energy efficiency, and enterprise-class features at a competitive price point. Its proven reliability, extensive I/O options, and support for the latest AMD EPYC architecture make it an optimal choice for organizations requiring maximum performance and scalability in a dual-processor configuration.
