| Brand | Supermicro |
|---|---|
| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 6.2USB Keyboard SupportSMBIOS 3.1.1 |
| PCI-Express | 19 PCI-E 4.0 x8 SlimSAS1 PCI-E 4.0 x4/SATA3 x4 hybrid SlimSAS |
| Graphics | ASPEED AST2600 BMC |
| Cores | Up to 64 Cores |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| LAN | 1 RJ45 dedicated IPMI port via I/O board (AOM-PIO-i2XT) |
| USB | 2 USB 3.0 ports via I/O Board (AOM-PIO-i2XT) |
| Form Factor | Proprietary |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2600 BMC |
| Others | 1 COM port via I/O Board (AOM-PIO-i2XT)4 internal NVMe (PCI-E 4.0 x4) ports via 2 SlimSAS (PCIE 4.0 x8)TPM 2.0 header |
| VGA | 1 VGA port via I/O board (AOM-PIO-i2XT) |
| Memory Voltage | 1.2V |
| CPU | Dual AMD EPYC 7003/7002 Series ProcessorsSocket SP3 |
| SATA | 4 SATA3 (6 Gbps) ports via SlimSAS |
| Memory Capacity | 32 DIMM slotsSupports up to 8TB Registered ECC DDR4 3200MHz SDRAM8-channel memory busFor Dual CPUs: Recommended that memory be populated equally in adjacent memory banks |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 17.32" x 11.8" (44cm x 30cm) |

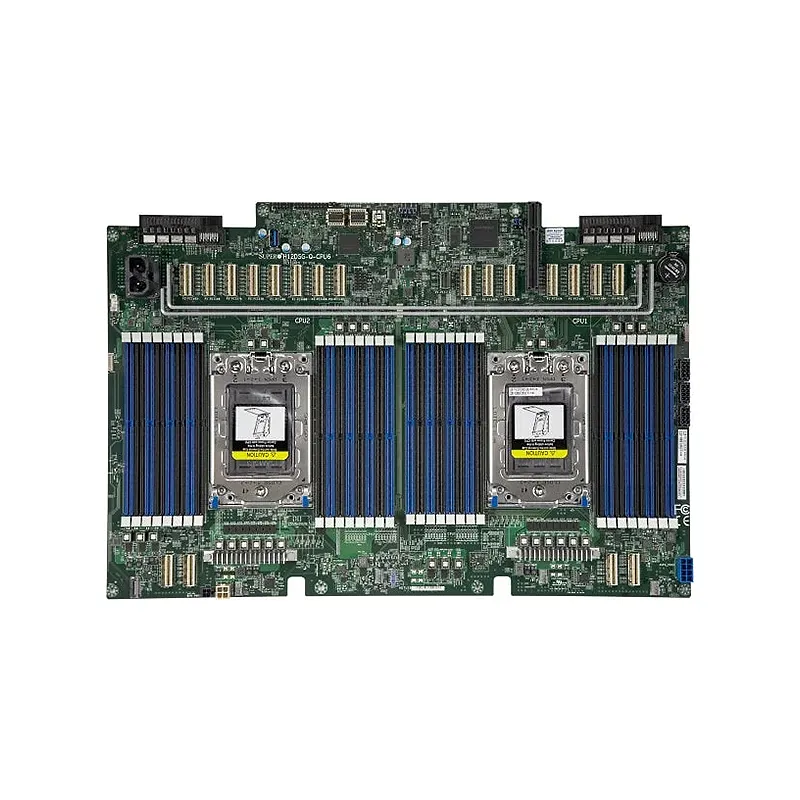

* NOTE: Image may not exactly match the product
Supermicro MBD-H12DSG-Q-CPU6
The Supermicro MBD-H12DSG-Q-CPU6 is a high-performance dual-socket server motherboard designed for enterprise and data center applications. Built on the AMD EPYC 7003/7002 series processor platform, it delivers exceptional computational power with support for up to 128 cores per system. Key features include 32 DIMM slots supporting up to 4TB of DDR4-3200 ECC memory, dual 10GbE LAN ports for high-speed networking, and comprehensive PCIe 4.0 expansion capabilities with multiple x16 slots. The board offers advanced storage connectivity through multiple SATA and NVMe interfaces, integrated IPMI 2.0 for remote management, and robust power delivery systems optimized for 24/7 operation. Its compact design maximizes density while maintaining excellent thermal management, making it ideal for virtualization, cloud computing, HPC workloads, and database applications where maximum performance, reliability, and scalability are critical.
