| Brand | Supermicro |
|---|---|
| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 6.2USB Keyboard SupportSMBIOS 3.1.1 |
| PCI-Express | 20 PCI-E 4.0 x8 SlimSAS to PCI-E board (AOM-PCIE4-418N-1) |
| Graphics | ASPEED AST2500 BMC |
| Cores | Up to 64 Cores |
| Network Controllers | OCP 3.0 NIC slot with NCSI interface via AIOM slot |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| LAN | Provided via AIOM1 RJ45 dedicated IPMI port via I/O board (AOM-PIO-i2G) |
| USB | 2 USB 3.0 ports via I/O board (AOM-PIO-i2G) |
| Form Factor | Proprietary |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2500 BMC |
| Others | 1 COM port (rear)4 internal NVMe (PCI-E 4.0 x4) ports via SlimSASTPM 2.0 header |
| VGA | 1 VGA port via I/O board (AOM-PIO-i2G) |
| Memory Voltage | 1.2V |
| CPU | Dual AMD EPYC 7003/7002 Series ProcessorsSocket SP3 |
| SATA | 2 SATA3 (6 Gbps) ports |
| Memory Capacity | 32 DIMM slotsSupports up to 8TB Registered ECC DDR4 3200MHz SDRAM8-channel memory busFor Dual CPUs: Recommended that memory be populated equally in adjacent memory banks |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 17" x 14.7" (43.2cm x 37.3cm) |

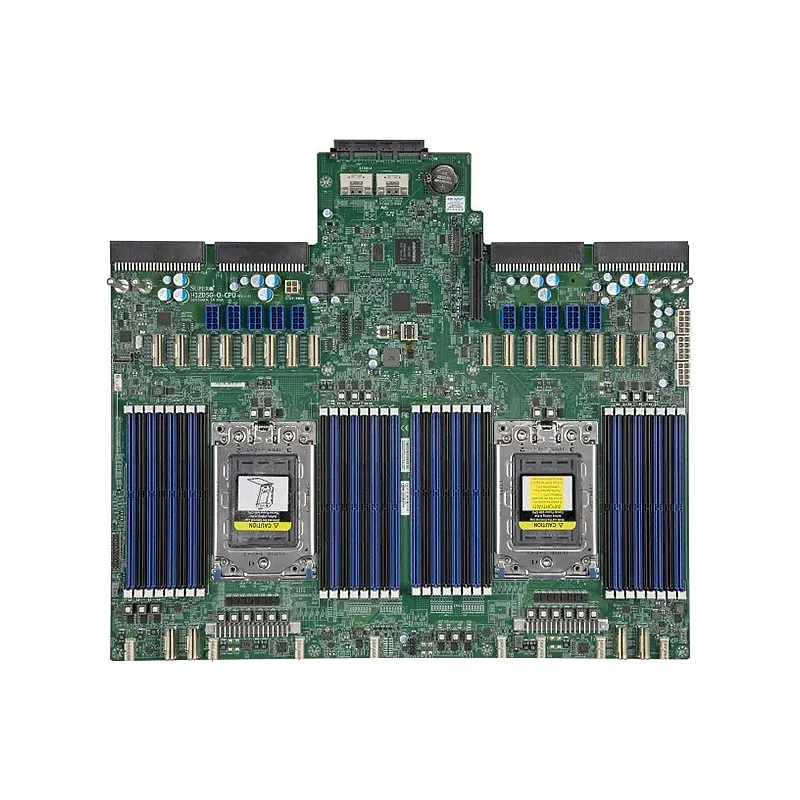

* NOTE: Image may not exactly match the product
Supermicro MBD-H12DSG-O-CPU
The Supermicro MBD-H12DSG-O-CPU is a high-performance dual-socket server motherboard designed for demanding enterprise workloads. Built on the SP3 socket platform, it supports dual AMD EPYC 7003/7002 series processors with up to 64 cores each, delivering exceptional computational power for data centers, virtualization, and HPC applications.
Key features include 32 DIMM slots supporting up to 4TB of DDR4-3200 ECC memory, ensuring massive memory capacity for memory-intensive applications. The board offers robust I/O connectivity with multiple PCIe 4.0 slots, dual 10GbE LAN ports, and comprehensive storage options including M.2 NVMe support for ultra-fast data access.
The motherboard excels in scalability and reliability with advanced thermal management, redundant power options, and enterprise-grade components. Its IPMI 2.0 support enables remote management capabilities, while the compact design maximizes rack density. This platform is ideal for organizations requiring maximum performance per rack unit, making it perfect for cloud computing, database servers, and AI/ML workloads where processing power, memory capacity, and reliability are critical.
