| Brand | Supermicro |
|---|---|
| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 6.2USB Keyboard SupportSMBIOS 3.1.1 |
| PCI-Express | 4 PCI-E 4.0 x8 SlimSAS1 PCI-E 4.0 x4 SlimSAS |
| Graphics | ASPEED AST2600 BMC |
| Cores | Up to 64 Cores |
| Network Controllers | Flexible networking provided by AIOM via AIOM Adapter (AOM-438G-AIOM)Dedicated IPMI via I/O riser card |
| M.2 | Interface: 2 PCI-E 4.0 x4Form Factor: 22110Key: M-key |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| LAN | 1 RJ45 dedicated IPMI port via I/O Riser card ( |
| USB | 1 USB 3.0 port (Type A)2 USB 3.0 ports via I/O riser card (AOM-DGO-IO) |
| Form Factor | Proprietary |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2600 BMC |
| Others | 2 internal NVMe (PCI-E 4.0 x4) ports via 1 SlimSAS (PCI-E 4.0 x8)TPM 2.0 header |
| VGA | 1 VGA port via I/O riser card (AOM-DGO-IO) |
| Memory Voltage | 1.2V |
| CPU | Dual AMD EPYC 7003/7002 Series ProcessorsSocket SP3 |
| SATA | 4 SATA3 (6 Gbps) ports via SlimSAS |
| Memory Capacity | 32 DIMM slotsSupports up to 8TB Registered ECC DDR4 3200MHz SDRAM8-channel memory busFor Dual CPUs: Recommended that memory be populated equally in adjacent memory banks |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 16.86" x 15.11" (43cm x 38cm) |
* NOTE: Image may not exactly match the product

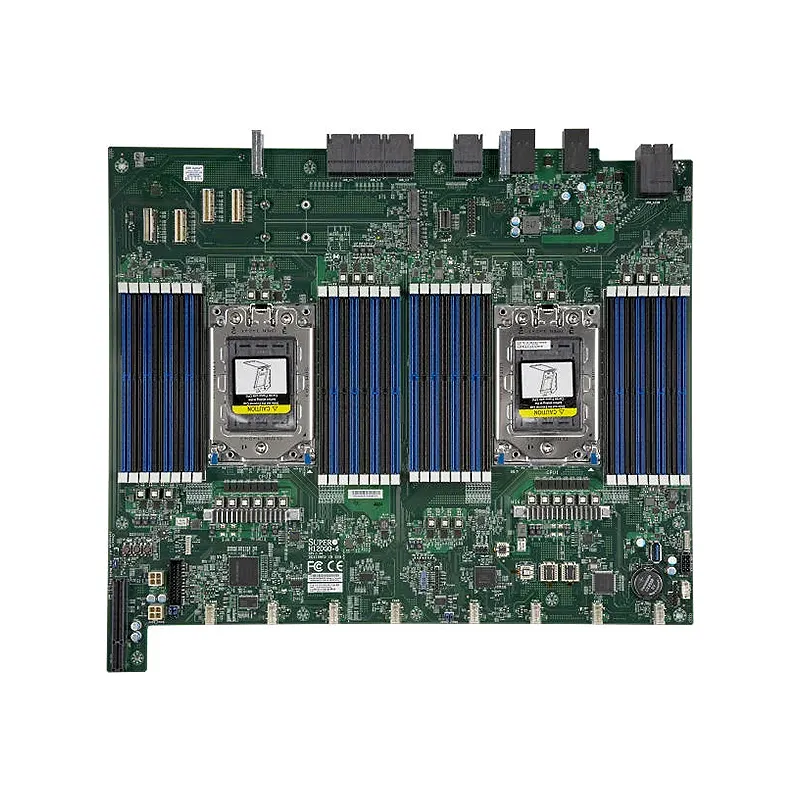

Supermicro MBD-H12DGO-6
The Supermicro MBD-H12DGO-6 is a high-performance dual-socket motherboard designed for enterprise servers and workstations, featuring dual AMD EPYC 7003/7002 series processor support with up to 128 cores total. Key highlights include 32 DDR4 DIMM slots supporting up to 4TB of registered ECC memory, 8 PCIe 4.0 slots for maximum expansion flexibility, and dual 10GbE LAN ports for high-speed networking. The board offers exceptional I/O connectivity with multiple SATA and NVMe M.2 slots, integrated IPMI 2.0 with dedicated management port for remote administration, and support for Supermicro’s advanced thermal management. Built on a robust ATX form factor with enterprise-grade components, this motherboard delivers exceptional scalability, reliability, and performance for demanding applications including virtualization, database servers, HPC clusters, and AI/ML workloads, making it ideal for organizations requiring maximum processing power and memory capacity in a single platform.
Quote1 Piece(MOQ)
Premium Client Discounts Available
