Product SKUs

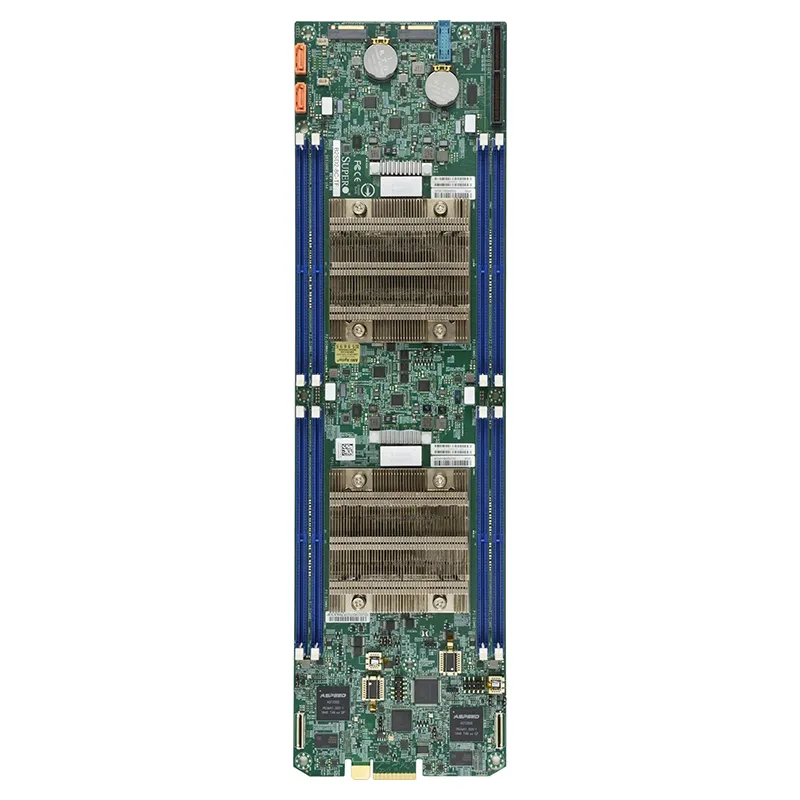

- MBD-B2SD2-16C-TF
Physical Stats
- Form Factor
Proprietary
- Dimension
4.803″ x 17.086″ (12.2cm x 43.39cm)
Processor
- CPU
Intel Xeon Processor D-2183IT, Intel Xeon D Processor (Skylake-D)
Single Socket FCBGA-2518 supported, CPU TDP supports Up to 100W TDP - Core
Up to 16 cores, 32 threads / 22MB Cache
System Memory
- Memory Capacity
4 DIMM slots
Up to 128GB ECC RDIMM, DDR4-2400MT/s - Memory Type
2133/2400 MT/s ECC DDR4 RDIMM VLP
- DIMM Sizes
8GB, 16GB, 32GB
- Memory Voltage
1.2V
On-Board Devices
- Chipset
System on Chip
- IPMI
ASPEED AST2500
- Graphics
1 ASPEED AST2500 BMC port(s)
- Network Controllers
Dual LAN with SoC, Two(2)10GbE Ethernet ports from KR interface to BP
Input / Output
- SATA
1 SATA3 (6Gbps) port(s)
- DOM
1 SATA DOM (Disk on Module) power connector support
- TPM
1 TPM Chip
Expansion Slots
- PCIe
1 PCIe 3.0 x4
- M.2
M.2 Interface: 1 PCIe 3.0 x4
Form Factor: 2242/2280/22110
Key: M-Key
System BIOS
- BIOS Type
256MB SPI Flash with AMI BIOS
- BIOS Features
ACPI 6.1
UEFI 2.7
SMBIOS 2.8
SMBIOS 3.1
PCI FW 3.2
Plug and Play (PnP)
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
- Power Configurations
+12V DC Power Input
