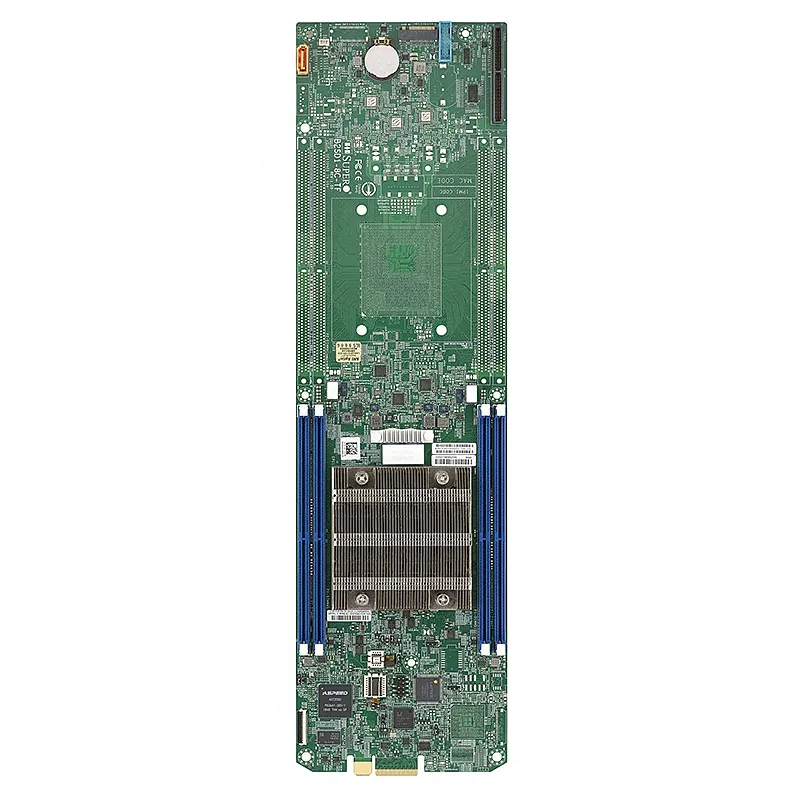

Supermicro MBD-B2SD1-8C-TF

The Supermicro MBD-B2SD1-8C-TF is a compact, energy-efficient motherboard designed for edge computing and IoT applications. Built around Intel’s Atom C3000 series processor, it delivers reliable performance in a small form factor while consuming minimal power. Key features include 8 cores for enhanced processing capability, multiple I/O options including USB 3.0 and SATA ports, dual Gigabit Ethernet for network redundancy, and support for up to 32GB DDR4 memory. The board’s fanless design ensures silent operation and reduced maintenance, making it ideal for deployment in noise-sensitive environments. Its industrial-grade construction provides exceptional durability and thermal management, while the compact Mini-ITX form factor enables flexible installation in space-constrained applications. This motherboard excels in network appliances, digital signage, industrial automation, and embedded systems where reliability, low power consumption, and small footprint are critical requirements.

Quote1 Piece(MOQ) Minimum Order Quantity

Inquiry

Brand	Supermicro
Application	Server
Form Factor	Proprietary
Chipset	System on Chip
Products Status	New

Description
Additional information

Product SKUs

MBD-B2SD1-8C-TF

Physical Stats

Form Factor
Proprietary
Dimension
4.803″ x 17.086″ (12.2cm x 43.39cm)

Processor

CPU
Intel Xeon Processor D-2141I, Intel Xeon D Processor (Skylake-D)
Single Socket FCBGA-2518 supported, CPU TDP supports Up to 65W TDP
Core
Up to 8 cores, 16 threads / 11MB Cache

System Memory

Memory Capacity
4 DIMM slots
Up to 128GB ECC RDIMM, DDR4-2133MT/s
Memory Type
2133/2400 MT/s ECC DDR4 RDIMM VLP
DIMM Sizes
8GB, 16GB, 32GB
Memory Voltage
1.2V

On-Board Devices

Chipset
System on Chip
IPMI
ASPEED AST2500
Graphics
0 ASPEED AST2500 BMC port(s)
Network Controllers
Dual LAN with SoC, Two(2)10GbE Ethernet ports from KR interface to BP

Input / Output

SATA
1 SATA3 (6Gbps) port(s)
DOM
1 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header & Chip both

Expansion Slots

PCIe
1 PCIe 3.0 x4
M.2
M.2 Interface: 1 PCIe 3.0 x4
Form Factor: 2242/2280/22110
Key: M-Key

System BIOS

BIOS Type
256MB SPI Flash with AMI BIOS
BIOS Features
ACPI 6.1
UEFI 2.7
SMBIOS 2.8
SMBIOS 3.1
PCI FW 3.2
Plug and Play (PnP)

Management

System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
+12V DC Power Input

Brand	Supermicro
Application	Server
Form Factor	Proprietary
Chipset	System on Chip
Products Status	New
Socket	System on Chip
BIOS Type	256MB SPI Flash with AMI BIOS
Memory Capacity	4 DIMM slotsUp to 128GB ECC RDIMM, DDR4-2133MT/s
Memory Type	2133/2400 MT/s ECC DDR4 RDIMM VLP
Memory Voltage	1.2V
DIMM Sizes	16GB, 32GB, 8GB
CPU	CPU TDP supports Up to 65W TDP, Intel Xeon D Processor (Skylake-D)Single Socket FCBGA-2518 supported, Intel Xeon Processor D-2141I
SATA	1 SATA3 (6Gbps) port(s)
Dimension	4.803" x 17.086" (12.2cm x 43.39cm)
Network Controllers	Dual LAN with SoC, Two(2)10GbE Ethernet ports from KR interface to BP
M.2	M.2 Interface: 1 PCIe 3.0 x4Form Factor: 2242/2280/22110Key: M-Key
IPMI	ASPEED AST2500
PCIe	1 PCIe 3.0 x4
TPM	1 TPM Header & Chip both
BIOS Features	ACPI 6.1UEFI 2.7SMBIOS 2.8SMBIOS 3.1PCI FW 3.2Plug and Play (PnP)
Cores	16 threads / 11MB Cache, Up to 8 cores
Graphics	0 ASPEED AST2500 BMC port(s)
