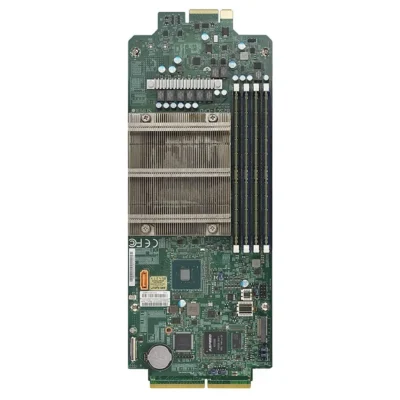

Supermicro MBD-B2SC1-CPU

The Supermicro MBD-B2SC1-CPU is a compact, energy-efficient motherboard featuring an integrated Intel Atom processor designed for edge computing and IoT applications. Key features include fanless operation for silent deployment, multiple I/O ports including USB 3.0 and Gigabit Ethernet, support for up to 8GB DDR3L memory, and mini-ITX form factor for space-constrained environments. Its low power consumption (under 10W TDP), industrial-grade reliability, and extended temperature range make it ideal for embedded systems, digital signage, network appliances, and automation control. The board offers exceptional value by combining processing power, connectivity, and durability in an ultra-compact package perfect for 24/7 operation in demanding environments.

Quote1 Piece(MOQ)

Inquiry

Brand	Supermicro
BIOS Features	ACPI 6.1DMI (SMBIOS) 2.7UEFI 2.6
Graphics	1 ASPEED AST2500 BMC port(s)
TPM	1 TPM Header
Network Controllers	Dual LAN with 1GbE LAN via Intel i350-AM2

Description
Additional information

Product SKUs

MBD-B2SC1-CPU

Physical Stats

Form Factor
Proprietary
Dimension
4.8″ x 12.6″ (12.19cm x 32cm)

Processor

CPU
Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor
Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP

System Memory

Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MT/s
Memory Type
2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
Intel C246
SATA
1 SATA3 (6 Gbps) ports
IPMI
ASPEED AST2500
Graphics
1 ASPEED AST2500 BMC port(s)
Network Controllers
Dual LAN with 1GbE LAN via Intel i350-AM2

Input / Output

DOM
1 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header

Expansion Slots

PCIe
M.2
M.2 Interface: 1 SATA/PCIe 3.0 x4
Form Factor: 2280/22110
Key: M-Key

System BIOS

BIOS Type
128MB SPI Flash EEPROM with UEFI BIOS
BIOS Features
ACPI 6.1
DMI (SMBIOS) 2.7
UEFI 2.6

Management

System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support

Brand	Supermicro
BIOS Features	ACPI 6.1DMI (SMBIOS) 2.7UEFI 2.6
Graphics	1 ASPEED AST2500 BMC port(s)
TPM	1 TPM Header
Network Controllers	Dual LAN with 1GbE LAN via Intel i350-AM2
M.2	M.2 Interface: 1 SATA/PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
Chipset	Intel C246
DIMM Sizes	16GB, 32GB, 4GB, 8GB
BIOS Type	128MB SPI Flash EEPROM with UEFI BIOS
DOM	DOM
Dimension	4.8" x 12.6" (12.19cm x 32cm)
Form Factor	Proprietary
Memory Type	2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
Application	Server
IPMI	ASPEED AST2500
Memory Voltage	1.2V
CPU	CPU TDP supports Up to 95W TDP, Intel Xeon E-2100 Processor, Intel Xeon E-2200 ProcessorSingle Socket Socket H4 (LGA-1151) supported
SATA	1 SATA3 (6 Gbps) ports
Memory Capacity	4 DIMM slotsUp to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
