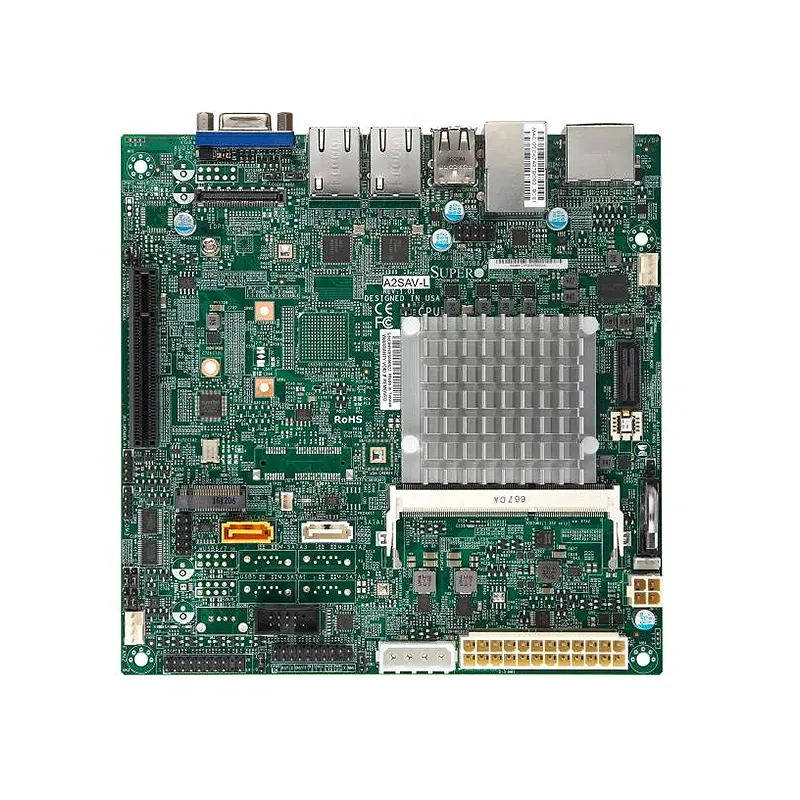

Supermicro MBD-A2SAV-2C-L

* NOTE: Image may not exactly match the product

Supermicro MBD-A2SAV-2C-L

The Supermicro MBD-A2SAV-2C-L is a compact Mini-ITX motherboard featuring Intel’s Atom C3758 8-core processor, delivering exceptional performance-per-watt for edge computing, network appliances, and storage solutions. Key features include dual 10GbE SFP+ ports for high-speed networking, support for up to 128GB DDR4 ECC memory, and multiple PCIe expansion slots despite its small form factor. The board offers comprehensive I/O connectivity with USB 3.0, SATA 6Gb/s ports, and IPMI 2.0 for remote management. Its fanless design ensures silent operation while maintaining reliability in demanding environments. This motherboard excels in applications requiring low power consumption, high network throughput, and enterprise-grade features in a space-constrained deployment, making it ideal for software-defined networking, firewall appliances, and distributed storage systems.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
ApplicationServer
Form FactorMini-ITX
ChipsetSystem on Chip
Products StatusNew

Product SKUs

  • MBD-A2SAV-2C-L

Physical Stats

  • Form Factor
    Mini-ITX
  • Dimension
    6.7″ x 6.7″ (17.02cm x 17.02cm)

Processor

  • CPU
    Intel Atom Processor E3930

System Memory

  • Memory Capacity
  • Memory Type
    1866 MT/s DDR3L up to 8GB
  • DIMM Sizes
    2GB, 4GB, 8GB
  • Memory Voltage
    1.35V

On-Board Devices

  • Chipset
    System on Chip
  • SATA
    SoC controller for 2 SATA3 (6 Gbps) ports
  • Graphics
    1 Intel HD Graphics port(s)
  • Network Controllers
    Dual LAN with Intel Ethernet Controller I210IT

Input / Output

  • USB
    4 USB 2.0 port(s) (2 via header; 2 rear)
    2 USB 3.0 port(s) (2 rear)
  • Video Output
    1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s)
  • Serial Port
    3 COM Port(s) (1 rear; 2 header)
  • Others
    1 COM in RJ45
    1 COM in RS232
    1 COM in RS485

Expansion Slots

  • PCIe
    1 PCIe 2.0 x2 (in x8 slot)
  • M.2
    Form Factor: 2280, 2242
    Double Height Connector

System BIOS

  • BIOS Type
    AMI UEFI

Management

  • Power Configurations
    ACPI Power Management
Brand

Supermicro
Application

Server
Form Factor

Mini-ITX
Chipset

System on Chip
Products Status

New
Socket

System on Chip
USB

4 USB 2.0 port(s) (2 via header; 2 rear)2 USB 3.0 port(s) (2 rear)
BIOS Type

AMI UEFI
Memory Type

1866 MT/s DDR3L up to 8GB
Memory Voltage

1.35V
DIMM Sizes

2GB, 4GB, 8GB
CPU

Intel Atom Processor E3930
SATA

SoC controller for 2 SATA3 (6 Gbps) ports
Dimension

6.7" x 6.7" (17.02cm x 17.02cm)
Network Controllers

Dual LAN with Intel Ethernet Controller I210IT
M.2

2242, Form Factor: 2280
PCIe

1 PCIe 2.0 x2 (in x8 slot)
Video Output

1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 VGA port(s)
Serial Port

3 COM Port(s) (1 rear; 2 header)
Graphics

1 Intel HD Graphics port(s)
