- Dual socket 3rd Gen Intel Xeon Scalable processors, up to 72 Cores
- 16 ECC DDR4-3200: LRDIMM/RDIMM
- 3 x PCIe 4.0 x16 HHHL PCIe slots
- 60 3.5″/2.5″ Hot-swap SAS3/SATA3 drives, 2x Fixed slim SATA SSD, 2x NVMe M.2 (form factor: 2280 and 22110)
- 6x 8cm hot-swap counter-rotate redundant PWM cooling fans
- 2000W Redundant Power Supplies Titanium Level (96%)
-
- Drive Controller support via Broadcom 3916 or 3616
- Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN

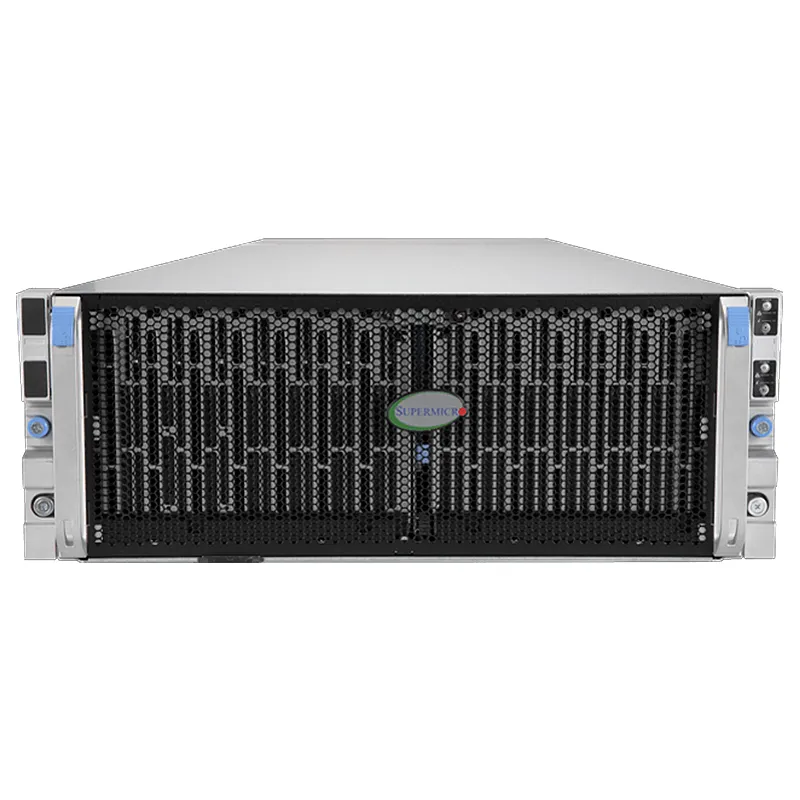

* NOTE: Image may not exactly match the product
Storage SuperServer SSG-640SP-E1CR60 (Complete System Only
The Storage SuperServer SSG-640SP-E1CR60 is a high-density 4U rackmount storage solution designed for enterprise data centers requiring massive capacity and performance. This complete system delivers up to 60 hot-swappable drive bays supporting both SAS and SATA drives, enabling petabyte-scale storage deployments. Key features include dual Intel Xeon Scalable processors, redundant 1600W power supplies for maximum uptime, and advanced thermal management for optimal drive longevity. The system excels in big data analytics, cloud storage, backup/archival, and content distribution applications. Its unique selling points are the exceptional storage density per rack unit, enterprise-grade reliability with hot-swappable components, flexible drive configuration options, and comprehensive remote management capabilities. The SSG-640SP-E1CR60 offers superior total cost of ownership through reduced rack space requirements, lower power consumption per terabyte, and simplified maintenance procedures, making it ideal for organizations needing scalable, high-performance storage infrastructure.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Product SKUs | SuperServer SSG-640SP-E1CR60 (Black) |
|---|---|
| Motherboard | Super X12DSC-6 |
| CPU | Dual Socket P+ (LGA-4189), 3rd Gen Intel Xeon Scalable processors |
| Core Count | Up to 36C/72T; Up to 54MB Cache per CPU |
| Note | Supports 120W - 205W TDP CPUs (Air Cooled) |
| Product SKUs | SuperServer SSG-640SP-E1CR60 (Black) |
|---|---|
| Motherboard | Super X12DSC-6 |
| CPU | Dual Socket P+ (LGA-4189), 3rd Gen Intel Xeon Scalable processors |
| Core Count | Up to 36C/72T; Up to 54MB Cache per CPU |
| Note | Supports 120W – 205W TDP CPUs (Air Cooled) |
| Memory | Slot Count: 16 DIMM slots, Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| Chipset | Intel C621A |
| Network Connectivity | 2x 10GbE BaseT with X550 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Chassis Form Factor | 4U Rackmount |
| Chassis Model | CSV-947STS-R2K05P |
| Height | 7" |
| Width | 17.6" |
| Depth | 34.1" |
| Package | 29.92" (H) x 31.89" (W) x 44.88" (D) |
| Weight | Net Weight: 118 lbs (53.5 kg), Gross Weight: 170.5 lbs (77.3 kg) |
