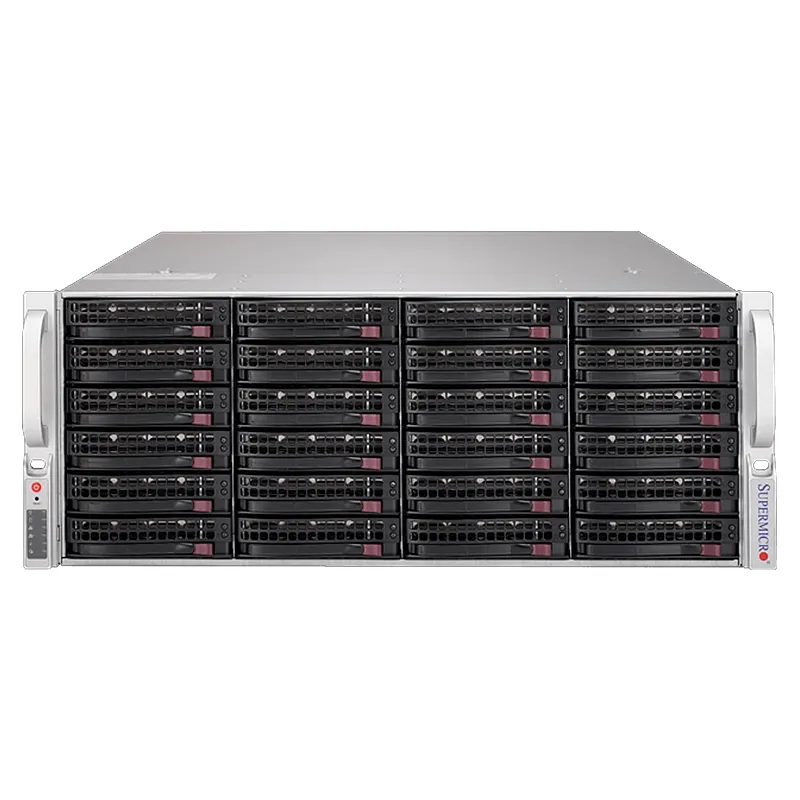

* NOTE: Image may not exactly match the product

Storage SuperServer SSG-640P-E1CR36H

The Storage SuperServer SSG-640P-E1CR36H is a high-density 4U storage powerhouse designed for enterprise data centers requiring massive capacity and performance. This server delivers exceptional storage density with 36 hot-swappable drive bays supporting both SAS and SATA drives, enabling up to petabytes of raw storage in a single chassis.

**Key Features:**
– 36 hot-swappable 3.5″ drive bays with SAS3/SATA3 support
– Dual Intel Xeon Scalable processor support for robust computing power
– Advanced storage controller options with hardware RAID capabilities
– Redundant power supplies and cooling for maximum uptime
– Tool-less drive installation and maintenance
– High-bandwidth backplane architecture

**Benefits:**
– Maximizes data center floor space efficiency with ultra-high storage density
– Reduces total cost of ownership through consolidated storage infrastructure
– Ensures business continuity with enterprise-grade redundancy and reliability
– Scales seamlessly to meet growing storage demands
– Minimizes maintenance downtime with hot-swappable components

**Unique Selling Points:**
– Industry-leading storage density in 4U form factor
– Flexible drive configuration supporting mixed SAS/SATA environments
– Enterprise-grade build quality with Supermicro’s proven reliability
– Optimized thermal design for sustained high-performance operation
– Comprehensive management tools for simplified administration

Ideal for cloud storage, backup and archival systems, big data analytics, and content distribution networks requiring massive, reliable storage capacity.

Quote1 Piece(MOQ)

Bulk Order Discounts Available

Product SKUsSuperServer SSG-640P-E1CR36H (Silver)
MotherboardSuper X12DPi-NT6
CPUDual Socket P+ (LGA-4189), 3rd Gen Intel Xeon Scalable processors
Core CountUp to 38C/76T; Up to 57MB Cache per CPU
NoteSupports 120W - 270W TDP CPUs (Air Cooled)
  1. Dual socket 3rd Gen Intel Xeon Scalable processors, up to 72 Cores Per Node
  2. 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel Optane Persistent Memory Dedicated Slots
    • 2x 10Gbe
    • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
  3. 36 3.5″/2.5″ Hot-swap SAS3/SATA3 drives (4 Hybrid NVMe), 2x Rear SATA Slots, 1x SATA/NVMe M.2 (form factor: 2280 and 22110)
  4. 7x 8cm hot-swap counter-rotate redundant PWM cooling fans
  5. 1600W Redundant Power Supplies Titanium Level (96%)
  6. HW RAID support via Broadcom 3908
Product SKUs

SuperServer SSG-640P-E1CR36H (Silver)

Motherboard

Super X12DPi-NT6

CPU

Dual Socket P+ (LGA-4189), 3rd Gen Intel Xeon Scalable processors

Core Count

Up to 38C/76T; Up to 57MB Cache per CPU

Note

Supports 120W – 270W TDP CPUs (Air Cooled)

Memory

Slot Count: 16 DIMM slots, Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM;LRDIMM;DCPMM

Chipset

Intel C621A

Network Connectivity

2x 10GbE BaseT with Intel X550

IPMI

Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Chassis Form Factor

4U Rackmount

Chassis Model

CSE-847BTS-R1K68LPBP4

Height

7"

Width

17.2"

Depth

27.5"

Package

15" (H) x 27" (W) x 39" (D)

Weight

Net Weight: 65.5 lbs (29.7 kg), Gross Weight: 102.5 lbs (46.4 kg)
