- Dual socket 3rd Gen Intel Xeon Scalable processors, up to 72 Cores Per Node
- 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel Optane Persistent Memory Dedicated Slots
-
- 2x 10Gbe
- Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
- 24 3.5″/2.5″ Hot-swap SAS3/SATA3 drives, 2x Rear SATA Slots, 1x SATA/NVMe M.2 (form factor: 2280 and 22110)
- 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
- 1200W Redundant Power Supplies Titanium Level (96%)
- HW RAID support via Broadcom 3908
* NOTE: Image may not exactly match the product

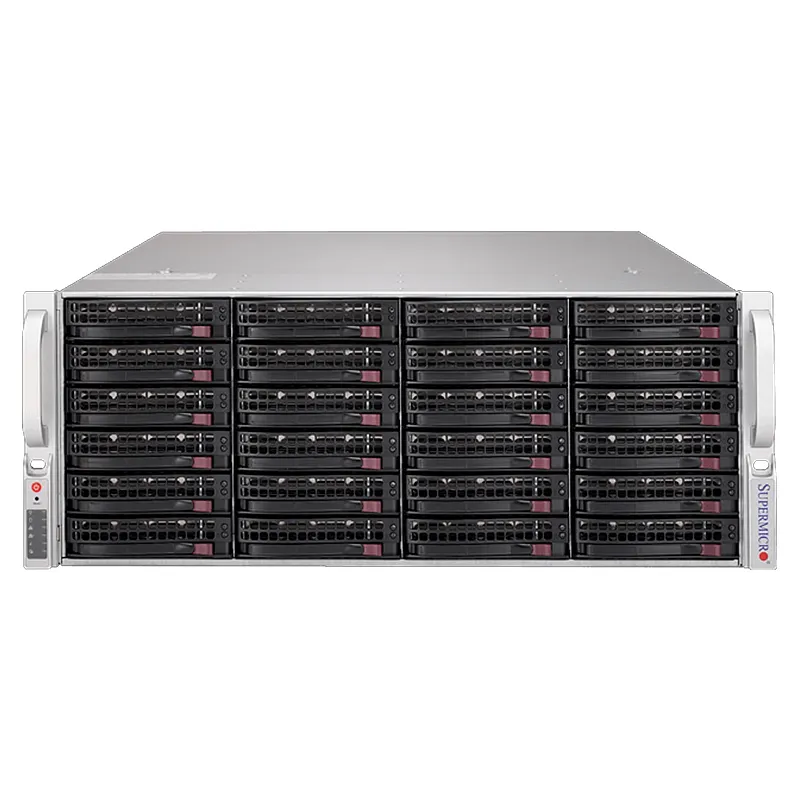

Storage SuperServer SSG-640P-E1CR24H
The Storage SuperServer SSG-640P-E1CR24H is a high-density 4U rackmount storage server engineered for enterprise-class data management and scalability. This powerhouse delivers exceptional storage capacity with 24 hot-swappable drive bays supporting both SAS and SATA drives, enabling up to petabyte-scale storage configurations. Built on Intel’s robust server platform, it features dual processor support for maximum computational performance and redundant power supplies ensuring 99.9% uptime reliability.
Key advantages include enterprise-grade RAID controller support for data protection, tool-less drive installation for rapid deployment, and advanced thermal management keeping components cool under heavy workloads. The server’s modular design allows seamless capacity expansion without downtime, while its energy-efficient architecture reduces operational costs. Ideal for virtualization environments, backup solutions, content delivery networks, and big data analytics, this storage server combines industrial reliability with cost-effective scalability, making it the optimal choice for organizations requiring massive storage capacity with enterprise-level performance and redundancy.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Product SKUs | SuperServer SSG-640P-E1CR24H (Black) |
|---|---|
| Motherboard | Super X12DPi-NT6 |
| CPU | Dual Socket P+ (LGA-4189), 3rd Gen Intel Xeon Scalable processors |
| Core Count | Up to 38C/76T; Up to 57MB Cache per CPU |
| Note | Supports 120W - 270W TDP CPUs (Air Cooled) |
| Product SKUs | SuperServer SSG-640P-E1CR24H (Black) |
|---|---|
| Motherboard | Super X12DPi-NT6 |
| CPU | Dual Socket P+ (LGA-4189), 3rd Gen Intel Xeon Scalable processors |
| Core Count | Up to 38C/76T; Up to 57MB Cache per CPU |
| Note | Supports 120W – 270W TDP CPUs (Air Cooled) |
| Memory | Slot Count: 16 DIMM slots, Max Memory (2DPC): 3200MT/s ECC DDR4 RDIMM;LRDIMM;DCPMM |
| Chipset | Intel C621A |
| Network Connectivity | 2x 10GbE BaseT with Intel X550 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Chassis Form Factor | 4U |
| Chassis Model | CSE-846BE1C-R1K23B |
| Height | 7" (178mm) |
| Width | 17.2" (437mm) |
| Depth | 26" (660mm) |
| Package | 26.5" (H) x 34.3" (W) x 13.5" (D) |
| Weight | Net Weight: 86 lbs (39 kg), Gross Weight: 118 lbs (53.52 kg) |
