- Dual Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable Processors
- 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel Optane Persistent Memory Dedicated Slots
- 2x 10Gbe
- 12x 3.5″ hot-swap hybrid SATA/SAS drive bays (4 NVMe Hyprid Ports); 2 rear SATA 2.5″ slots; onboard 1 M.2 NVMe
- 3 heavy duty fans with optimal fan speed control; 1 Air Shroud
- Broadcom 3916 controller

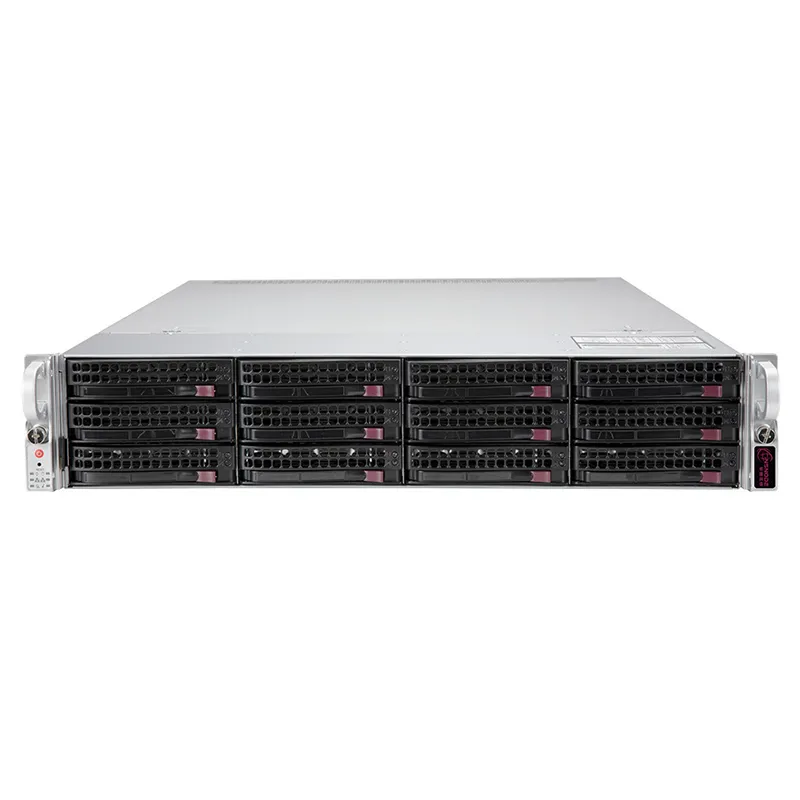

* NOTE: Image may not exactly match the product
Storage SuperServer SSG-620P-ACR12H
The Storage SuperServer SSG-620P-ACR12H is a high-density 2U rackmount storage server engineered for enterprise data centers requiring massive storage capacity and exceptional performance. This powerhouse features dual Intel Xeon Scalable processors, supporting up to 12 hot-swappable 3.5″ drive bays with SATA/SAS connectivity for maximum storage flexibility. Key advantages include redundant 1200W power supplies ensuring 99.9% uptime, advanced thermal management with optimized airflow design, and enterprise-grade reliability with tool-less drive installation. The server delivers exceptional value through its compact 2U form factor that maximizes rack density while providing up to 192TB raw storage capacity, making it ideal for virtualization, backup/archival, surveillance systems, and big data applications. Its unique selling proposition lies in combining enterprise-class performance with cost-effective scalability, featuring comprehensive remote management capabilities, multiple PCIe expansion slots for future upgrades, and Supermicro’s proven track record for reliability in mission-critical environments.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Product SKUs | SuperServer SSG-620P-ACR12H (Black) |
|---|---|
| Motherboard | Super X12DPi-NT6 |
| CPU | Dual Socket P+ (LGA-4189), 3rd Gen Intel Xeon Scalable processors |
| Core Count | Up to 38C/76T; Up to 57MB Cache per CPU |
| Note | Supports 120W - 270W TDP CPUs (Air Cooled) |
| Product SKUs | SuperServer SSG-620P-ACR12H (Black) |
|---|---|
| Motherboard | Super X12DPi-NT6 |
| CPU | Dual Socket P+ (LGA-4189), 3rd Gen Intel Xeon Scalable processors |
| Core Count | Up to 38C/76T; Up to 57MB Cache per CPU |
| Note | Supports 120W – 270W TDP CPUs (Air Cooled) |
| Memory | Slot Count: 16 DIMM slots, Max Memory (2DPC): 3200MT/s ECC DDR4 RDIMM;LRDIMM;DCPMM |
| Chipset | Intel C621A |
| Network Connectivity | 2x 10GbE BaseT with Intel X550 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Chassis Form Factor | 2U Rackmount |
| Chassis Model | CSV-826BTS-R1K23LPBP2 |
| Height | 3.5" |
| Width | 17.3" |
| Depth | 25.5" |
| Package | 12" (H) x 27" (W) x 35" (D) |
| Weight | Net Weight: 34 lbs (15.4 kg), Gross Weight: 61 lbs (27.7 kg) |
