* NOTE: Image may not exactly match the product

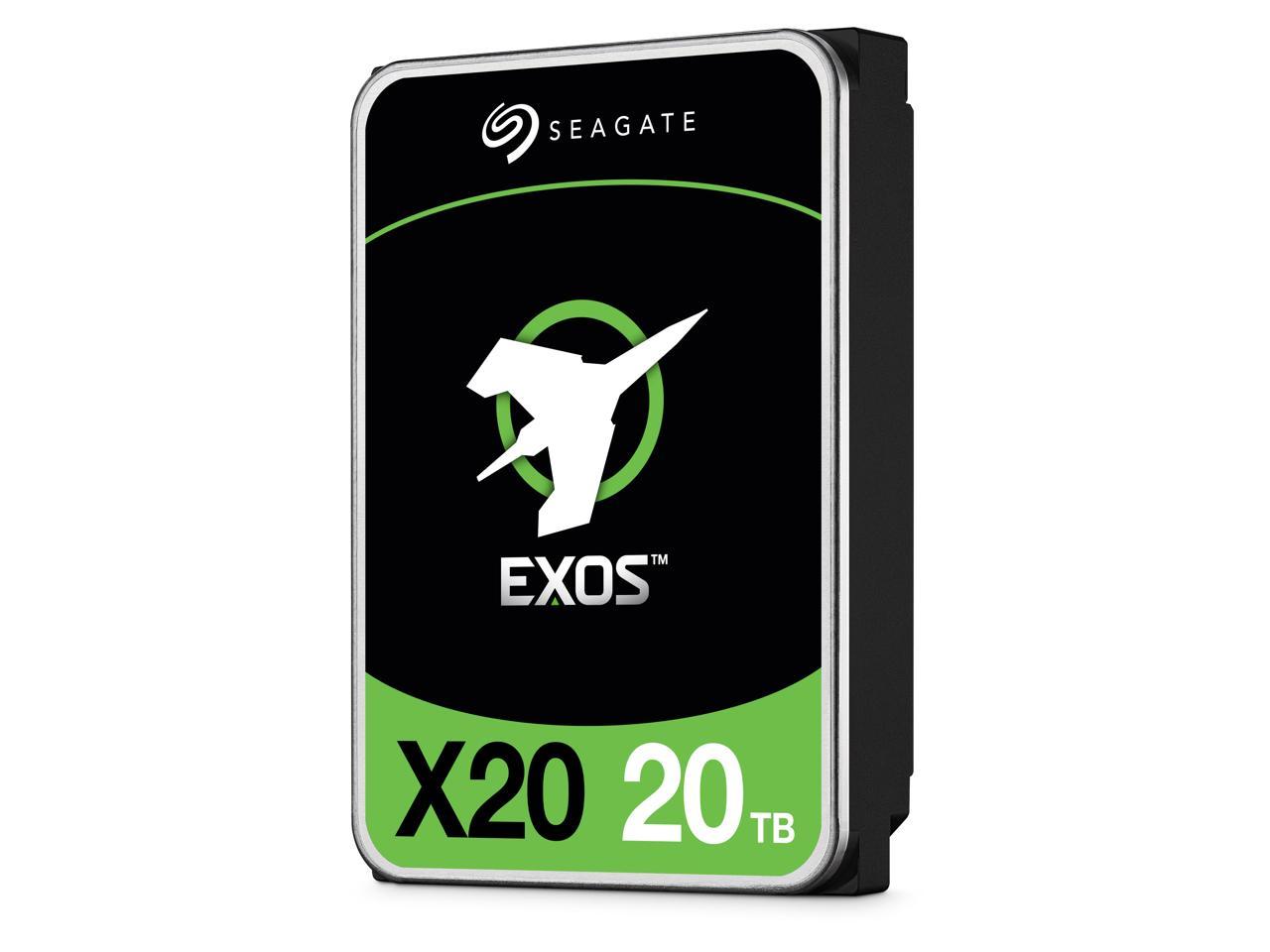

Seagate Exos X20 ST20000NM002D 20TB 7200 RPM 256MB Cache SAS 12Gb/s 3.5″ Internal Hard Drive

**Seagate Exos X20 ST20000NM002D 20TB 7200 RPM SAS 12Gb/s HDD**
A high-capacity enterprise-grade hard drive designed for data-intensive environments, offering **20TB storage** with **7200 RPM speed** and a **256MB cache** for rapid data access. Features a **12Gb/s SAS interface**, ensuring superior bandwidth, reliability, and compatibility with enterprise servers and storage systems. Built for 24/7 operation, it supports heavy workloads, RAID configurations, and advanced vibration protection for consistent performance. **Key benefits**: maximizes storage density, reduces downtime with enterprise durability, and accelerates data throughput for cloud, AI, and big data applications. **USP**: Combines industry-leading capacity, enterprise reliability, and SAS speed, ideal for scalable, high-demand infrastructure.

Quote50 pcs(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSeagate
Products StatusNew
ApplicationServer
InterfaceSAS 12Gb/s
Capacity20TB
Exos X20 20TB Hard Drive

Scalable. Responsive. Innovative.

Seagate Exos X hard drives help to enable some of the fastest data transfers possible. Designed to handle the most rigorous workloads with capacities up to 20TB, the Seagate Exos enterprise-class drives are perfect high-reliability solutions for private cloud, public cloud, and traditional IT. Whatever your applications, there’s an Exos drive for it.

Scalable. Responsive. Innovative.
  • High-performance enterprise hard drive: 20TB
  • Tuned for large data transfers and low latency
  • Ideal for private cloud, public cloud, and traditional IT
  • Offers greatest efficiencies and highest storage densities
  • Backed by limited 5-year warranty

High Performance Without Compromises

Customizable Power Options

PowerChoice and PowerBalance for optimized power consumption when in use and idle customizable to fit your needs.

Superior Reliability

Superior enterprise-class drive with a 550TB/year workload rating and 2.5M-hr MTBF can meet the most demanding storage requirements.

Amazing Performance

Advanced Write Caching coupled with up to 285MB/s data transfer rates provides a boost in performance without compromising capacity.

Scalable
  • Highest 20TB hard drive performance with enhanced caching, making it perfect for cloud data center and massive scale-out data center applications.
  • Maximize rack storage with fewer drives per rack and slot overhead per petabyte.
Responsive
  • Get up to 285MB/s data transfer rates for quick and reliable migration of massive amounts of data.
  • Digital environmental sensors to monitor internal drive conditions for optimal operation and performance.
Innovative
  • Next-generation helium side-sealing weld technology for added handling robustness and leak protection.
  • PowerBalance and PowerChoice features optimize Watts/TB to lower TCO.
Brand

Seagate

Products Status

New

Application

Server

Interface

SAS 12Gb/s

Capacity

20TB

Form Factor

3.5"

Cache

256MB

RPM

7200 RPM

Model

ST20000NM002D

Series

Exos X20

Height (maximum)

26.10mm

Length (maximum)

147.00mm

Width (maximum)

101.85mm

Average Latency

4.16ms

NAND Flash Memory Type

Hard Drive

Recording Technology

CMR
