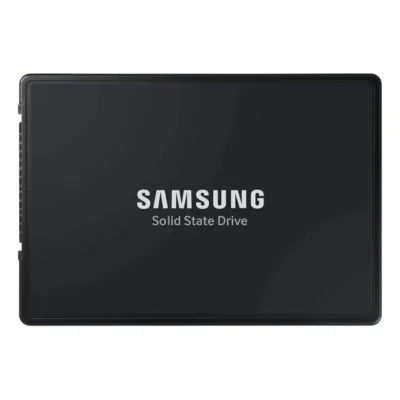

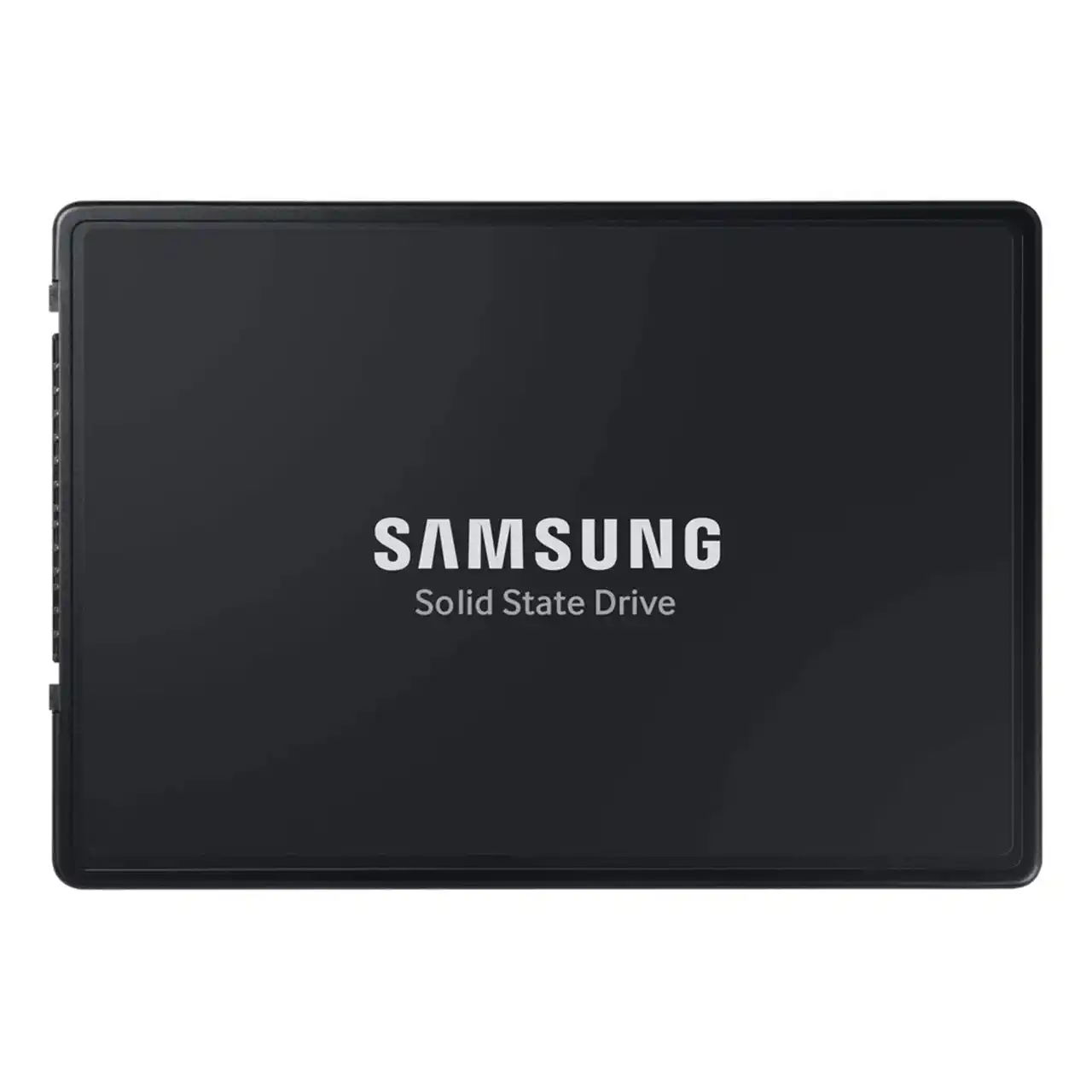

SAMSUNG PM9A3 2.5″ U.2 7.68TB PCIe 4.0 x4 NVMe 1.4 V-NAND TLC Enterprise Solid State Drive

The SAMSUNG PM9A3 is a high-performance enterprise SSD delivering exceptional storage capacity and speed for demanding data center applications. With 7.68TB of storage in a compact 2.5″ U.2 form factor, it utilizes cutting-edge PCIe 4.0 x4 interface and NVMe 1.4 protocol for maximum throughput and minimal latency. Built with Samsung’s advanced V-NAND TLC technology, this drive offers superior reliability, endurance, and power efficiency compared to traditional storage solutions. Key benefits include dramatically faster data access speeds, reduced server footprint through high-density storage, lower total cost of ownership, and enterprise-grade durability designed for 24/7 operations. The PM9A3 is ideal for virtualization, databases, analytics, and cloud computing environments where performance, capacity, and reliability are critical business requirements.

Quote5 pcs(MOQ)

Inquiry

Brand	SamSung
Capacity	7.68TB
Cache	Samsung Low Power SDRAM
Controller	Samsung Elpis Controller
Max Shock Resistance	1 500G & 0.5 ms (Half sine)

Description
Additional information

2.5″ U.2
V-NAND TLC
PCIe 4.0 x4 NVMe 1.4
7.68TB

Brand	SamSung
Capacity	7.68TB
Cache	Samsung Low Power SDRAM
Controller	Samsung Elpis Controller
Max Shock Resistance	1 500G & 0.5 ms (Half sine)
Products Status	New
Application	Server
Series	Samsung PM9A3
Interface	PCIe 4.0 x4 NVMe 1.4
Max Sequential Write	Up to 4000 MB/s
Features	14 016 TBW
Max Sequential Read	Up to 6700 MB/s
Power Consumption (Idle)	3.5W
4KB Random Write	Up to 200 000 IOPS
MTBF	2 000 000 hours
Model	MZ-QL27T600
Endurance	1 DWPD
Operating Temperature	0C ~ +70C
Power Consumption (Active)	Read/Write: 11.0W / 13.5W
Weight	90.00 g
Form Factor	2.5" U.2
Memory Components	V-NAND TLC
4KB Random Read	Up to 1 100 000 IOPS
