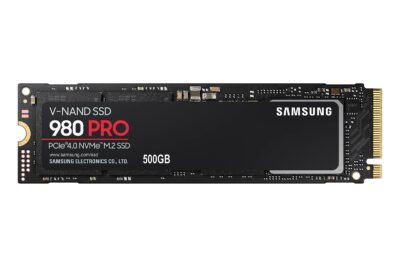

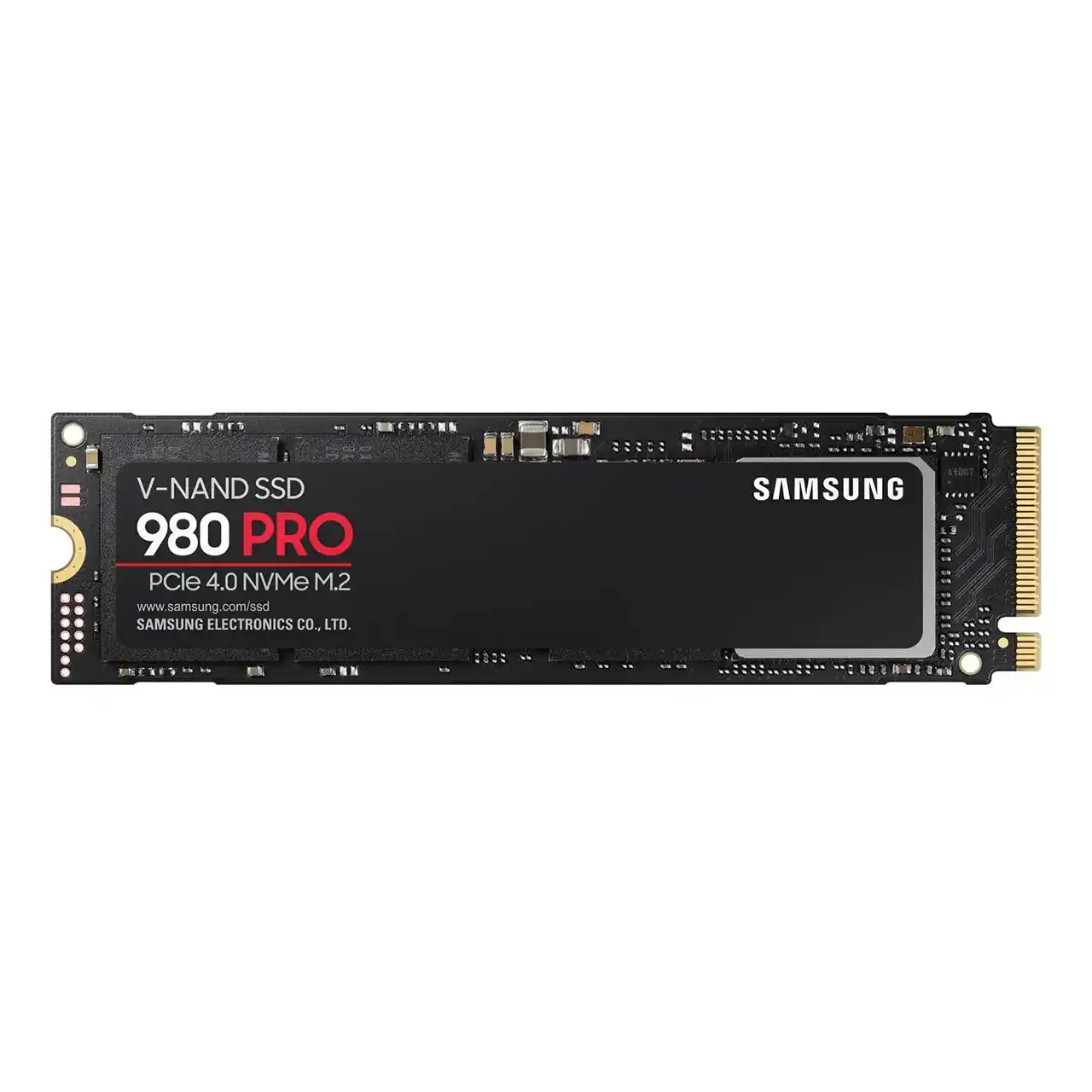

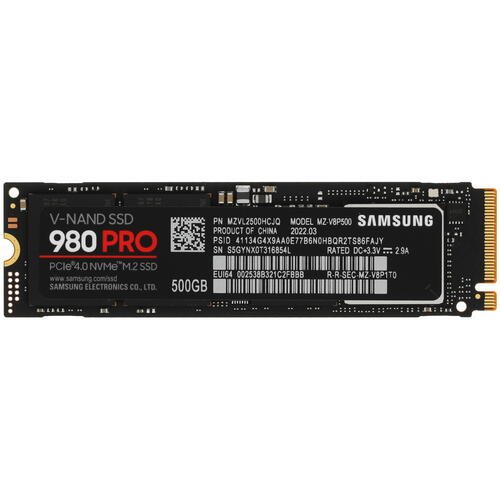

SAMSUNG 980 PRO M.2 2280 500GB PCI-Express Gen 4.0 x4, NVMe 1.3c V-NAND 3-bit MLC Internal Solid State Drive (SSD) MZ-V8P500BW

Height

2.38mm

Width

22.15mm

Used For

Consumer

Device Type

Internal Solid State Drive (SSD)

Brand

SamSung

SSD 980 PRO: very high performance PCIe 4.0 SSD

Samsung’s 980 PRO 500GB SSD helps transform the performance and responsiveness of your machine. Boasting stratospheric speeds and very high endurance, the Samsung 980 PRO in M.2 2280 form factor is based on the PCI-E 4.0 x4 interface as well as NVMe 1.3c technology. It is also equipped with a Samsung V-NAND 3-bit MLC memory , a Samsung Elpis controller and 512 MB of LPDDR4 cache memory.

The Samsung 980 PRO M.2 PCIe 4.0 4x NVMe 1.3cDesigned primarily for hardcore gamers and the most demanding techies, the 980 PRO delivers both high-performance bandwidth and throughput for heavy-duty gaming, computer graphics, data analysis, and more Again. Games load super fast so you can play more and wait less.

ACCESS EXCEPTIONAL PERFORMANCE

Bring your gear into a new era with the power of the Samsung 980 PRO NVMe PCIe 4.0 SSD. The 980 PRO makes maximum use of the PCIe 4.0 interface by doubling the data transfer rate of PCIe 3.0, while remaining backward compatible with the latter.

The 980 PRO has been optimized for speed thanks to its Samsung Elpis controller, specially designed for PCIe 4.0. You will be able to reach read speeds of 7000 MB/s (depending on the model)

PRECISE THERMAL CONTROL

SSDs delivering very high performance require extremely precise thermal control. In order to ensure the most stable performance, the 980 PRO is equipped with a controller protected by nickel to allow it to maintain a stable temperature, and a heat sink which will protect the NAND chip from all temperature variations.

Samsung has equipped the 980 PRO with an advanced algorithm so that the SSD itself can manage its temperature peaks and therefore ensure stable performance. To minimize long-term speed variations, Samsung’s Dynamic Thermal Guard technology keeps the 980 PRO’s temperature at an optimal level.

SAMSUNG MAGICIAN

Access the true power of the 980 PRO thanks to the Samsung Magician software and its intuitive tools: monitor the state of the disk, optimize its performance, protect your important data, and receive all the updates to always benefit from the best possible performance with your SSD.

Height	2.38mm
Width	22.15mm
Used For	Consumer
Device Type	Internal Solid State Drive (SSD)
Brand	SamSung
Capacity	500GB
Cache	512MB
Controller	Samsung Elpis
Max Shock Resistance	1500G
Products Status	New
Depth	80.15mm
Application	Desktop
Series	Samsung 980 PRO
Interface	PCIe 4.0 x4 NVMe 1.3c
Max Sequential Write	Up to 5000 MB/s
Features	A winning combination, Efficient M.2 SSD, Maximum Speed, Next-level SSD performance, Reliability (TBW): 300TBW, Reliable thermal control, Samsung Magician software, Smart thermal solution, Unleash the power of the Samsung 980 PRO PCIe 4.0 NVMe SSD for next-level computing. 980 PRO delivers 2x the data transfer rate of PCIe 3.0 while maintaining compatibility with PCIe 3.0.
Max Sequential Read	Up to 6900 MB/s
Power Consumption (Idle)	Max. 35 mW
4KB Random Write	QD1: Up to 60 000 IOPS, QD32: Up to 1 000 000 IOPS
MTBF	1 500 000 hours
Model	MZ-V8P500BW
Operating Temperature	0C ~ +70C
Power Consumption (Active)	Average: 5.9W, Maximum: 7.4W (Burst mode)
Weight	9.00g
Form Factor	M.2 2280
Memory Components	V-NAND 3-bit MLC
4KB Random Read	QD1: Up to 22 000 IOPS, QD32: Up to 800 000 IOPS
