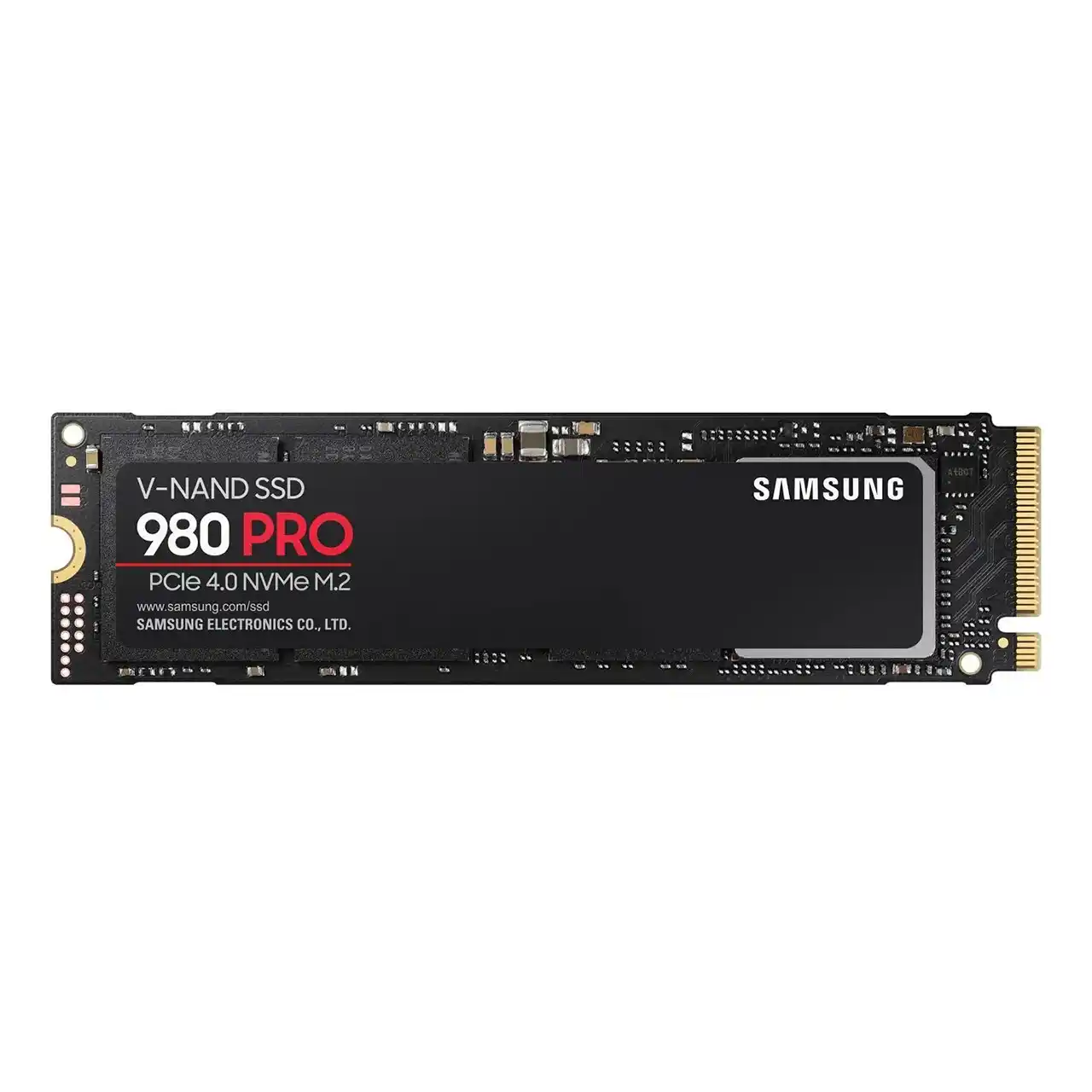

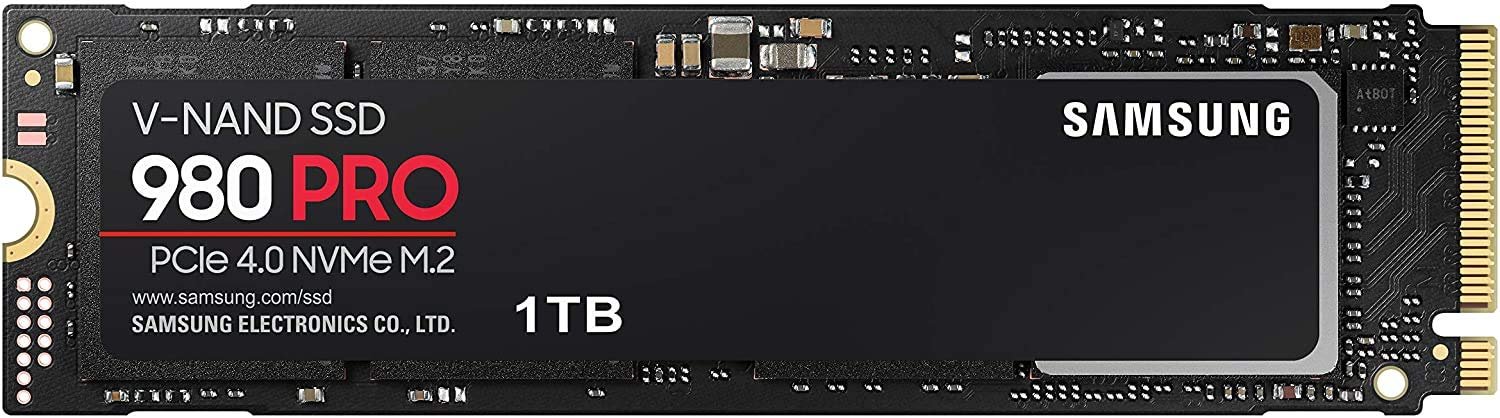

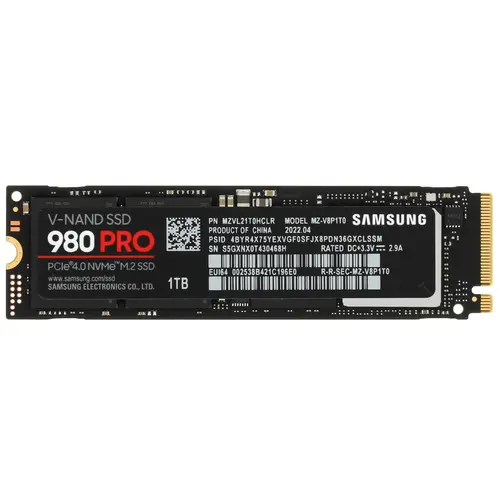

SAMSUNG 980 PRO M.2 2280 1TB PCI-Express Gen 4.0 x4, NVMe 1.3c Samsung V-NAND 3-bit MLC Internal Solid State Drive (SSD) MZ-V8P1T0BW

SamSung 980PRO 1TB M.2 2280 NVMe PCIe 4.0 x4 MZ-V8P1T0BW

Quote5 pcs(MOQ)

Height2.38mm
Width22.15mm
Used ForConsumer
Device TypeInternal Solid State Drive (SSD)
BrandSamSung

SSD 980 PRO: very high performance PCIe 4.0 SSD

Samsung’s 980 PRO 1TB SSD helps transform the performance and responsiveness of your machine. Boasting stratospheric speeds and very high endurance, the Samsung 980 PRO in M.2 2280 form factor is based on the PCI-E 4.0 x4 interface as well as NVMe 1.3c technology. It is also equipped with a Samsung V-NAND 3-bit MLC memory , a Samsung Elpis controller and 1 GB of LPDDR4 cache memory.

The Samsung 980 PRO M.2 PCIe 4.0 4x NVMe 1.3cDesigned primarily for hardcore gamers and the most demanding techies, the 980 PRO delivers both high-performance bandwidth and throughput for heavy-duty gaming, computer graphics, data analysis, and more Again. Games load super fast so you can play more and wait less.

ACCESS EXCEPTIONAL PERFORMANCE

Bring your gear into a new era with the power of the Samsung 980 PRO NVMe PCIe 4.0 SSD.  The 980 PRO makes maximum use of the PCIe 4.0 interface by doubling the data transfer rate of PCIe 3.0, while remaining backward compatible with the latter.

The 980 PRO has been optimized for speed thanks to its Samsung Elpis controller, specially designed for PCIe 4.0.  You will be able to reach read speeds of 7000 MB/s (depending on the model)

PRECISE THERMAL CONTROL

SSDs delivering very high performance require extremely precise thermal control.  In order to ensure the most stable performance, the 980 PRO is equipped with a controller protected by nickel to allow it to maintain a stable temperature, and a heat sink which will protect the NAND chip from all temperature variations.

Samsung has equipped the 980 PRO with an advanced algorithm so that the SSD itself can manage its temperature peaks and therefore ensure stable performance.  To minimize long-term speed variations, Samsung’s Dynamic Thermal Guard technology keeps the 980 PRO’s temperature at an optimal level.

SAMSUNG MAGICIAN

Access the true power of the 980 PRO thanks to the Samsung Magician software and its intuitive tools: monitor the state of the disk, optimize its performance, protect your important data, and receive all the updates to always benefit from the best possible performance with your SSD.

Height

2.38mm

Width

22.15mm

Used For

Consumer

Device Type

Internal Solid State Drive (SSD)

Brand

SamSung

Capacity

1TB

Cache

Samsung 1GB Low Power DDR4 SDRAM

Controller

Samsung Elpis Controller

Max Shock Resistance

1500G

Products Status

New

Depth

80.15mm

Application

Desktop

Series

Samsung 980 PRO

Interface

PCIe 4.0 x4 NVMe 1.3c

Max Sequential Write

Up to 5000 MB/s

Features

Reliability (TBW): 600TBW

Max Sequential Read

Up to 7000 MB/s

4KB Random Write

QD1: Up to 60 000 IOPS, QD32: Up to 1 000 000 IOPS

MTBF

1 500 000 hours

Model

MZ-V8P1T0BW

Operating Temperature

0C ~ +70C

Weight

9.00g

Form Factor

M.2 2280

Memory Components

Samsung V-NAND 3-bit MLC

4KB Random Read

QD1: Up to 22 000 IOPS, QD32: Up to 1 000 000 IOPS
