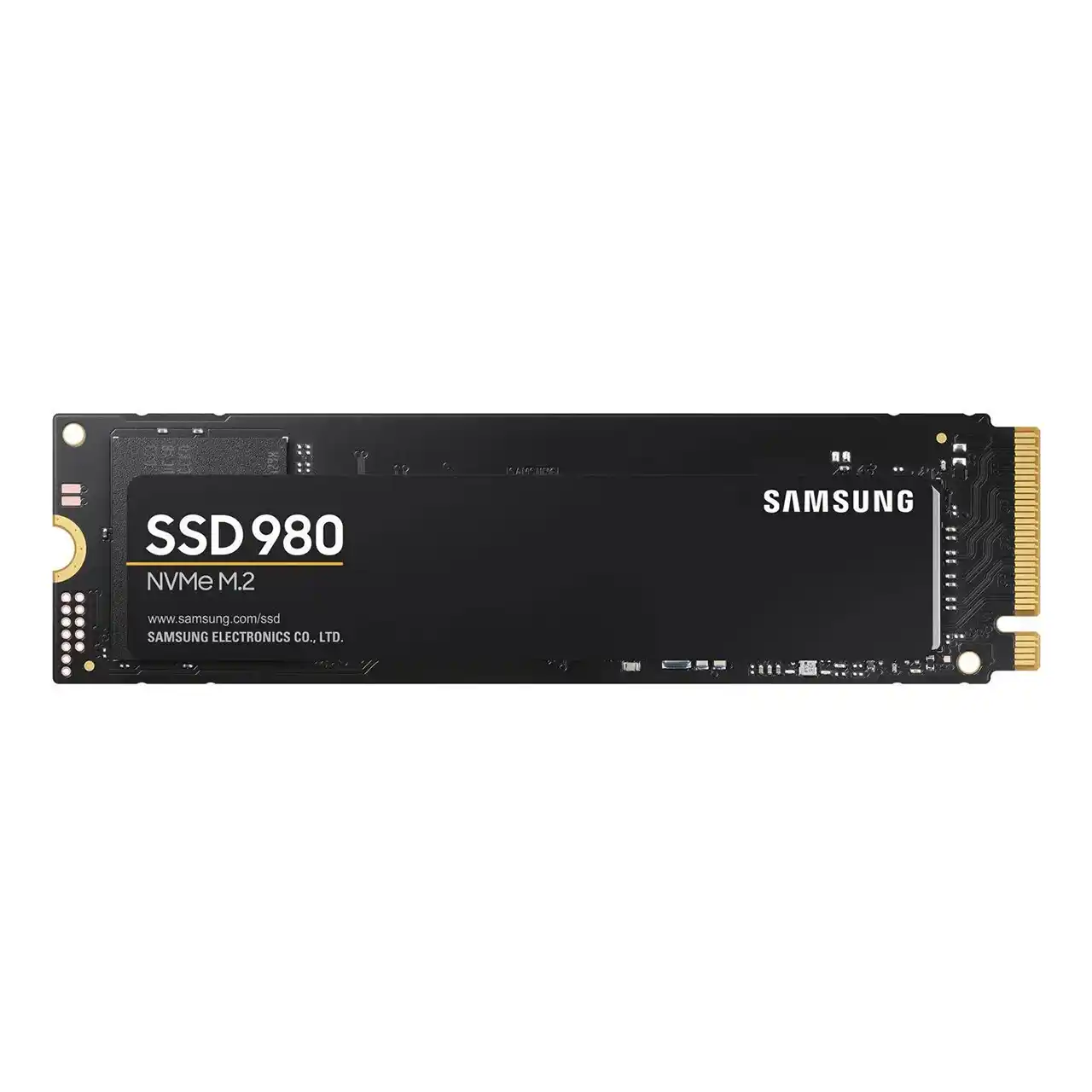

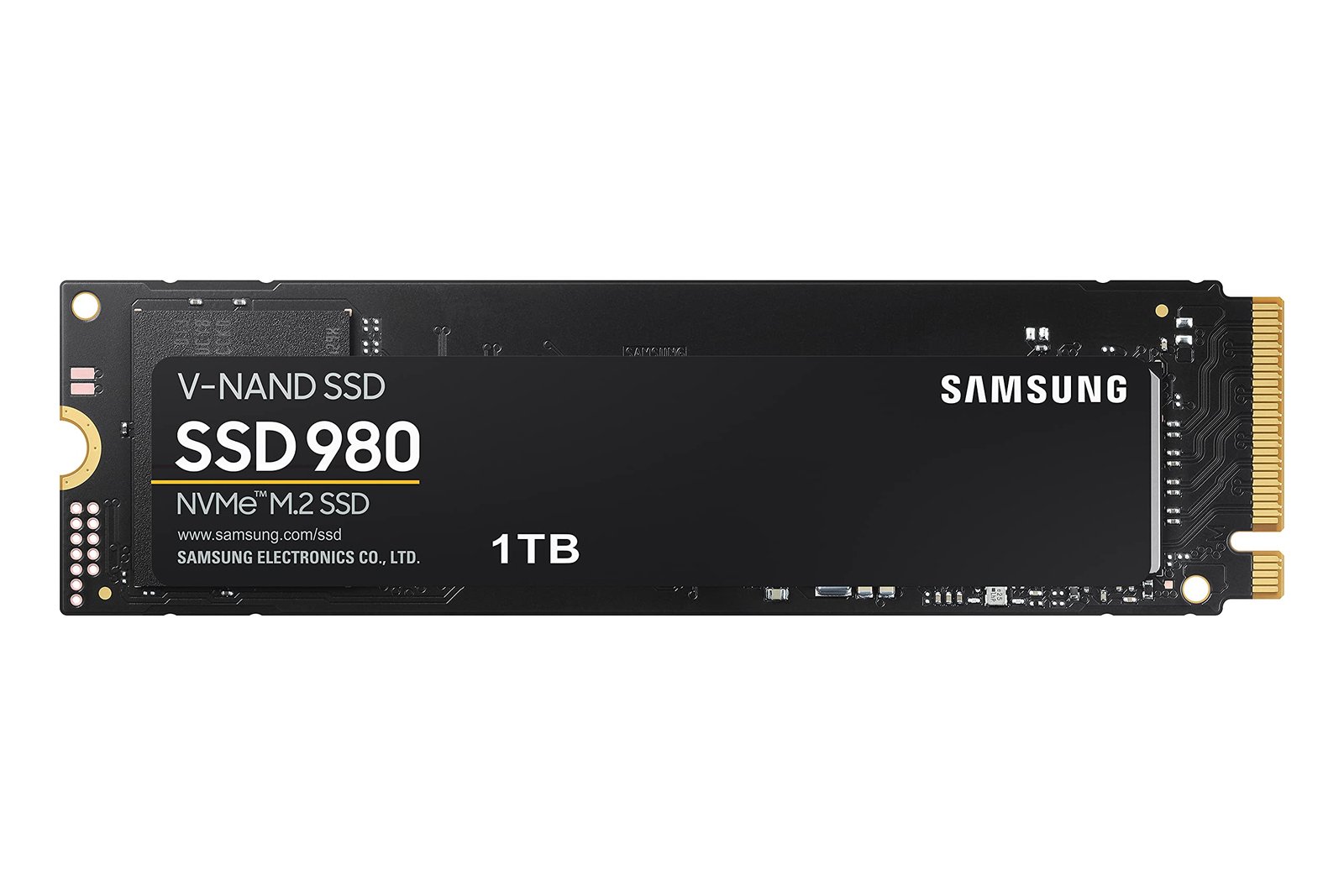

SAMSUNG 980 M.2 2280 1TB PCI-Express 3.0 x4, NVMe 1.4 V-NAND 3-bit MLC Internal Solid State Drive (SSD) MZ-V8V1T0BW

SamSung 980 1TB M.2 2280 NVMe PCIe 4.0 x4 MZ-V8V1T0BW

Quote5 pcs(MOQ)

Height2.38mm
Width22.15mm
Used ForConsumer
Device TypeInternal Solid State Drive (SSD)
BrandSamSung

SSD 980 PRO: very high performance PCIe 4.0 SSD

Samsung’s 980 PRO 1TB SSD  helps  transform the performance and responsiveness of your machine.  Boasting stratospheric speeds and very high endurance, the Samsung 980 PRO in M.2 2280 form factor is based on the PCI-E 4.0 x4 interface as well as NVMe 1.3c technology.  It is also equipped with a  Samsung V-NAND 3-bit MLC memory  , a Samsung Elpis controller and 1 GB of LPDDR4 cache memory.

The  Samsung 980 PRO M.2 PCIe 4.0 4x NVMe 1.3c Designed primarily for hardcore gamers and the most demanding techies, the 980 PRO delivers both high-performance bandwidth and throughput for heavy-duty gaming, computer graphics, data analysis, and more Again.  Games load super fast so you can play more and wait less.

ACCESS EXCEPTIONAL PERFORMANCE

Bring your gear into a new era with the power of the Samsung 980 PRO NVMe PCIe 4.0 SSD.  The 980 PRO makes maximum use of the PCIe 4.0 interface by doubling the data transfer rate of PCIe 3.0, while remaining backward compatible with the latter.

The 980 PRO has been optimized for speed thanks to its Samsung Elpis controller, specially designed for PCIe 4.0.  You will be able to reach read speeds of 7000 MB/s (depending on the model)

PRECISE THERMAL CONTROL

SSDs delivering very high performance require extremely precise thermal control.  In order to ensure the most stable performance, the 980 PRO is equipped with a controller protected by nickel to allow it to maintain a stable temperature, and a heat sink which will protect the NAND chip from all temperature variations.

Samsung has equipped the 980 PRO with an advanced algorithm so that the SSD itself can manage its temperature peaks and therefore ensure stable performance.  To minimize long-term speed variations, Samsung’s Dynamic Thermal Guard technology keeps the 980 PRO’s temperature at an optimal level.

SAMSUNG MAGICIAN

Access the true power of the 980 PRO thanks to the Samsung Magician software and its intuitive tools: monitor the state of the disk, optimize its performance, protect your important data, and receive all the updates to always benefit from the best possible performance with your SSD.

Height

2.38mm

Width

22.15mm

Used For

Consumer

Device Type

Internal Solid State Drive (SSD)

Brand

SamSung

Capacity

1TB

Controller

Pablo

Max Shock Resistance

1 500G & 0.5 ms (Half sine)

Products Status

New

Depth

80.15mm

Application

Desktop

Series

Samsung 980

Interface

PCIe 3.0 x4 NVMe 1.4

Max Sequential Write

Up to 3000 MB/s

Features

600 TBW, Device Sleep Mode Support: Yes, Encryption Support: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive), GC (Garbage Collection): Auto Garbage Collection Algorithm, S.M.A.R.T Support: Supported, TRIM Support: Supported

Max Sequential Read

Up to 3500 MB/s

Power Consumption (Idle)

45 mW

4KB Random Write

QD1: 54 000 IOPS, QD32: 480 000 IOPS

MTBF

1 500 000 hours

Model

MZ-V8V1T0BW

Operating Temperature

0C ~ +70C

Power Consumption (Active)

Average: 4.6W, Maximum: 5.3W (Burst mode)

Weight

8.00g

Form Factor

M.2 2280

Memory Components

V-NAND 3-bit MLC

4KB Random Read

QD1: 17 000 IOPS, QD32: 500 000 IOPS
