| Brand | Huawei |
|---|---|
| Model | S5735-L48P4X-A1 |
| Products Status | New |
| Switching Capacity | 4Gbps |
| Dimensions | 3.54" x 21.65" x 14.17" |
| Flash | 512MB |
| Availability | >0.99999 |
| RTC | Not supported |
| Memory | 512MB |
| Console port | RJ45 |
| Redundant power supply | Not supported |
| USB | Supported |
| Input voltage range [V] | AC"put: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC"put: 190 V DC to 290 V DC |
| Rated"put voltage [V] | AC"put: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC"put: 240 V DC |
| Maximum power consumption [W] | NotprovidingthePoEfunction:76.1W,100%PoEloads:456.1W(PoE:380W) |
| Maximum"put current [A] | 6 A |
| Eth Management port | Not supported |
| RPS"put | Not supported |
| Number of power slots | 0 |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Airflow direction | Air"take from left and front, air exhaustion from right |
| Static power consumption [W] | 35.3W |
| Types of fans | Built-in |
| Typical power consumption [W] | 58.7W |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 38.2 dB(A) |
| Weight without packaging [kg(lb)] | 3.23 kg (7.12 lb) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Service port surge protection [kV] | Common mode: 7 kV |
| Maximum heat dissipation [BTU/hour] | Not providing the PoE function: 259.66, 100% PoE loads: 1556.26 |
| Typical heat dissipation [BTU/hour] | 200.29 BTU/hour |
| Power supply surge protection [kV] | 6 kV" differential mode, 6 kV" common mode |
| Weight with packaging [kg(lb)] | 4.28 kg (9.44 lb) |
| Long-term operating temperature [C(F)] | -5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature [C(F)] | -40C to +70C (-40F to +158F) |
| Noise at normal temperature (acoustic power) [dB(A)] | 50 dB(A) |
| Number of fans modules | 2 |
| Short-term operating temperature [C(F)] | -5C to +55C (23F to 131F) at an altitude of 0-1800 m (0-5906 ft.) |
| MTBF [years] | 44.03 years |
| Ingress protection level (dustproof/waterproof) | IP20 |
* NOTE: Image may not exactly match the product

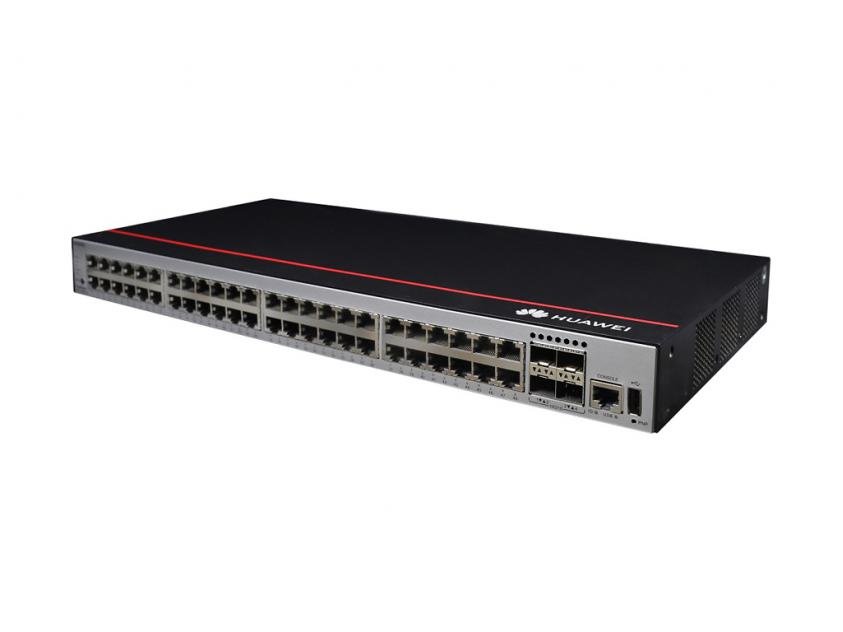

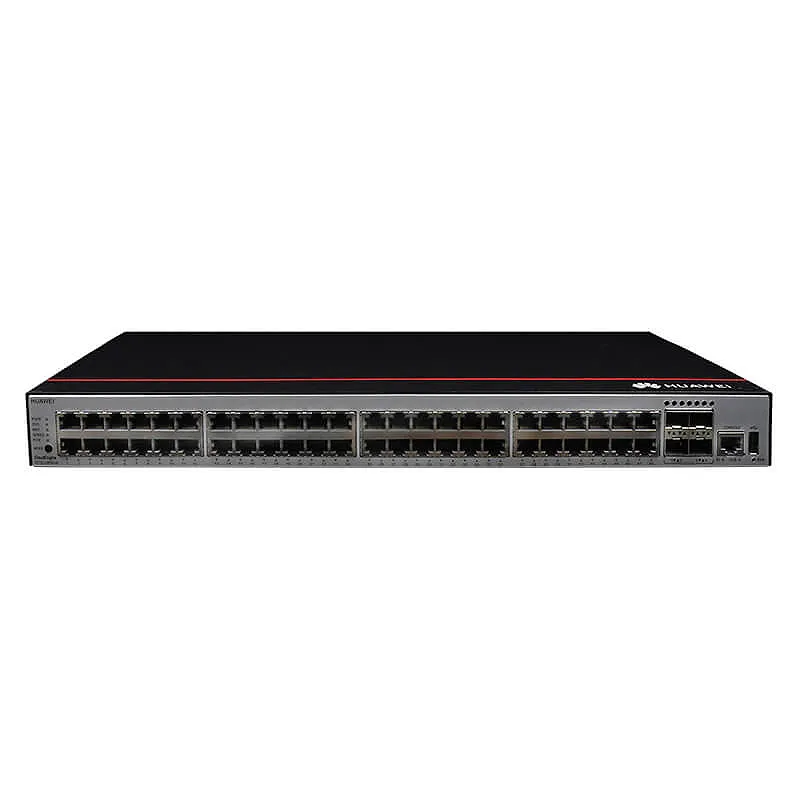

S5735-L48P4X-A1 (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, AC power)
The S5735-L48P4X-A1 is a high-performance enterprise switch delivering 48 Gigabit Ethernet ports with Power over Ethernet (PoE) capability and 4 high-speed 10GE SFP+ uplink ports. This versatile networking solution eliminates the need for separate power infrastructure by providing PoE to connected devices like IP phones, wireless access points, and security cameras directly through Ethernet cables. The four 10-Gigabit SFP+ ports ensure lightning-fast backbone connectivity and future-proof scalability for demanding network environments. With AC power supply and robust enterprise-grade construction, this switch offers exceptional port density, simplified deployment, reduced cabling costs, and reliable performance for medium to large business networks requiring both high-speed connectivity and integrated power delivery.
